Drying Equipment
$65000.00 /sets
Product Details
Transaction Comments
Basic Info
- Model NO.: HFVD-6-CH
- Flow: Hf Drying
- Material Status: Strap
- Tank Inside Diameter: 2100mm / 6.88′
- Timber Loading Size: 6000X1300X1300mm / 19.67′x 4.26′ X4.26′
- Tank Material: Stainless Steel Inside
- Power Supply: 3 Phase, 380V, 50Hz or Customized
- Hydraulic Press: Stainless Steel (on The Top)
- Trademark: CHANCS
- Specification: 10.14 cubic meter capacity
- HS Code: 8514400090
- Movement Way: Combined
- Heating Mode: Dielectric
- Operational Method: Intermittent
- Tank Inside Length: 6000mm / 19.67′
- Condiation: Brand New
- Machine Power: 50kw
- Feeding System: Auto Feeding (Included)
- Cooling System: Stainless Steel
- Transport Package: Plywood Packing+PE Film
- Origin: China
Product Description

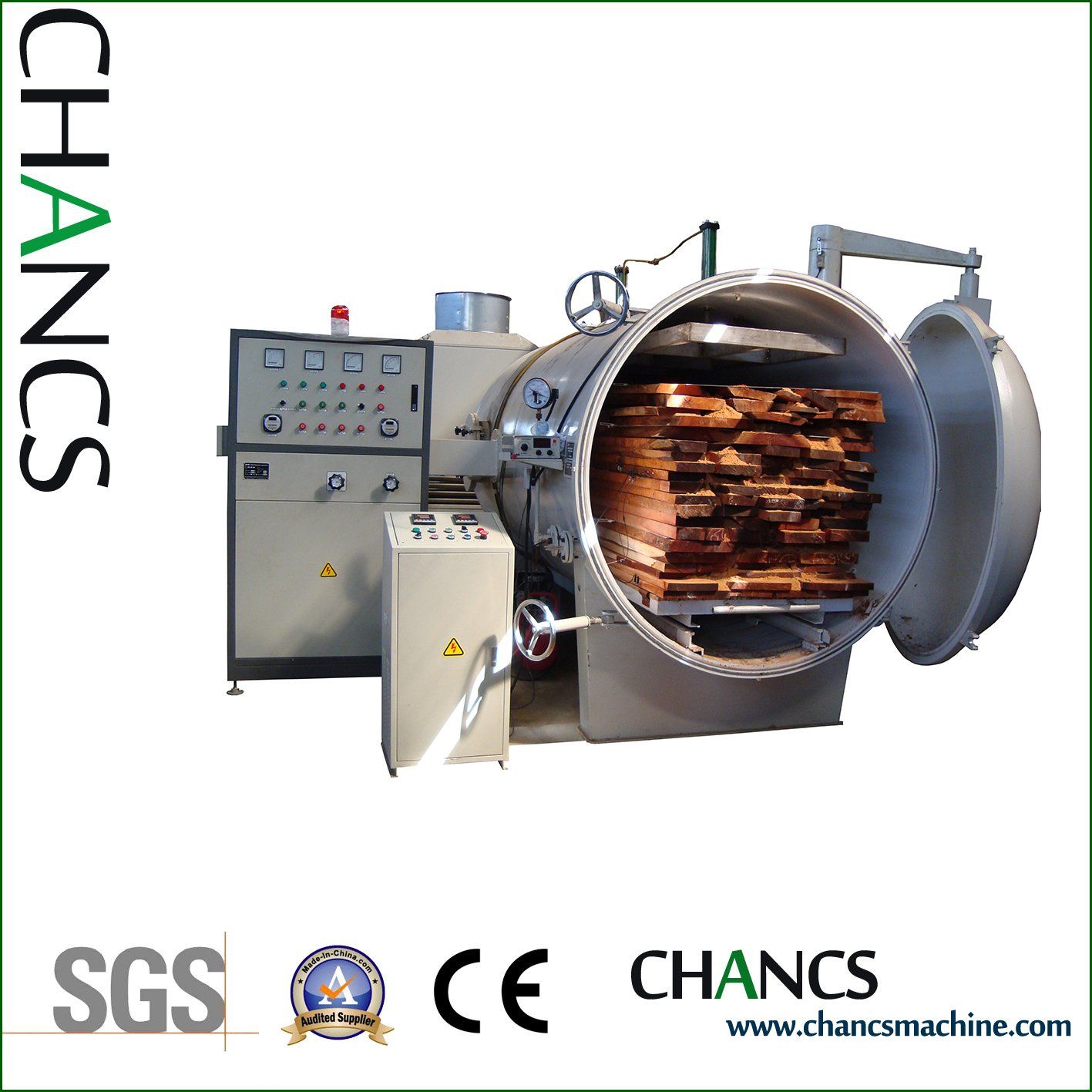

HF Vacuum Wood Dryer
Container loading and packing
1. Introduction:
HF vacuum wood dryer also named high frequency vacuum timber dryer. It is a kind of new timber drying equipment. Both HF dielectric heating and vacuum low temperature technology are applied to make sure drying speed and timber quality together.
2. Characters of HF vacuum timber dryer:
1).High frequency internal heating make sure timber drying quickly and evenly.
2).Vacuum system guarantee low temperature timber drying safely.
3).Machine only needs electricity (no boiler), no pollution.
4).HF power is the good killer for worm and bacteria in the timber.
5).Covering less space, less costs and convenient than conventional kiln dryer.
High frequency vacuum timber dryer is the best choice for hard wood (like oak), thick wood (like beam), expensive wood (like rosewood) and floor drying.
3. Specification:
3. Specification:
| Мodel | HFVD-3-CH | HFVD-6-CH | HFVD-10-CH | HFVD-14-CH | HFVD-20-CH |
| HF Power | 20KW------------80KW | ||||
| Capacity | 3 CBM | 6 CBM | 10 CBM | 14 CBM | 20 CBM |
| Wood loading size LxWxH |
3x1x1m | 6x1x1m | 6x1.3x1.3m | 8x1.3x1.38m | 8x1.6x1.6m |
| Wood feeding type | Auto | Auto | Auto | Auto | Auto |
| Vacuum pressure | -0.092MPa | ||||
| Weight | 4.5T | 6T | 8T | 11T | 15T |
| Dimension | 4x4x2.7m | 7x4x2.7m | 7x4.5x2.8m | 9x4.5x2.8m | 9x5.5x3.3m |
Container loading and packing
