Circular Saw
$2000.00 /piece
Product Details
Transaction Comments
Basic Info
- Model NO.: CH3000
- Power Type: Electric
- Controlling Mode: Electrical
- Precision: Normal Precision
- Condition: New
- Max Cutting Diameter: 300mm
- Spindle: Top+Bottom
- Feeding Type: Auto/Manual
- Trademark: CHANCS
- Specification: 3000mm long
- Type: Circular Saw
- Layout: Vertical
- Automatic Grade: Semiautomatic
- Customized: Customized
- Color: Customized
- Feeding Speed: Adjustable
- Saw Diameter: 405mm
- Power Supply: 3 Phase 380V, 50Hz
- Transport Package: PE Film
- Origin: China
Product Description

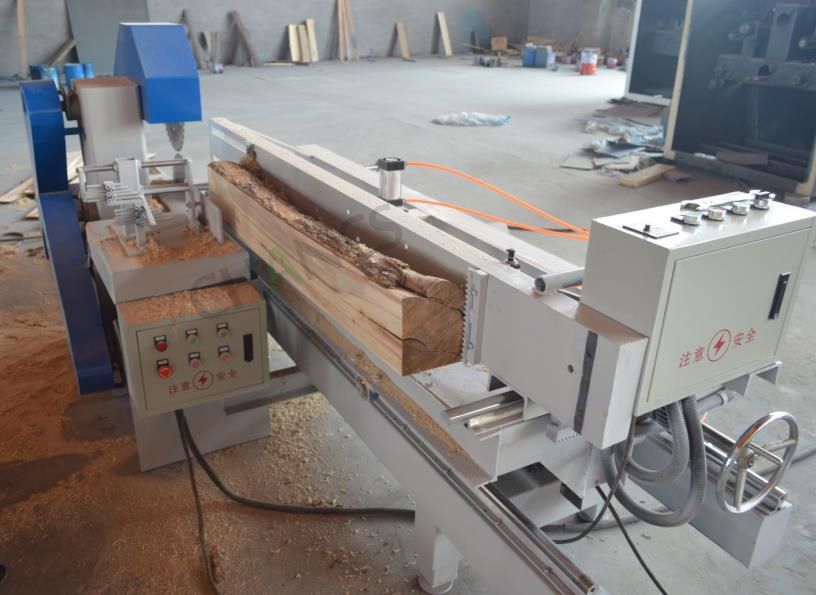

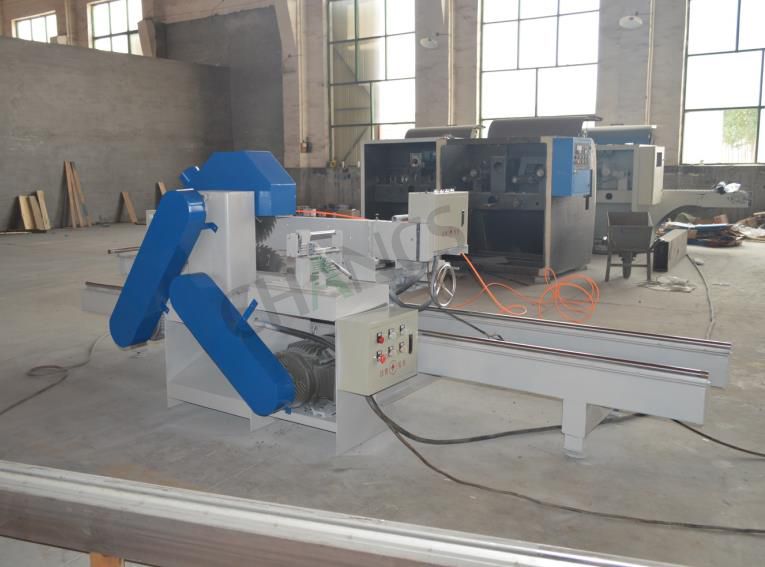

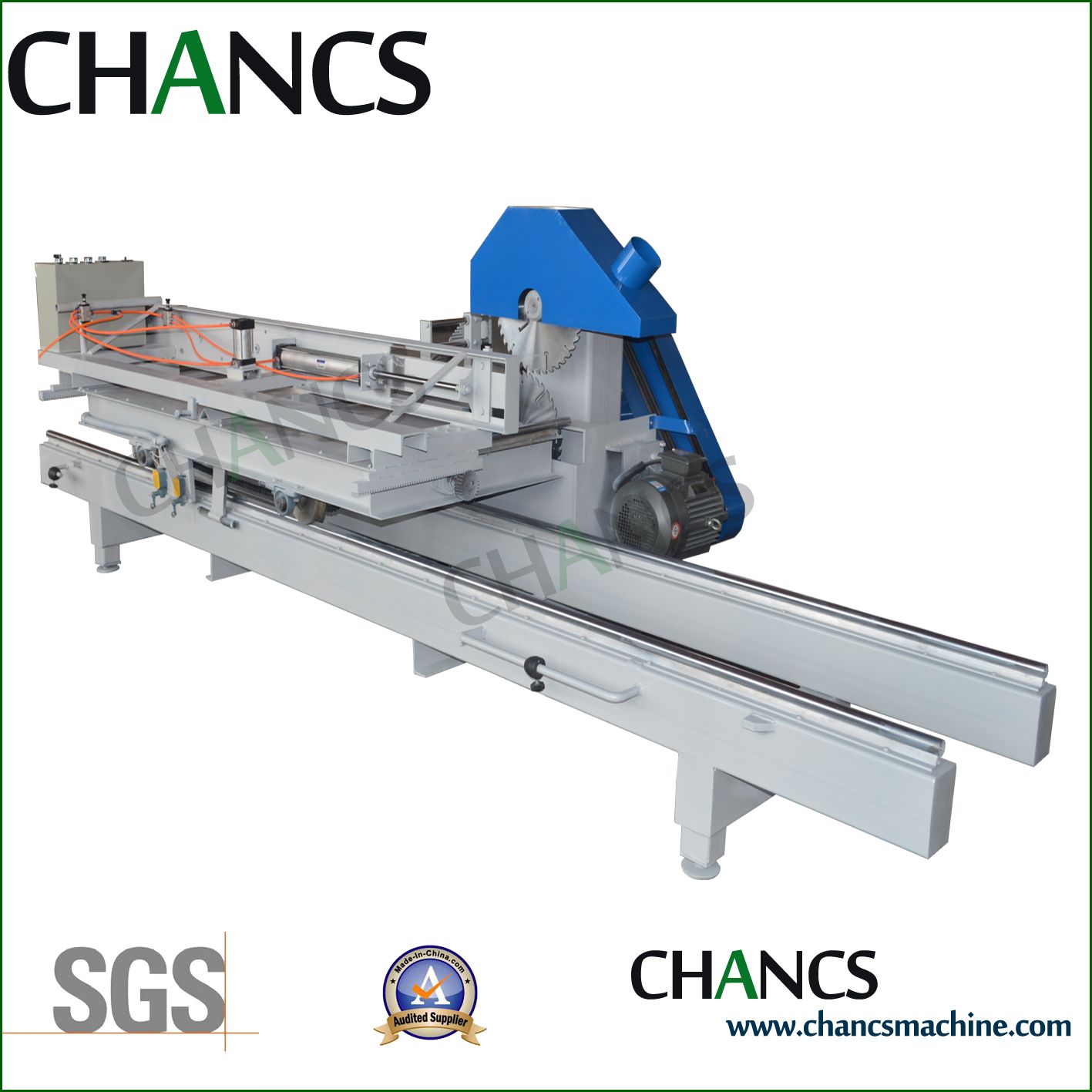

Log Sliding Table Saw is designed for small diameter logs cutting into planks. It is more flexiable, convenient and easier operating than band saw.
Sliding table saw can cut the logs uniformly and smoothly.There are types of models with different length (1m, 1.5m, 2m, 3m, 4m even more) and diameter(100-400mm).
Features:
1. It's efficiency is higher than band saw.
2.High precision. Machine equips round rod linear guide rail (Length way and width way) can make sure the precision and smooth cutting.
3. There is air lock to lock the logs in length and width. To make sure the smooth cutting in the working process.
4.Heavey duty design with thick square tube frame. Stable and durable.
5. English version button instruction. Simply and safely operating, there is no need special technician to operate. Easy to learn.
6. Log Saw equips Inverter, can adjust the feeding speed accordingly.
Specification
| Model | CH1000 | CH2000 | CH3000 | CH4000 |
| Max cutting diameter | 300mm | 300mm | 300mm | 400mm |
| Max cutting length | 1000mm | 2000mm | 3000mm | 4000mm |
| Saw blade diameter | 405mm | 405mm | 405mm | 455mm |
| Top saw power | 5.5KW | 7.5KW | 7.5KW | 11KW |
| Bottom saw power | 5.5KW | 7.5KW | 11KW | 15KW |
| Feeding type | Auto/Manual | Auto/Manual | Auto/Manual | Auto/Manual |
| Feeding speed | Adjustable | Adjustable | Adjustable | Adjustable |
| Log fasten type | Air pressure | Air pressure | Air pressure | Air pressure |
| Overall size | 2000*1500*1350 | 4000*1500*1350 | 6000*1500*1350 | 8000*1600*1600 |
| Total weight | 800kg | 1000kg | 1200kg | 1500kg |
1. CHANCS after-sale service
1. Engineers available to serve and train customers overseas.
2. Machine gurantee is one year.
3. 24 hours technical support by email, call and whatsapp.
4. English manual and PPT installation and operation file with pictures step by step.
5. Whole life technical support for CHANCS machinery.
2.FAQ
List some questions customers care about, if you have more quotations, please feel free to contact with us
1. Q:What's the MOQ?
R: One set will be ok.
2. Q:Provide customized machine Yes or NO?
R: Yes. We have professional designers and engineers to supply customized machines.
3. Q:What is payment terms?
R: 30%T/T in advance, the balance paid before shipment after insepction.
4. Q:What is warranty time?
R: One year.
1. Engineers available to serve and train customers overseas.
2. Machine gurantee is one year.
3. 24 hours technical support by email, call and whatsapp.
4. English manual and PPT installation and operation file with pictures step by step.
5. Whole life technical support for CHANCS machinery.
2.FAQ
List some questions customers care about, if you have more quotations, please feel free to contact with us
1. Q:What's the MOQ?
R: One set will be ok.
2. Q:Provide customized machine Yes or NO?
R: Yes. We have professional designers and engineers to supply customized machines.
3. Q:What is payment terms?
R: 30%T/T in advance, the balance paid before shipment after insepction.
4. Q:What is warranty time?
R: One year.
