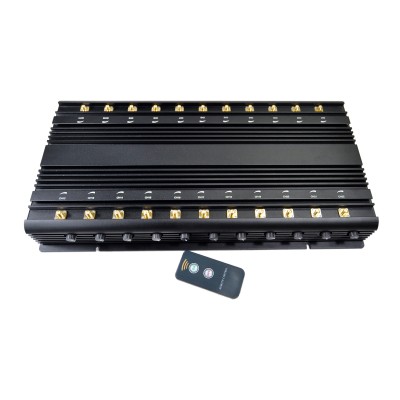

Product Description:
This is the latest 2019 designed with 22 Antennas all-in-one for mobile phone 5GLTE GSM 3G 4GLTE signals which bring us a strong jamming ability. And it can not only cut off all 5G 3G 4G mobile phone signals, but also jam Wi-Fi2.4G/5GHz GPS LOJACK, RF 315 MHz 433MHz , VHF UHF Walkie-Talkie & Wireless Headset/Microphone signals. All-in-one jammer is powerfull to blocks all the signals, The jamming radius up to 60meters
Basic Specifications:
Jam Signal Type:Full Bands Mobile Phone 5GLTE 4G/3G/2G +WiFi2.4G/5.8G+ GPSL1-L5 +Walkie-Talkie UHF/VHF+ Remote Control 433/315/868
Output Power：Total 45W，1-3W each band
Jam Radius：30-60meters
Power Supply：AC110 or 220V to DC12V
Cooling System：High efficiency aluminum alloy radiator, Build-in 5 cooling fan
Working Time：Not-stop Working
Product Size：450x 238x 60 mm（not Include Antenna）
Product Weight: appr.8kg

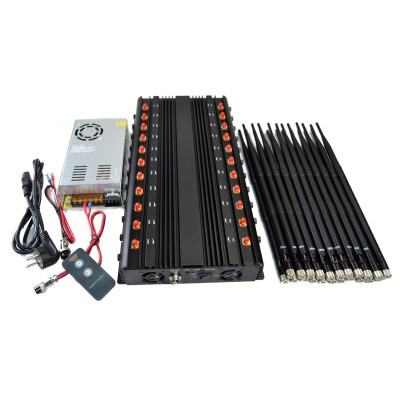

Package Contents：Jammer Host x 1, AC adapter x 1,antenna x22,Car storage battery cable x1, Infrared Remote Control x1
Advantages:
★High output power, Total up to: 45W , jamming up to 60m (Still depends on the strength signal in given area)
★External Omni-directional antennas all the TX frequency covered down link only
★With Car storage battery Charger DC12V can be used in car
★Built-in good cooling system inside, Working non-stopped
★Can adjust or turn off any single band without influencing the other bands operation
★2-5meters with Infrared Remote Control Turn ON /OFF Power
| Key Technical specifications : JAM-A22-EU&AU | |||
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | CDMA/RC868 | 850-894MHz | 35dbm / 3W |
| 2 | GSM | 925-960MHZ | 35dbm / 3W |
| 3 | DCS | 1805-1880MHZ | 33dbm / 2W |
| 4 | 3G | 2110-2170MHZ | 33dbm / 2W |
| 5 | 4G800 | 758-821MHZ | 35dbm / 3W |
| 6 | 4G2600 | 2570-2690MHZ | 30dbm / 1W |
| 7 | 4G2500 | 2500-2570MHZ | 30dbm / 1W |
| 8 | 4G2300 | 2300-2400MHZ | 30dbm / 1W |
| 9 | 5G 1500 | 1427-1518MHZ | 33dbm / 2W |
| 10 | 5G 3.4G | 3300-3600MHZ | 30dbm / 1W |
| 11 | 5G 3.8G | 3600-3900MHZ | 30dbm / 1W |
| 12 | 5G 4.0G | 3900-4200MHZ | 30dbm / 1W |
| 13 | WIFI 2.4G | 2400-2500MHZ | 30dbm / 1W |
| 14 | WIFI 5.2G | 4900-5500MHZ | 30dbm / 1W |
| 15 | WIFI 5.8G | 5500-5900MHZ | 30dbm / 1W |
| 16 | GPSL1 | 1570-1580Mhz | 33dbm / 2W |
| 17 | GPSL2+L5 | 1170-1280MHZ | 33dbm / 2W |
| 18 | GPSL3+L4 | 1370-1390MHZ | 33dbm / 2W |
| 19 | LOJACK | 167-175MHZ | 35dbm / 3W |
| 20 | VHF | 135-175Mhz | 35dbm / 3W |
| 21 | UHF/RC433 | 400-470MHZ | 35dbm / 3W |
| 22 | RC315 | 315MHZ | 35dbm / 3W |
| Power supply: AC adapter 50 to 60Hz, (110 or 220V AC-12V DC) Car storage battery Charger DC12V | |||
| Dimensions: (length ,width, height) 450x 238x 60mm（not Include Antenna） | |||
| Packing size: 55*44*15cm Net weight: 7kg Gross weight: 8.0kg | |||
|
Total power:42W Shielding radius: (20-60) meters At -75dBm Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters |
|||
| Warranty: one year from delivery date | |||
OEM Customized service:
Silkscreen OEM service can be offered
Applications:
o It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and morePlaces that require silence, confidentiality and information security
o For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
