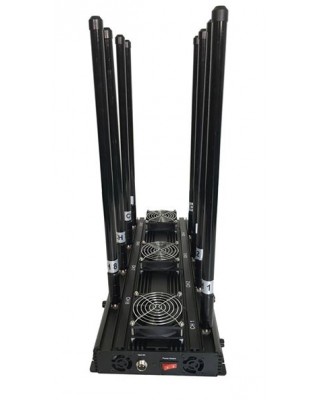

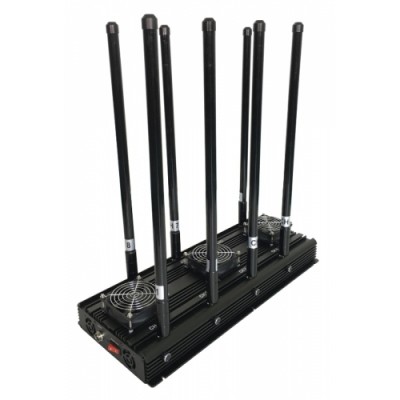

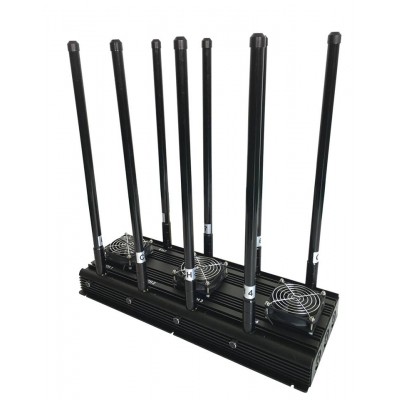

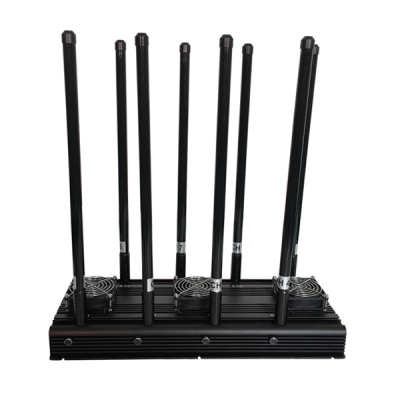

8 Bands UAV Drone Signal Jammer, Block RC2.4G 5.8GHz 433 315 868 916 MHz GPS&GLONASS L1L2 Jammer up to 500m
$1.00 /Piece
Product Details
Transaction Comments
One of the hot sell and high powerful UAV Drone jammer which are currently presented on the market. With 8 bands and 135W output power this blocker is able to disable all Cover 100% drones UAVs and Jamming range radius: 100-500 meters.
Advantages:
★Output power total 135w, You can choose high gain 5-7 dbi OMNI or Panel directional antennas, shielding 10-500m,Still depends on the strength signal in given area.★Each unit can jam up to 8 frequency bands simultaneously, each frequency band is separate and with adjustable power from max to off (0), LED indicator lights display power supply
★100% safe VSWR over protection (isolator) for each modular
★Good cooling system with Heat sink and 3 big on top fans + 4 x small inside, low noise, not-stop to work.
| Key Technical specifications : | |||
| Channel | Output Port | Frequency range | Average out-putting power |
| 1 | RC2.4G | 2400-2500MHz | 45dbm/30W |
| 2 | RC433 434 435 | 433 MHz | 41dbm/15W |
| 3 | RC315 312 | 315MHz | 41dbm/15W |
| 4 | GPSL1 and Glonass L1 | 1560-1620MHz | 40dbm/10W |
| 5 | GPSL2 | 1200-1280MHz | 44dbm/10W |
| 6 | GPSL5 | 1170-1200MHz | 40dbm/10W |
| 7 | RC868, 912 and 916 | 868-916MHz | 44dbm/25W |
| 8 | RC5.8G | 5725-5850MHz | 40dbm/10W |
| The below frequencies you can instead of above one to combined 8 bands | |||
|
Option |
WIFI5.2G | 5100-5500MHz | 40dbm/10W |
| Wi-Fi 5.8G | 5500-5580MHz | 40dbm/10W | |
| WiFi3.6G | 3500-3600MHz | 40dbm/10W | |
| CDMA&GSM | 850-960MHz | 44dbm/25W | |
| DCS&PCS | 1805-1990MHz | 41dbm/15W | |
| 3G | 2110-2170MHz | 41dbm/15W | |
| 4G LTE 2600 | 2500-2690 MHz | 40dbm/10W | |
| 4G LTE 700 or 800 | 725-826 MHz | 44dbm/25W | |
| Wi-Fi 2.4G+4G2300 | 2345-2500MHz | 40dbm/10W | |
| VHF | 130-174MHz | 44dbm/25W | |
| UHF | 400-470MHz | 44dbm/25W | |
| LOJACK& XM radio | 167-175MHz | 44dbm/25W | |
| UHF2 | 190-300MHz | 44dbm/25W | |
| UHF3 | 300-400MHz | 44dbm/25W | |
| 4G1 LTE 1700 | 1710-1780MHz | 41dbm/15W | |
| Power supply: AC adapter 50 to 60Hz, (AC110 or 240V-DC27V) | |||
| Dimension: (length, width, height ) 550*230*60mm(Not include antenna) | |||
|
Package size: 600 x 350 x 95mm N.W: 6kg G.W:6Kg + 8kg antennas =10kg Working temperature: -30~60℃ |
|||
|
Total power:135W Shielding radius: (100-500) meters at -75dBm Still depends on the strength signal in given area Shielding radius of VHF/UHF signal should be lesser than cell phone signal |
|||
| Warranty: one year from delivery date | |||

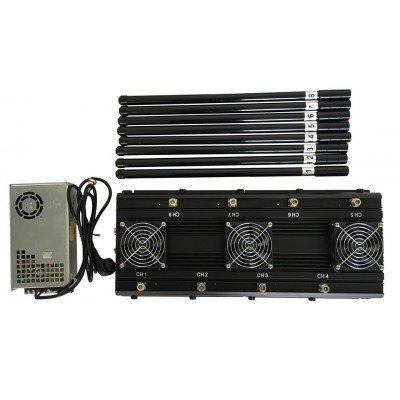

Package contents:
1pc desktop jammer
1pc AC 110 or 220V DC 12V or 27V 20A power supplier
8pcs antennas omni 500mm long
Additional options:
- Directional external patch panel antennas
- Omni car magnetic antenna bases
- External battery that can work 1 hour (24V/20AH LiFePo4) + charger
- DC 12V to AC 220V inverter 2000W, to use normal car battery DC 12/80-100AH
OEM customized service:
All 8 Frequency modules we can mix very flexible
Options: Remote/alarm control 315MHz, 433MHz, 920-965MHz, GPS L1 L2 L3 L4 L5, LoJack 173MHz, 4G 700-800MHz (USA), UHF, VHF, SAT satellite phones 1520-1670MHz and more. Any combinations and customizations are possible, just send us your inquiry and we will give you our recommendation.
Applications:
Device can be used to block the UAV Drone signal in the churches, museums, movie theatres or during the important conference in a meeting room to avoid the leakage of secure information, in classrooms during the exams, courts, hospitals, banks, recording studios or other crowded places where the usage of mobile phone is prohibited.
