Product Description:
This is the first ever jammer with the ability to jam more advanced WIFI frequencies working on 5GHz spectrum. The 5GHz band operates at three standards: 802.11ac, 802.11a and 802.11n. 5GHz band becoming more and more popular nowadays because it can provide you with the faster rates, fewer disconnects and more enjoyable experience. Another advantage of 5GHz signals may be able to get into places that 2.4GHz couldn’t reach because of the size of their waveforms.
Basic Specifications:
Jam Signal Type：
1: Full Bands Mobile Phone 4G/3G/2G +WiFi2.4G/5GHz
Output Power：Total 18W，1-3W each band
Jam Radius：20-40meters
Power Supply：AC110-240V to DC12V
Cooling System：High efficiency aluminum alloy radiator, Build-in 3 cooling fan
Working Time：Not-stop Working
Product Size：370x 140x51 mm（not Include Antenna）
Product Weight: appr.3.5kg

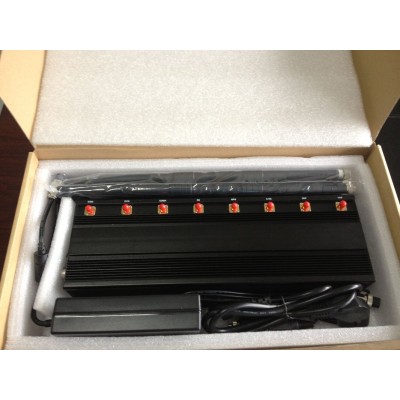

Package Contents：Jammer Host x 1, AC adapter x 1,antenna x8,Car storage battery cable x1
Advantages:
★High output power, Total up to: 18W , jamming up to 40m (Still depends on the strength signal in given area)
★With Car storage battery Charger DC12V can be used in car
★External Omni-directional antennas all the TX frequency covered down link only
★Built-in good cooling system inside three fans, Working non-stopped

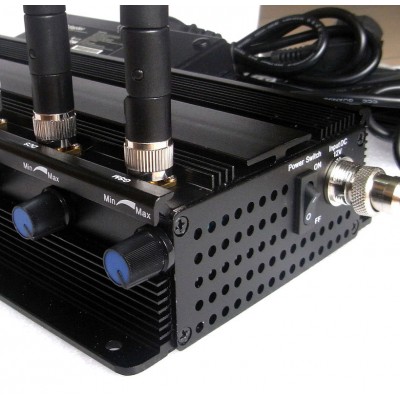

★Can adjust or turn off any single band without influencing the other bands operation
| Key Technical specifications : JAM-880-5G | |||
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | CDMA or GSM | 851-894 or 925-960MHz | 35dBm/3W |
| 2 | DCS or PCS | 1805-1880 or 1920-1990MHz | 33dBm/2W |
| 3 | 3G | 2110-2170MHz | 33dBm/2W |
| 4 | 4G1 LTE | 700-803 or 790-862MHz | 35dBm/3W |
| 5 | 4G Wimax | 2500-2690 or 2300-2400MHz | 30dBm/1W |
| 6 | Wi-Fi 2.4G+4G2300 | 2300-2500MHz | 30dbm / 1W |
| 7 | WIFI5.2G | 5100-5500 MHz | 30dbm / 1W |
| 8 | WIFI 5.8G | 5500-5900 MHz | 30dbm / 1W |
| Power supply: AC adapter 50 to 60Hz, (110-240V AC-12V DC) Car storage battery Charger DC12V | |||
| Dimensions: (length ,width, height) 370x 140x 51mm（not Include Antenna） | |||
| Packing size: 47*27*13cm Net weight: 3kg Gross weight: 3.5kg | |||
|
Total power:14W Shielding radius: (20-40) meters At -75dBm Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters |
|||
| Warranty: one year from delivery date | |||
OEM Customized service
Silkscreen OEM service can be offered
Applications:
o It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and morePlaces that require silence, confidentiality and information security
o For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
