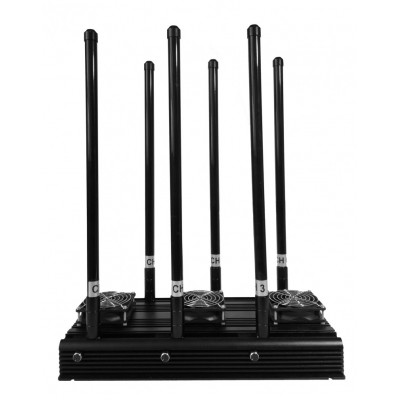

High Power Indoor Use 6 Bands 4GLTE Jammer with Output Power 130W CDMA GSM 3G 4G WIFI2.4Ghz Jamming up to 150m
$1.00 /Piece
Product Details
Transaction Comments
Product Description:
The one is good quality High power mobile phone Jammer for GSM CDMA DCS PCS 3G 4G cellular phones, Cellphone 3G 4GLTE/WIMAX Wi-Fi UHF VHF Signal Isolator which are currently presented on the market. Also is Middle RF power Drone jammer model with 6 antennas 7 cooling fan which bring us a strong jamming ability. 24/7 continuously working. And it can defend 100% drones UAVs, like Phantom 4, Phantom 3 Professional, advanced, standard series, inspire series.
Basic Specifications:
Jam Signal Type：
1: JAM-D6-W :Mobile phone 3G/2G GSM CDMA DCS 4GLTE +WIFI2.4G Signals
2: JAM-D6-G :Mobile phone 3G/2G GSM CDMA DCS 4GLTE +GPSL1 Signals
3.JAM-D6-UAV:Drone UAVS RC2.4G+RC5.8G+GPSL1L2L5+RC433 868 912 MHz
Output Power：Total 130W，20-25W each band
Jam Radius：50-150 meters (GPS signal for 500m)
Power Supply：AC110-240V to DC27V
Cooling System：High efficiency aluminum alloy radiator+ 7X cooling fans
Working Time：Not-stop Working
Product Size：500x 238x 60mm（not Include Antenna）
Product Weight: appr.8kg ( for OMNI antennas)

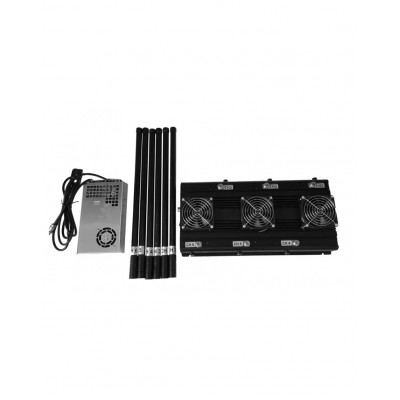

Package Contents：Jammer Host x 1, Adapter x 1, antenna x6, or 6x 2meter 1/2 Cable for OMNI antennas
Advantages:
★Each unit can jam up to 6 frequency bands simultaneously, each frequency band is separate and with adjustable power from max to off (0), LED indicator lights display power supply
★100% safe VSWR over protection (isolator) for each modular
★Big aluminum alloy shell and cooling fans, not-stop to work
★Selection of antennas to provide more flexibility regarding jamming coverage.
| Key Technical specifications : JAM-D6-W | |||
| Channel | Output Port | Frequency range | Average out-putting power |
| 1 | CDMA or GSM | 851-894 or 925-960MHz | 44dbm / 25W |
| 2 | DCS/PCS | 1805-1990MHz | 43dbm / 20W |
| 3 | 3G | 2110-2170MHz | 43dbm / 20W |
| 4 | 4GLTE | 700-803 or 790-862MHz | 44dbm / 25W |
| 5 | 4G WIMAX | 2500-2690 or 2300-2400MHz | 43dbm / 20W |
| 6 | WIFI2.4G | 2400-2500MHz | 43dbm / 20W |
| Power supply: AC adapter 50 to 60Hz, (AC110 or 240V to DC27V) | |||
| Dimension: (length, width, height) 500x 238x 60mm | |||
| Package Size: 60*44.5*20cm N.W:6kg G.W:8kg(Use normal OMNI antennas) | |||
|
Total Power:130W Shielding Radius: (50-150) meters@-75dBm. Still depends on the strength signal in given area. The shielding radius of VHF/UHF signal should be lesser than cell phone signal. |
|||
| Warranty: One year from delivery date. | |||
|
OMNI FRP Antenna： Dimension: (length, width, height,): 500x 30 x 30mm N.W:0.5Kg Gains:5-10dbi VSWR》1.5 H:180º V:20 º |
|||
|
Panel Directional Antenna： Dimension: (length, width, height,): 21x 18 x 5cm N.W:0.5Kg Gains:5-10dbi VSWR》1.5 H:60-90º V:20-30º |
|||
|
Basic station Directional Antenna： Dimension: (length, width, height,): 125x 25 x 8.5cm N.W:10Kg Gains:12-20dbi VSWR》1.5 H:60-90º V:20-30º |
|||
| Key Technical specifications : JAM-D6-G | |||
| Channel | Output Port | Frequency range | Average out-putting power |
| 1 | CDMA or GSM | 851-894 or 925-960MHz | 44dbm / 25W |
| 2 | DCS/PCS | 1805-1990MHz | 43dbm / 20W |
| 3 | 3G | 2110-2170MHz | 43dbm / 20W |
| 4 | 4GLTE | 700-803 or 790-862MHz | 44dbm / 25W |
| 5 | 4G WIMAX | 2500-2690 or 2300-2400MHz | 43dbm / 20W |
| 6 | GPSL1 | 1570-1610MHz | 43dbm / 20W |
| Power supply: AC adapter 50 to 60Hz, (AC110 or 240V to DC27V) | |||
| Dimension: (length, width, height) 500x 238x 60mm | |||
| Package Size: 60*44.5*20cm N.W:6kg G.W:8kg(Use normal OMNI antennas) | |||
|
Total Power:130W Shielding Radius: (50-150) meters@-75dBm. Still depends on the strength signal in given area. The shielding radius of VHF/UHF signal should be lesser than cell phone signal. |
|||
| Warranty: One year from delivery date. | |||
|
OMNI FRP Antenna： Dimension: (length, width, height,): 500x 30 x 30mm N.W:0.5Kg Gains:5-10dbi VSWR》1.5 H:180º V:20 º |
|||
|
Panel Directional Antenna： Dimension: (length, width, height,): 21x 18 x 5cm N.W:0.5Kg Gains:5-10dbi VSWR》1.5 H:60-90º V:20-30º |
|||
|
Basic station Directional Antenna： Dimension: (length, width, height,): 125x 25 x 8.5cm N.W:10Kg Gains:12-20dbi VSWR》1.5 H:60-90º V:20-30º |
|||
| Key Technical specifications : JAM-D6-UAV | |||
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | RC2.4 G | 2400-2500 MHz | 40dBm/10W |
| 2 | RC 5.8G | 5725-5850MHz | 40dBm/10W |
| 3 | RC 433 | 433 MHz | 41.7dBm/15W |
| 4 | RC 868 ,912 and 916 Or 433 | 868-916 or 433MHz | 41.7dBm/15W |
| 5 | GPSL1+Glonassl1 | 1560-1620 MHz | 40dBm/10W |
| 6 | GPSL2 +L5+Glonassl2 | 1170-1280 MHz | 40dBm/10W |
| Power supply: AC adapter 50 to 60Hz, (AC110 or 240V to DC27V) | |||
| Dimension: (length, width, height) 500x 238x 60mm | |||
| Package Size: 60*44.5*20cm N.W:6kg G.W:8kg(Use normal OMNI antennas) | |||
|
Total Power:70W Shielding Radius: (50-150) meters@-75dBm. Still depends on the strength signal in given area. The shielding radius of VHF/UHF signal should be lesser than cell phone signal. |
|||
| Warranty: One year from delivery date. | |||
|
OMNI FRP Antenna： Dimension: (length, width, height,): 500x 30 x 30mm N.W:0.5Kg Gains:5-10dbi VSWR》1.5 H:180º V:20 º |
|||
|
Panel Directional Antenna： Dimension: (length, width, height,): 21x 18 x 5cm N.W:0.5Kg Gains:5-10dbi VSWR》1.5 H:60-90º V:20-30º |
|||
|
Basic station Directional Antenna： Dimension: (length, width, height,): 125x 25 x 8.5cm N.W:10Kg Gains:12-20dbi VSWR》1.5 H:60-90º V:20-30º |
|||
OEM Customized service:
Frequency Range can be customized: 4GLTE Wimax, Wi-Fi 2.4G,5.8G,3.6GHz, GPSL1-L5 and more.
Silkscreen OEM service can be offered.
Applications:
o It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and morePlaces that require silence, confidentiality and information security
o For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
