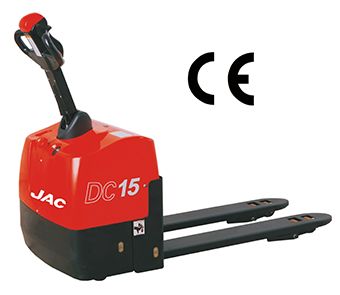

Electric Pallet Truck Cbd15-610/1.5 Ton
$1200.00 /piece
Product Details
Transaction Comments
Basic Info
- Model NO.: CBD15-610
- Power: AC Motor
- Fuel: Electric
- Lift height: 200
- Brand: JAC
- Entry Type: 2-Way
- Trademark: JAC
- Specification: CE/SGS/ISO9001/ISO14001
- HS Code: 8427109000
- Type: Powered Pallet Truck
- Load Capacity: 1T - 5T
- Load center: 500mm
- Condition: New
- Material: Steel
- Style: Double Faced
- Transport Package: JAC Standard Export Packing
- Origin: Hefei, China
Product Description
JAC FORKLIFT SERIES:
Warehousing Series: Pallet truck
Product name: Electric pallet truck
Loading Capacity: 1500KG-2000KG
Advantage:
Power steering system
Warehousing Series: Pallet truck
Product name: Electric pallet truck
Loading Capacity: 1500KG-2000KG
Advantage:
Power steering system
Original America-made Curtis controller, Allbright Contractor, AMP connectors, NSK bearings
Vertical drive system, Driving Floating Adjustable system design
Vertical drive system, Driving Floating Adjustable system design
Maintenance free AC motor provides stronger power and enhanced grade ability
USA CURTIS controller
Two magnetic valves,three kinds of descend speed
Two magnetic valves,three kinds of descend speed
Proximity switch ensure safety and energy-saving
Optional fork tilting device
| Feature | UNIT | Specs |
| Model | CBD15-610 | |
| Configuration NO. | 610 | |
| Load capacity | KG | 1500 |
| Load center | mm | 600 |
| wheel base | mm | 1234 |
| operating type | walkie | |
| Wheels | ||
| wheel type | PU | |
| wheel quantity driving wheel/balance wheel/bearing wheel | 1/2/4 | |
| driving wheel size | mm | Φ252*67 |
| balance wheel size | mm | Φ80*58(double wheel) |
| Bearing wheel size | mm | Φ99.5*40 |
| Dimension | ||
| min.fork lowered height | mm | 85 |
| max.fork lifting height | mm | 205 |
| max.lifting height | mm | 120 |
| overall fork width | mm | 540/600/685 |
| fork length | mm | 1150/1200 |
| fork width | mm | 160 |
| fork thickness | mm | 44 |
| overall length | mm | 1630 |
| overall width | mm | 724 |
| overall height(with handle) | mm | 1220 |
| overall height(without handle) | mm | 685 |
| min.turning radius | mm | 1400 |
| min.aisle width for pallets 800X1200 | mm | 1817 |
| min.aisle width for pallets 1000X1200 | mm | 1858 |
| Performance | ||
| Travel speed laden/unladen | km/h | 3.5/4 |
| lift speed laden/unladen | mm/s | 56/60 |
| Gradeability laden/unladen | % | 5/7 |
| Electrical configuration | ||
| drive motor | kw | DC 0.63 |
| lift motor | kw | DC 0.8 |
| steering motor | kw | N/A |
| battery voltage/capacity | v/ah | 24/70 |
| brake | electromagnetic/regenerative | |
| controller | CURTIS | |
| Weight | ||
| Battery weight | kg | 48 |
| service weight with battery | kg | 285 |
