- Model NO.: 3-20
- Customized: Customized
- Type: Hydraulic Shock
- Name: Qt3-20 Interlocking Concrete Pavers Block Making M
- Market: Global
- Pallet: 680*550*30mm
- Power: 15.5kw
- From: Linyi City, Shandong Province, China
- Transport Package: Nude Packing
- Origin: Linyi, Shandong, China
- Certification: SGS, CE, ISO
- Automatic Grade: Automatic
- Finished Products: Color Pavers
- Color: Customized
- Cycle Time: 20-25s
- Voltage: 380/220V
- Hydraulic: 10MPa
- Trademark: Dongfeng
- Specification: 5000*4000*2400mm
- HS Code: 8474802000
1. Brief introduction :
QT3-20 paving block machine,interlocking block machines is a multi-function color paving brick making machine especially suitable to produce various paving brick, porous brick, interlocking brick, hollow block, solid brick etc. It has good performance in making high quality and strength, accurate size, beautiful appearance brick. It also easy to operate and maintain.
2.Main technical specifications
Overall dimension |
5000*4000*2400mm |
| Forming cycle | 20~25s |
| Vibration frequency | 4500~5000r/min |
| Amplitude | 3mm |
| Exciting force | 22KN |
| Power | 15.5kw |
| Pallet size | 680*550*30mm |
| Productivity | 650~3200pcs/hour |
| Raw material | Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes |
Applied products |
Paving stones with or without face mix, porous block, garden and landscaping products, interlocking bricks, grass blocks ,slabs, edgers, kerbstones, slope blocks, concrete blocks, solid/hollow/cellular masonry products. |
3.Capacity
| Item | Size(mm) | Pcs/mould | Forming cycle(s) | Pcs/hour |
| Porous brick | 200*100*60 | 12 | 20 | 2000 |
| Color brick | 220*112*60 | 10 | 20~23 | 1580 |
| Hollow block | 400*200*200 | 3 | 15~25 | 650 |
| Solid brick | 240*115*60 | 20 | 15~25 | 3200 |
| Cellular brick | 240*200*90 | 10 | 15~25 | 1800 |

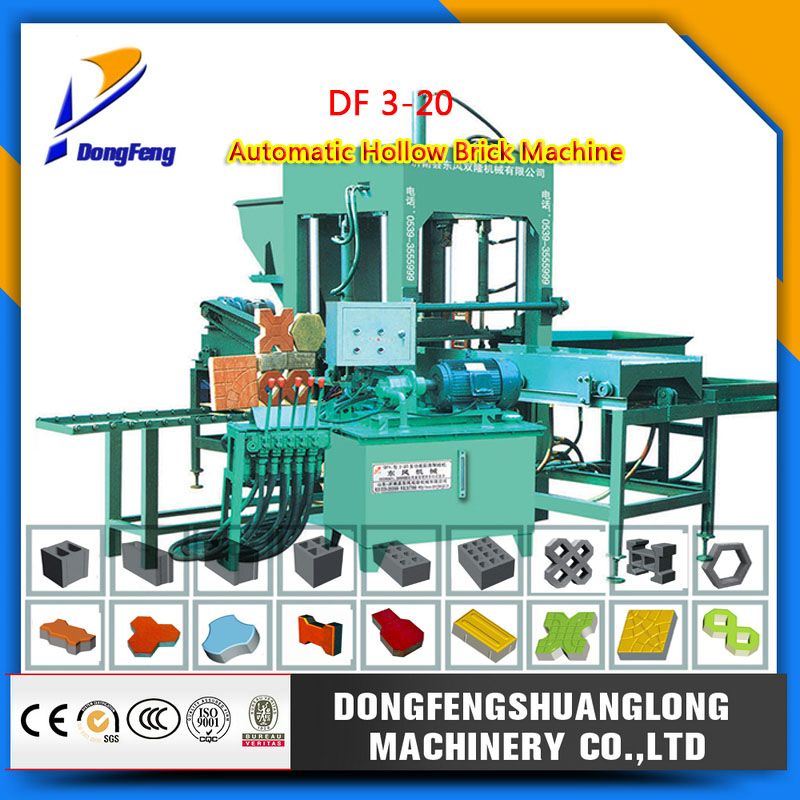

4.Structure Show:
5.Finished Block Sample :
