- Model NO.: MC-3BR
- Structure: Valve Type Arrester
- Application: AC/DC System
- Operation Voltage: High Voltage
- Material: ZnO
- Brand: Xinyitong
- Impedence: 50ohm
- Weight: 130kg
- Transport Package: Standard Export Package
- Origin: Shanghai
- Type: Antenna Feeder Arrester
- Installation: Parallel Arrester
- Size: Small
- Shape: Spiral
- Certification: ROHS, ISO9001
- Color: Sliver
- Vswr: Less Than 1.2:1
- Trademark: Xinyitong
- Specification: 68.2 x 31 x 23mm
- HS Code: 8535300000
Company profile
Shang hai Xiaowei Equipment Co., LTD (Xiaowei) was established in 2011, Shanghai, which is a company covering cable and accessories manufacturing, real estate, engineering service and investment &trading.
As a National wide wire &cable supplier Xiaowei continually provide different quality products in the telecom communication fields, the main product is 7/8 feeder cable, 1/2 feeder cable, feeder claim, feeder tools, all kind of the male, female, DIN, connector feeder connector, feeder grouding kit, grounding bar, low loss 7/8 jumper cable and 1/2 jumper cable, indoor optic jumper cable and outdoor fiber cable, splitter and coupler, Dual and trible band antanna, GPS antenna and GPS cable all the accessories in the telecom field. Xiaowei also supply VHF vabor phone, WLAN system.
Xiaowei have advance manufacturing product line, stanard factory, we have long co-operation with the Chinese main telecom operators such as China Mobile, China Unicom, China Telecom. And the electric power operator such as National Electric network company, Southern Electric power company. Xiaowei provides total solution for telecommunication, power grid, railway, engineering, green energy, automobile industries, etc.
Xiaowei particularly focused on the QoS and creating value for its clients and stakeholders, continuously invest in R&D, marketing & service networks, meeting and exceeding the precise needs of our customers national wide. With the develop of the business, Xiaowei extend the service to the international trading.
Technical Parameters of Arrester
| e series | MC-3BP | MC-3BR | MC-6BP | MC-6BR |
| Frequency range | DC-3GHz | DC-6GHz | ||
| Connector | N-P/N-J | N-J/N-J | N-P/N-J | N-J/N-J |
| Applicated standard | JIS C 5419 | |||
| Impedance | 50ohm | |||
| VSWR | ≤1.2:1 | ≤1.4:1 | ||
| Insertion Loss (≤) | 0.1dB/1GHz, 0.2dB/2GHz, 0.4dB/3GHz, 0.5dB/5GHz, 0.6dB/6GHz | |||
| Maximum Handing Power (25oC) | 250W/300MHz 160W/500MHz 100W/900MHz 75W/1.2GHz 52W/1.9GHz 42W/2.4GHz 36W/3GHz 10W/6GHz | |||
| Insulation Resistance | DC 100V more than 50MΩ | |||
| D.C. Discharge voltage | DC 230V+20% | |||
| Initial impulse wave discharge vol tage | Less than 700v 1KV | |||
| Rated impulse wave discharge | 10KA 8/20 SEC 5 Times | |||
| Grounding connection | By feed through or screw terminal | |||
| Working temperature | -30 ~ +85 degree | |||
| Dimension | BP 68.2x31x23mm |
BP 60.1x31x33mm |
||

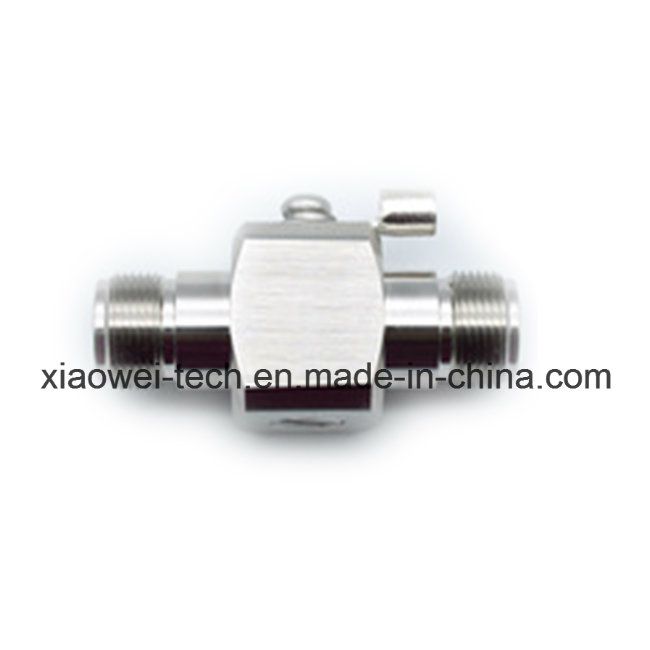

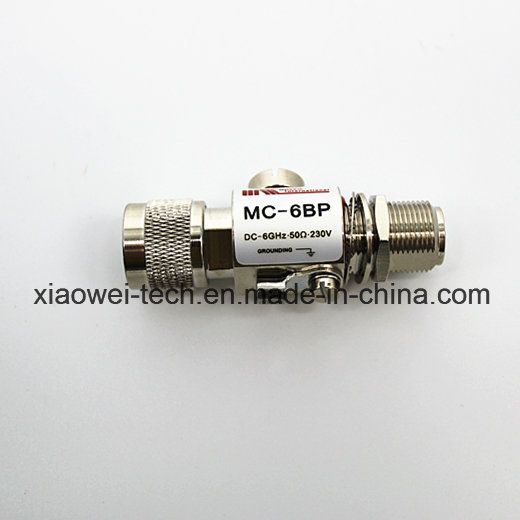

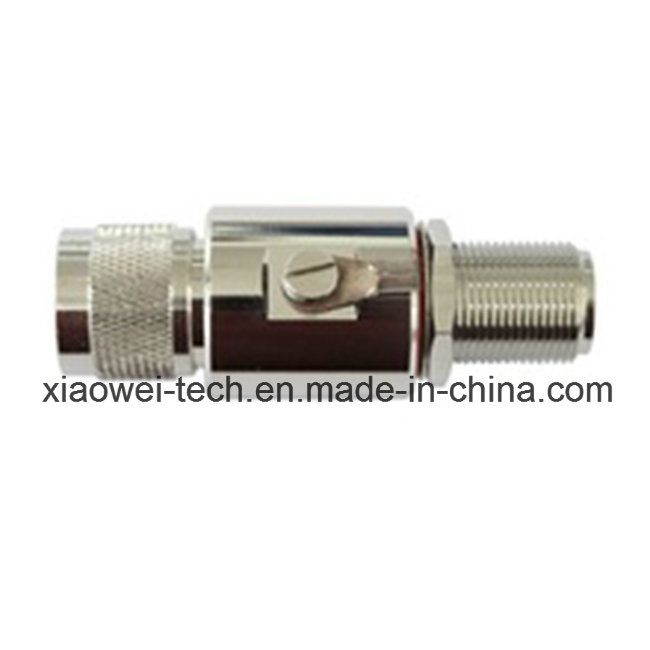

Detailed Images
