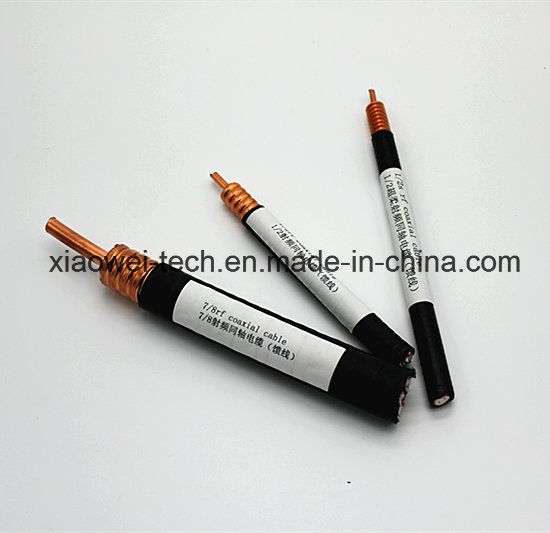

1/4" Superflexible RF Coaxial Communication Cable

Company profile

Shanghai Xiaowei Equipment Co., Ltd. located Shanghai, China which is branch for overseas market of Jiangsu Huacan Telecommunication Co., Ltd. We are specialist supplier of telecommunication equipment and the total solution for your project.

Jiangsu Huacan Telecommunicaton Co. Ltd is a Private Science and Technology Enterprises and National Hi-tech Enterprise which mainly deals with developing, producing and selling wireless base station antenna and antenna accessories. Founded in 2007, the company has an area of 160 thousand square meters, and more than 2000 staffs.Our company has four production bases: feeder accessories and telecommunication cables; basestation antennas and passive components; coaxial connectors and arrestors; cable assembly and indoor Distributed Antenna.

We are the supplier of civil system intergrators, such as Huawei, ZTE, because of the capacity of wireless communication accessories, and a higher products share. Thanks to high quality and thoughtful after-sales service, many system operators (China Mobile, China Unicom and China Telecom etc.) choose our products for their network.

Our companypassed the certification of ISO9001, ISO14001 and the occupational health system certification. As a member of China Communications Standards Association and with more than 140 patents of all kinds, we often participate in making draft and formulating mobile communication products industry standard.

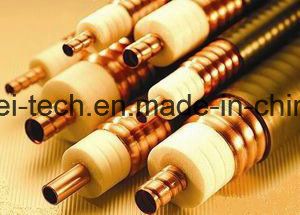

Structure

1. Inner conductor material : Copper-clad Aluminum Wire, Solid bare copper, corrugated copper tube
2. Dielectric : FPE
3. Outer conductor material : Corrugated copper
4. Jacket : PE or LSZH PE

Characteristics & Applications

Big transmission power, low transmission attenuation, good humidity resistance. Main used in telecommunication, microwave and radar system.

Operation temperatures : - 55 ~ +85 degree
Installation temperatures : -20 ~ +60 degree
Storage temperatures : -55 ~ +85 degree

Structure and dimensions
Inner conductor	Copper/CCA
Outer conductor	Copper
O.D. of inner conductor (normal)	1.9 mm
O.D. of outer conductor (normal)	6.4 mm
O.D. of jacket (normal)	7.4 mm
Cable weight	0.08 kg/m

Mechanical Properties
Minimum Bending Radius	25 mm
Number of Bends, Min	15
Tensile strength	18 kg

Attenuation and Average Power
Frequency MHz	Attenuation (normal/max.) dB/100m	Average Power kW
150	7.21/8.07	1.00
800	17.16/19.22	0.42
900	18.13/20.45	0.39
1000	19.16/21.46	0.37
1700	25.34/28.38	0.28
1800	26.12/29.60	0.27
1900	26.88/30.10	0.26
2000	27.61/31.33	0.25
2200	29.06/32.55	0.24
2300	29.76/33.33	0.24
Note: The maximum attenuation above is according to YD/T 1092-2004, it can be adjusted after both-side permitted.
