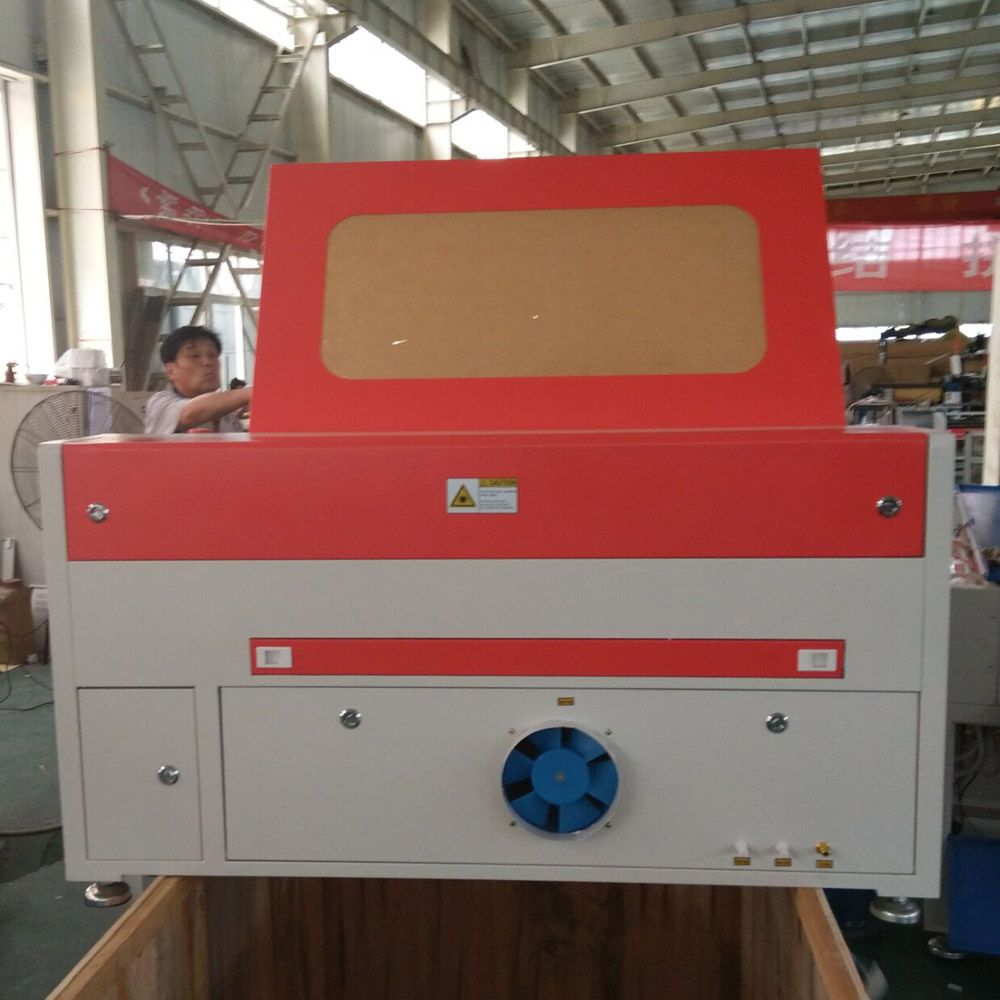

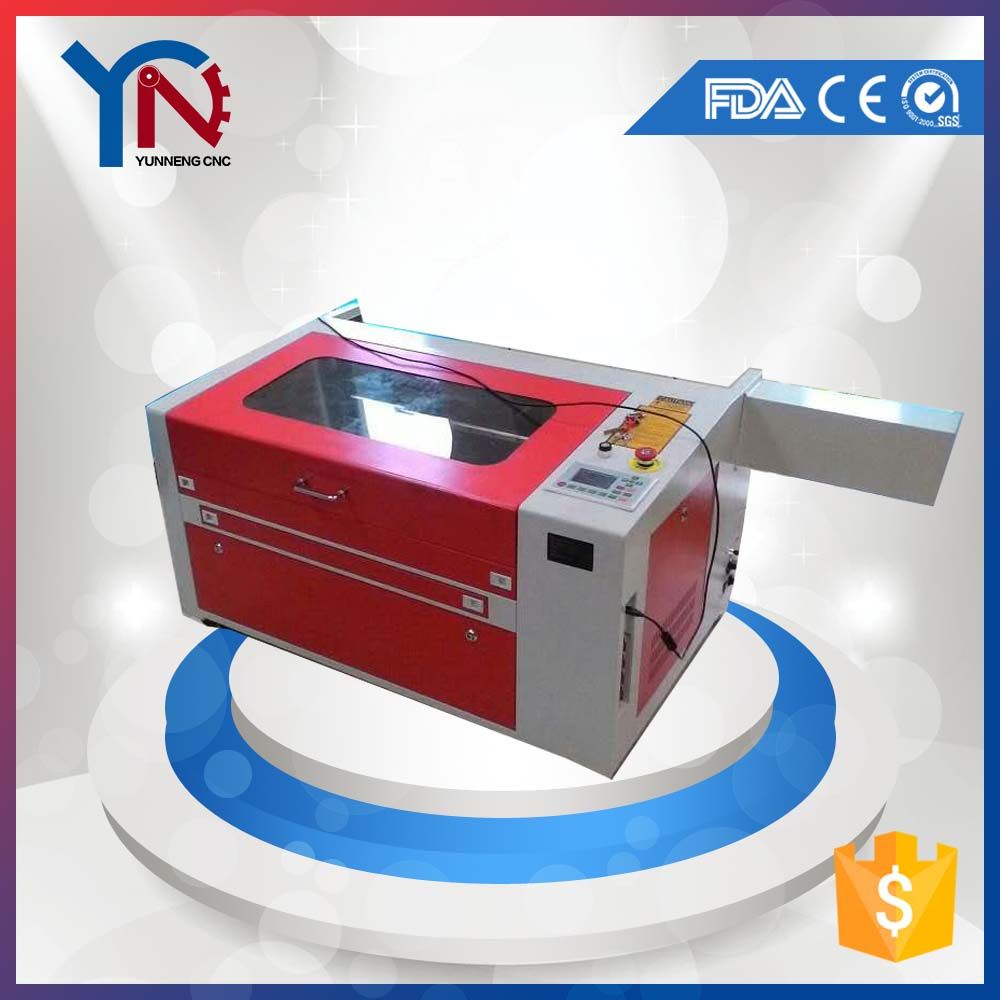

Ce/FDA/SGS/Co Small Laser Cutting Machine
$2300.00 /piece
Product Details
Transaction Comments
Basic Info
- Model NO.: YN-5030
- Cooling System: Water Cooling
- Applicable Material: Nonmetal
- Laser Classification: Gaseous Laser
- Transport Package: Plywood Case
- Origin: Shandong, China
- Application: Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
- Technical Class: Continuous Wave Laser
- Structure Type: Desktop
- Laser Technology: Laser Flame Cutting
- Specification: 3400*1980*1307
- HS Code: 8456100090
Product Description
Feature of small laser cutting machine
small laser cutting machine Technicial parameter
Feature:
We believe there is value in standing out from the crowd and that thinking outside the box is not always a bad thing; this is something we pride ourselves on doing, to create the best product for you.
Our Yunneng machines combine laser cutting and laser engraving systems in an affordable package, ensuring you will obtain the optimum efficiency within your production environment. Aimed mainly at non-metallic applications, these large area processing machines continue to find new and exciting applications in higher education, fashion, model making, cottage industries and much, much more.
small laser cutting machine Technicial parameter
| Model Number | YN-5030 | ||
| Laser power | 60W | ||
| Laser type | CO2 | ||
| Wavelength | 10.6 um | ||
| Laser format | Sealed laser glass tube | ||
| Cooling type | Water (purified) | ||
| Chassis Details | |||
| Machine size | 980 x 820 x 670 mm | ||
| Weight (nett) | 280kg | ||
| Bed size (process area) | 500 x 300 mm | ||
| Z motion | 100 mm | ||
| Motion Control | |||
| X-Y stage drives | Leadshine Nema drive motors | ||
| X-Y stage movement | 500 x 300 mm | ||
| Z stage drive | Standard stepper motor drive | ||
| Z stage movement | 100mm | ||
| Targeting laser | CO2 sealed glass laser tube | ||
| Autofocus | Included | ||
| Process Details | |||
| Positional accuracy | < 0.01mm | ||
| Highest scanning resolution | 4000 dpi | ||
| Recommended smallest character size | 1mm height (this is material dependant) | ||
| Scanning speed (engraving). | Up to 1.2 metre/sec. (ultimate speed is material dependant) | ||
| Scanning speed (Cutting). | Up to .75 metres/sec. (ultimate speed is material dependant) | ||
| Environmental Conditions | |||
| Operating power | 220- 240v 50 Hz | ||
| Operating temperature | Ambient temperature: 10 - 30 degrees Celsius | ||
| General environment | Dust free, clean area with reasonable ventilation | ||
| Humidity | (relative) less than 70% | ||
| Water cooling supply | Closed loop chiller supplied | ||
| Air assist | Air Pump supplied | ||
| Operating Details | |||
| Operating software | Graphical interface package supplied with machine | ||
| Communications interface | USB | ||
| Compatible software | CorelDraw, Photoshop, AutoCAD | ||
| Supported file formats | PLT, DXF, BMP, DST, Ai | ||
Applicable Material of industrial laser cutter:
| Material | Engrave | Cut |
| Wood | Yes | Yes |
| Jade | Yes | |
| Acrylic | Yes | Yes |
| Glass | Yes | |
| Ceramic | Yes | |
| Delrin | Yes | Yes |
| Cloth | Yes | Yes |
| Leather | Yes | Yes |
| Marble | Yes | |
| Matte Board | Yes | Yes |
| Melamine | Yes | Yes |
| Paper | Yes | Yes |
| Mylar | Yes | Yes |
| Press Board | Yes | Yes |
| Rubber | Yes | Yes |
| Wood Veneer | Yes | Yes |
| Fiberglass | Yes | Yes |
| Tile | Yes | |
| Plastic | Yes | Yes |
| Cork | Yes | Yes |
| Corian | Yes | Yes |
| Ceramics | Yes |
Feature:
- 2 years free warranty
- Provides excellent after-sales service - Safety certificate for machine
- FDA compliant, CE certification certification - The manual up/down table
- It is suitable for different sizes of carving items - A red dot pointer
- Provides visibility and shows the engraving location. - Control panel
- Easy to use, the speed, power and other settings can adjust. - With 50W CO2 laser tube
- The engraving will be smooth and precise. - The Raster/Vector color mapping
- Allows you to change the engraving speed and power through color coding. - The Cylinder Rotary Attachment
- Allows you to engrave any cylindrical object such as cups, pots, musical instruments. - The reinforced and thickened machine body
- Makes transportation absolutely to be safer and longer life time. - USB connectivity and U-Flash disk supported
- USB connectivity for easy observation from your computer
- U-Flash disk for the machine will read files from memory stick,you can work even without a PC. - Water cooling and protection system
- Can reduce the laser tube's temperature and help it work for a longer time - Air assist function and exhaust fan system
- Helps the cutting surface always to clean the debris, gases and heat and makes the engraving and cutting projects a breeze - Mainboard and chip & bearing & high accuracy stepping belt
- Mainboard and chip adopt Japan imported which can control the engraving more precise
- Bearing & high accuracy stepping belt adopt Germany imported, which not only make the engraving more precise, also make the machine life time twice to three times than ordinary CO2 laser engraver - Supports multiple graphic formats
- PLT / DXF / BMP / JPG / GIF / PGN / TIF and others. Equipped with a DSP control system for CorelDraw/AutoCAD and other advance software, this machine is compatible with Win 7, Win 8, win 10,Vista, XP and Win 2000. - Note:
- This item is very heavy and cannot ship out through Fedex or UPS. This item requires special truck delivery and we will need your correct phone number in order to schedule delivery . The included service is delivery to your address. It does not include lift gate service, installation or delivery inside the house. If you need the lift gate service, please contact us before making the purchase!
- Please provide us with the valid commercial address. If your delivery address is private residence address, contact us before you place an order.
