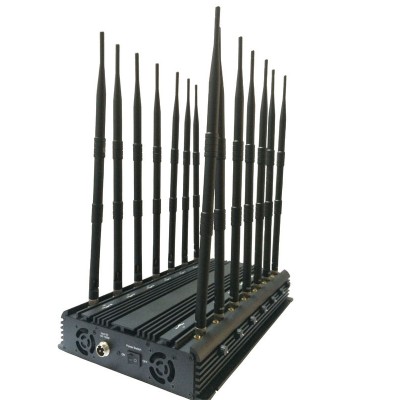

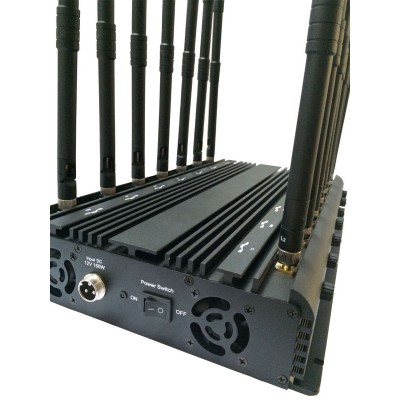

Adjustable 14 Antennas Powerful 3G 4G Phone Blocker& WiFi UHF VHF GPS Lojack All Bands Signal Jammer
$1.00 /Piece
Product Details
Transaction Comments
Product Description:
This is designed with 14 antennas multifunction all in one cellphone signal jammer which bring us a strong jamming ability. And it can not only cut off all 3G 4G mobile phone signals, but also jam WiFi2.4G/5.8G/3.6GHz/ GPSL1-L5 and VHF UHF LOJACK RF 315 MHz 433MHz 868MHz signals for customize. The jamming radius up to 60meters
Basic Specifications:
Jam Signal Type：
1:A14-A:Full Bands Mobile Phone 4G/3G/2G +WiFi2.4G+ GPSL1L2L5 +Walkie-Talkie UHF/VHF+LOJACK+315+433
2:A14-B : Full Bands Cellphone 4G/3G/2G +WiFi2.4G5.8G+ GPSL1L2L5 + Walkie-Talkie UHF/VHF+LOJACK+315
3:A14-C : Full Bands Cellphone 4G/3G/2G +WiFi2.4G5.8G+ GPSL1+ Full Bands Walkie-Talkie & Wireless Headset/Microphone +UHF/VHF+LOJACK
Output Power：Total 33W，1-3W each band
Jam Radius：30-60meters
Power Supply：AC110-240V to DC12V
Cooling System：High efficiency aluminum alloy radiator, Build-in 4 cooling fan
Working Time：Not-stop Working
Product Size：410x 238x 60 mm（not Include Antenna）
Product Weight: appr.7kg

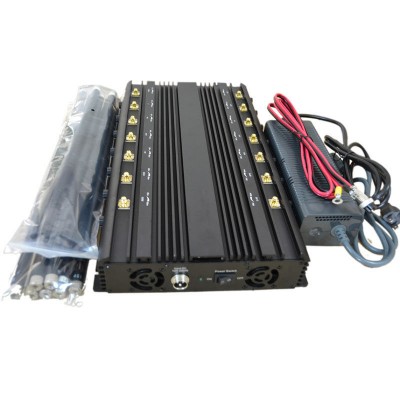

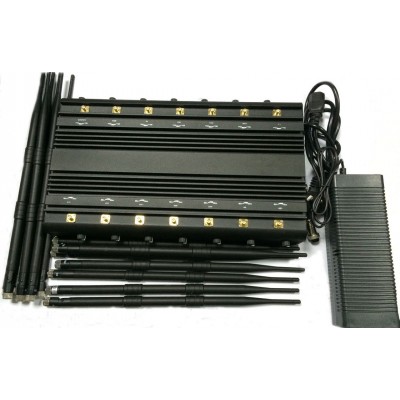

Package Contents：Jammer Host x 1, AC adapter x 1,antenna x14,Car storage battery cable x1
Advantages:
★High output power, Total up to: 33W , jamming up to 40m (Still depends on the strength signal in given area)
★External Omni-directional antennas all the TX frequency covered down link only
★With Car storage battery Charger DC12V can be used in car
★Built-in good cooling system inside, Working non-stopped
★Can adjust or turn off any single band without influencing the other bands operation
★Can adjust or turn off any single band without influencing the other bands operation.
| Key Technical specifications : JAM-A14-A | |||
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | VHF | 130-190MHz | 35dbm / 3W |
| 2 | UHF or CDMA450 | 400-470 or 450-470MHz | 35dbm / 3W |
| 3 | RC315 | 315MHz | 35dbm / 3W |
| 4 | RC433 | 433MHz | 35dbm / 3W |
| 5 | 4G1 LTE 700 | 700-803 or 790-826MHz | 35dbm / 3W |
| 6 | 4G2 LTE 1700 | 1710-1780MHz | 33dbm / 2W |
| 7 | GSM or CDMA | 925-960 or 850-894MHz | 35dbm / 3W |
| 8 | DCS or PCS | 1805-1880-1920-1990MHz | 33dbm / 2W |
| 9 | 3G | 2110-2170MHz | 33dbm / 2W |
| 10 | 4G LTE 2600 | 2500-2690 MHz | 30dbm / 1W |
| 11 | Wi-Fi 2.4G or 4G2300 | 2300-2400 or 2400-2500MHz | 30dbm / 1W |
| 12 | GPSL1 | 1570-1580MHz | 33dbm / 2W |
| 13 | GPSL2+L5 | 1170-1280MHz | 33dbm / 2W |
| 14 | LOJACK& XM radio | 167-175MHz | 35dbm / 3W |
| Power supply: AC adapter 50 to 60Hz, (110-240V AC-12V DC) Car storage battery Charger DC12V | |||
| Dimensions: (length ,width, height) 410x 238x 60mm（not Include Antenna） | |||
| Packing size: 49*44*15cm Net weight: 6kg Gross weight: 7.0kg | |||
|
Total power:33W Shielding radius: (30-60) meters At -75dBm Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters |
|||
| Warranty: one year from delivery date | |||
| Key Technical specifications : JAM-A14-B | |||
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | VHF | 130-190MHz | 35dbm / 3W |
| 2 | UHF or CDMA450 | 400-470 or 450-470MHz | 35dbm / 3W |
| 3 | RC315 | 315MHz | 35dbm / 3W |
| 4 | 4G1 LTE 700 | 700-803 or 790-826MHz | 35dbm / 3W |
| 5 | GSM or CDMA | 925-960 or 850-894MHz | 35dbm / 3W |
| 6 | DCS or PCS | 1805-1880-1920-1990MHz | 33dbm / 2W |
| 7 | 3G | 2110-2170MHz | 33dbm / 2W |
| 8 | 4G LTE 2600 | 2500-2690 MHz | 30dbm / 1W |
| 9 | Wi-Fi 2.4G or 4G2300 | 2300-2400or 2400-2500MHz | 30dbm / 1W |
| 10 | GPSL1 | 1570-1580MHz | 33dbm / 2W |
| 11 | GPSL2+L5 | 1170-1280MHz | 33dbm / 2W |
| 12 | WIFI5.2G | 5100-5500MHz | 30dbm / 1W |
| 13 | WIFI5.8G | 5500-5900MHz | 30dbm / 1W |
| 14 | LOJACK& XM radio | 167-175MHz | 35dbm / 3W |
| Power supply: AC adapter 50 to 60Hz, (110-240V AC-12V DC) Car storage battery Charger DC12V | |||
| Dimensions: (length ,width, height) 410x 238x 60mm（not Include Antenna） | |||
| Packing size: 49*44*15cm Net weight: 6kg Gross weight: 7.0kg | |||
|
Total power:33W Shielding radius: (30-60) meters At -75dBm Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters |
|||
| Warranty: one year from delivery date | |||
| Key Technical specifications : JAM-A14-C | |||
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | VHF1 | 130-190MHz | 35dbm / 3W |
| 2 | UHF2 | 190-300MHz | 35dbm / 3W |
| 3 | UHF3 | 300-400MHz | 35dbm / 3W |
| 4 | UHF4 | 400-500MHz | 35dbm / 3W |
| 5 | 4G1 LTE 700 | 700-803 or 790-826MHz | 35dbm / 3W |
| 6 | CDMA | 851-894MHz | 35dbm / 3W |
| 7 | GSM | 925-960MHz | 35dbm / 3W |
| 8 | DCS&PCS | 1805-1990MHz | 33dbm / 2W |
| 9 | 3G | 2110-2170MHz | 33dbm / 2W |
| 10 | 4G LTE 2600 | 2500-2690 MHz | 30dbm / 1W |
| 11 | Wi-Fi 2.4G or 4G2300 | 2300-2400 or 2400-2500MHz | 30dbm / 1W |
| 12 | Wi-Fi 5.8G | 5725-5850MHz | 30dbm / 1W |
| 13 | GPSL1 | 1570-1580MHz | 33dbm / 2W |
| 14 | LOJACK& XM radio | 167-175MHz | 35dbm / 3W |
| Power supply: AC adapter 50 to 60Hz, (110-240V AC-12V DC) Car storage battery Charger DC12V | |||
| Dimensions: (length ,width, height) 410x 238x 60mm（not Include Antenna） | |||
| Packing size: 49*44*15cm Net weight: 6kg Gross weight: 7.0kg | |||
|
Total power:33W Shielding radius: (30-60) meters At -75dBm Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters |
|||
| Warranty: one year from delivery date | |||
OEM Customized service
Customized for special frequency band , Wi-Fi5.8G 3.6GHz, etc
Silkscreen OEM service can be offered
Applications:
o It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and morePlaces that require silence, confidentiality and information security
o For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
