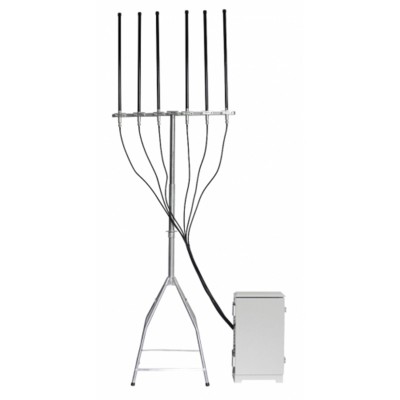

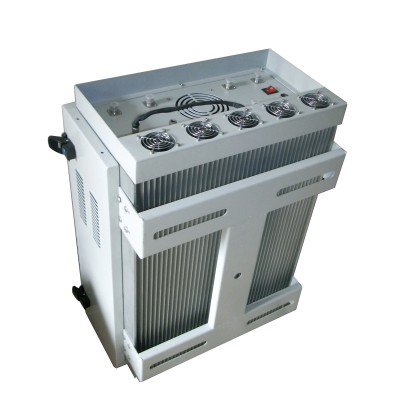

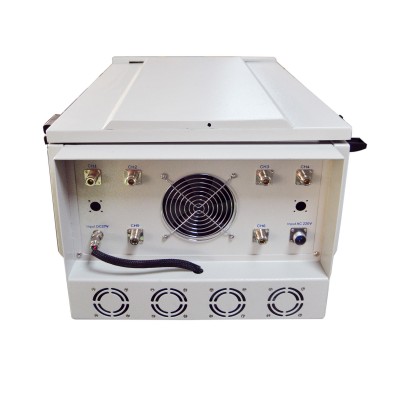

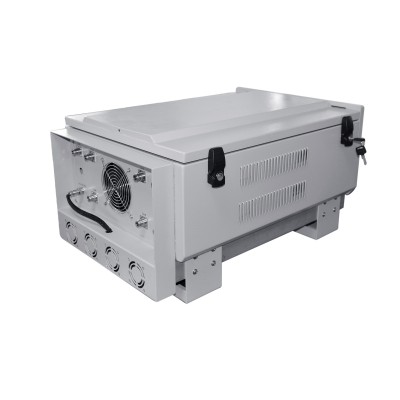

600 Watt High Power Prison Outdoor Prison Waterproof Wireless signal Jammer Jamming up to 500 M
$1.00 /Piece
Product Details
Transaction Comments
Product Description:
Top high power waterproof outdoor using wireless signal Jammers for Mobile Phone signals is able to disable all mobile phone frequencies CDMA GSM, 2G, 3G, 4G Lte, 4G Low. Also is high RF power Drone Jammer model, it can defend 100% drones UAVs, like Phantom 4, Phantom 3 Professional, advanced, standard series, inspire series, block remote control signal 2.4GHz, 5.8GHz, GPS L1 L2 L3 L4 L5, 433, RC 868 and 912MHz, Jamming range 300-1500 meters.
Basic Specifications:
Jam Signal Type:
1 :Mobile phone 3G/2G GSM CDMA DCS 4GLTE +WIFI2.4G Signals
2: Mobile phone 3G/2G GSM CDMA DCS 4GLTE +GPSL1 Signals
3: Drones UAVs RC2.4G/5.8GHz/433/868/912+GPSL1/L2/L5 Signals
Output Power:Total 600W ,50-100W each band
Jam Radius:300-500 meters (GPS signal for 1500m)
Power Supply:AC110-240V to DC27V
Cooling System:High efficiency aluminum alloy radiator+ 6x cooling fans
Working Time:Not-stop Working
Product Size:740x 510 x 350 mm
Product Weight: appr.65kg (for omni directional antennas)
Package Contents:Jammer Host x 1 , antenna x6, AC Plug x1,6x 2meter 1/2 Cable.
Advantages:
★Output power total 600W, you can choose high gain 5-7dBi Omni or panel directional antennas, shielding 300-500m, still depends on the strength signal in given area
★Each unit can jam up to 6 frequency bands simultaneously, each frequency band is separate and with adjustable power from max to off (0), LED indicator lights display power supply
★100% safe VSWR over protection (isolator) for each modular
★Big aluminum alloy shell and cooling fans, not-stop to work
★Design for outdoor installation, secure design to avoid sabotage
OEM Customized service:
Frequency Range can be customized: 4GLTE Wimax, Wi-Fi 2.4G,5.8G,3.6GHz, GPSL1-L5 and more.
Silkscreen OEM service can be offered.
Applications:
o It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and morePlaces that require silence, confidentiality and information security
o For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
Top high power waterproof outdoor using wireless signal Jammers for Mobile Phone signals is able to disable all mobile phone frequencies CDMA GSM, 2G, 3G, 4G Lte, 4G Low. Also is high RF power Drone Jammer model, it can defend 100% drones UAVs, like Phantom 4, Phantom 3 Professional, advanced, standard series, inspire series, block remote control signal 2.4GHz, 5.8GHz, GPS L1 L2 L3 L4 L5, 433, RC 868 and 912MHz, Jamming range 300-1500 meters.
Basic Specifications:
Jam Signal Type:
1 :Mobile phone 3G/2G GSM CDMA DCS 4GLTE +WIFI2.4G Signals
2: Mobile phone 3G/2G GSM CDMA DCS 4GLTE +GPSL1 Signals
3: Drones UAVs RC2.4G/5.8GHz/433/868/912+GPSL1/L2/L5 Signals
Output Power:Total 600W ,50-100W each band
Jam Radius:300-500 meters (GPS signal for 1500m)
Power Supply:AC110-240V to DC27V
Cooling System:High efficiency aluminum alloy radiator+ 6x cooling fans
Working Time:Not-stop Working
Product Size:740x 510 x 350 mm
Product Weight: appr.65kg (for omni directional antennas)
Package Contents:Jammer Host x 1 , antenna x6, AC Plug x1,6x 2meter 1/2 Cable.
Advantages:
★Output power total 600W, you can choose high gain 5-7dBi Omni or panel directional antennas, shielding 300-500m, still depends on the strength signal in given area
★Each unit can jam up to 6 frequency bands simultaneously, each frequency band is separate and with adjustable power from max to off (0), LED indicator lights display power supply
★100% safe VSWR over protection (isolator) for each modular
★Big aluminum alloy shell and cooling fans, not-stop to work
★Design for outdoor installation, secure design to avoid sabotage
| Key Technical specifications : | |||
| Channel | Output Port | Frequency range | Average out-putting power |
| 1 | CDMA or GSM | 851-894 or 925-960MHz | 50dBm/100W |
| 2 | DCS/PCS | 1805-1990MHz | 50dBm/100W |
| 3 | 3G | 2110-2170MHz | 50dBm/100W |
| 4 | 4GLTE | 700-803 or 790-862MHz | 50dBm/100W |
| 5 | 4G WIMAX | 2500-2690 or 2300-2400MHz | 50dBm/100W |
| 6 | WIFI 2.4G | 2345-2500 MHz | 50dBm/100W |
| Power supply: AC adapter 50 to 60Hz, (110 or 240V AC to 27V DC) | |||
| Dimensions: 740x510x 350mm | |||
|
Packing size: 1000*700*600mm Net weight: 55kg Gross weight: 55kg +10 kg Antennas =65 kg Working temperature: -30 -60 ℃ |
|||
|
Total power: 600W Shielding radius: (300-500) meters at -75dBm Still depends on the strength signal in given area Shielding radius of VHF/UHF signal should be lesser than cell phone signal |
|||
| Warranty: one year from delivery date | |||
|
OMNI FRP antenna: Dimensions: 500x 30x30mm Net weight: 0.5kg Gains: 5-10dBi VSWR >1.5 H: 180º V: 20 º |
|||
|
Basic station directional antenna: Dimensions: 125x25x8.5cm Net weight: 10kg Gains: 12-20dBi VSWR >1.5 H: 60-90º V: 20-30º |
|||
| Key Technical specifications : | |||
| Channel | Output Port | Frequency range | Average out-putting power |
| 1 | CDMA or GSM | 851-894 or 925-960MHz | 50dBm/100W |
| 2 | DCS/PCS | 1805-1990MHz | 50dBm/100W |
| 3 | 3G | 2110-2170MHz | 50dBm/100W |
| 4 | 4GLTE | 700-803 or 790-862MHz | 50dBm/100W |
| 5 | 4G WIMAX | 2500-2690 or 2300-2400MHz | 50dBm/100W |
| 6 | GPSL1 | 1570-1610 MHz | 47dBm/50W |
| Power supply: AC adapter 50 to 60Hz, (110 or 240V AC to 27V DC) | |||
| Dimensions: 740x510x 350mm | |||
|
Packing size: 1000*700*600mm Net weight: 55kg Gross weight: 55kg +10 kg Antennas =65 kg Working temperature: -30 -60 ℃ |
|||
|
Total power: 550W Shielding radius: (300-500) meters at -75dBm Still depends on the strength signal in given area Shielding radius of VHF/UHF signal should be lesser than cell phone signal |
|||
| Warranty: one year from delivery date | |||
|
OMNI FRP antenna: Dimensions: 500x 30x30mm Net weight: 0.5kg Gains: 5-10dBi VSWR >1.5 H: 180º V: 20 º |
|||
|
Basic station directional antenna: Dimensions: 125x25x8.5cm Net weight: 10kg Gains: 12-20dBi VSWR >1.5 H: 60-90º V: 20-30º |
|||
| Key Technical specifications : | |||
| Channel | Output Port | Frequency range | Average out-putting power |
| 1 | RC2.4G | 2400-2500MHz | 50dbm /100W |
| 2 | RC 868 ,912 and 916 | 868-916 433MHz | 50dbm /100W |
| 3 | RC433 434 435 Or 315 | 430-440 or 433 MHz | 47dbm /50W |
| 4 | RC5.8G | 5725-5850MHz | 47dbm /50W |
| 5 | GPSL2+L5 | 1170-1280MHz | 47dbm /50W |
| 6 | GPSL1 +GlonassL1 | 1560-1620 MHz | 47dbm /50W |
| Power supply: AC adapter 50 to 60Hz, (110 or 240V AC to 27V DC) | |||
| Dimensions: 740x510x 350mm | |||
|
Packing size: 1000*700*600mm Net weight: 55kg Gross weight: 55kg +10 kg Antennas =65 kg Working temperature: -30 -60 ℃ |
|||
|
Total power: 400W Shielding radius: (300-1500) meters at -75dBm Still depends on the strength signal in given area Shielding radius of VHF/UHF signal should be lesser than cell phone signal |
|||
| Warranty: one year from delivery date | |||
|
OMNI FRP antenna: Dimensions: 500x 30x30mm Net weight: 0.5kg Gains: 5-10dBi VSWR >1.5 H: 180º V: 20 º |
|||
|
Basic station directional antenna: Dimensions: 125x25x8.5cm Net weight: 10kg Gains: 12-20dBi VSWR >1.5 H: 60-90º V: 20-30º |
OEM Customized service:
Frequency Range can be customized: 4GLTE Wimax, Wi-Fi 2.4G,5.8G,3.6GHz, GPSL1-L5 and more.
Silkscreen OEM service can be offered.
Applications:
o It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and morePlaces that require silence, confidentiality and information security
o For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
