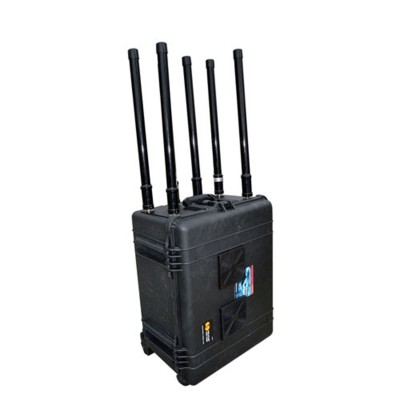

400 W High Power VIP Convoy Cell Phone Signal Jammer , 2G/3G/4G with Pelican Case Portable Signal Jammer
$1.00 /Piece
Product Details
Transaction Comments
One of the 400W portable mobile phone 6 bands with pelican case 1620 jammer, up to 350m, omnidirectional antennas used,High power mobile phone jammer which is currently presented on the market .
Advantages:
★Each unit can jam up to 6 frequency bands, Each frequency band is separate and with adjustable power from max to off (0)
★100% safe VSWR over protection for each modular

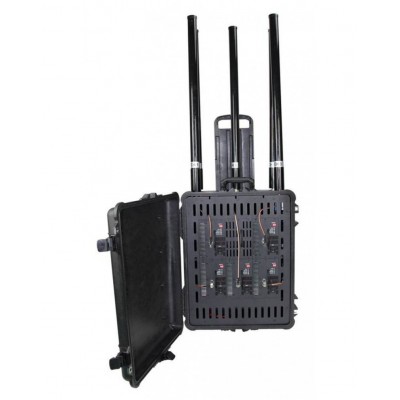

★Good cooling system with heat sink and 30 pieces fans inside with pelican case 1620, carry out
★Built-in battery 27V/56Ah continue working 1.5 hours, working status indicator for each band modular.
| Key Technical specifications : | |||
| Channel | Output Port | Frequency range | Average out-putting power |
| 1 | CDMA or GSM | 850-894 or 925-960MHz | 50dBm/100W |
| 2 | PCS or DCS | 1920-1990 or 1805-1880MHz | 47dBm/50W |
| 3 | 3G | 2110-2170MHz | 47dBm/50W |
| 4 | 4G LTE 2600 | 2500-2690 MHz | 47dBm/50W |
| 5 | 4G LTE 700 | 700-803 or 790-862MHz | 50dBm/100W |
| 6 | Wi-Fi 2.4G+4G2300 | 2345-2500MHz | 47dBm/50W |
| The below frequencies you can instead of above one to combined 6 bands | |||
|
Option |
Wi-Fi 5.2G | 5100-5500MHz | 47dBm/50W |
| Wi-Fi 5.8G | 5500-5580MHz | 47dBm/50W | |
| Wi-Fi 3.6G | 3500-3600MHz | 47dBm/50W | |
| GPSL1 | 1570-1580MHz | 47dBm/50W | |
| GPSL2+L5 | 1170-1280MHz | 47dBm/50W | |
| LoJack and XM radio | 167-175MHz | 47dBm/50W | |
| VHF | 130-174MHz | 47dBm/50W | |
| UHF | 400-470MHz | 47dBm/50W | |
| UHF2 | 190-300MHz | 47dBm/50W | |
| UHF3 | 300-400MHz | 47dBm/50W | |
| 4G1 LTE 850 | 790-862MHz | 50dBm/100W | |
| GSM | 925-960MHz | 47dBm/50W | |
| DCS | 1805-1880MHz | 47dBm/50W | |
|
Power supply: AC adapter 50 to 60Hz, (110 AC or 240-27V DC) Battery: 27V/56Ah |
|||
| Dimensions: (L) 630 * (W) 500 * (H) 350mm (not include antenna) | |||
|
Packing size: 800 x 700 x 600mm Net weight: 50kg Gross weight: 50 + 6kg antennas =56kg Working temperature: -30 to 60°C |
|||
|
Total power: 400W Shielding radius: (50-350) meters at 75dBm Still depends on the strength signal in given area Shielding radius of VHF/UHF signal should be lesser than cell phone signal |
|||
| Warranty: one year from delivery date | |||
Packing contents:
1 piece desktop jammer
1 PC AC 110 or 220V DC 12V or 27V 20A power supplier
6 pieces antennas Omni 500mm long
Additional options:
- Directional external patch panel antennas
- Omni car magnetic antenna bases
OEM customized service:
All 8 frequency modules we can mix very flexible
Options: remote/alarm control 315MHz, 433MHz, 920-965MHz, GPS L1 L2 L3 L4 L5, LoJack 173MHz, 4G 700-800MHz (USA), UHF, VHF, SAT satellite phones 1520-1670MHz.Any combinations and customizations are possible, just send us your inquiry and we will give you our recommendation
