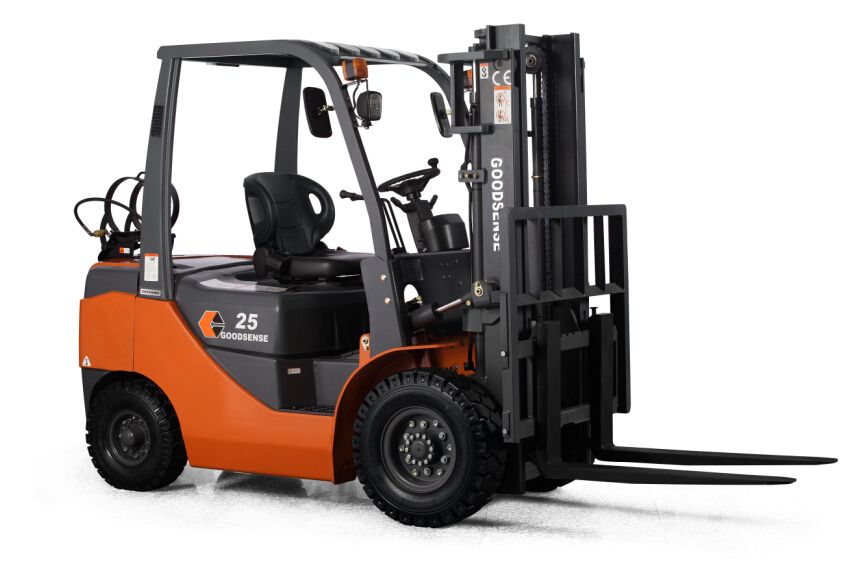

2.5ton Gasoline & LPG Forklift Truck Nissan Engine with CE
$10000.00 /piece
Product Details
Transaction Comments
Basic Info
- Model NO.: FY25
- Transport Package: In The Nude
- Origin: Taizhou, Zhejiang
- Trademark: GOODSENSE
- Specification: CE/SGS
- HS Code: 84272090
Product Description
Capacity: 2500KG
Engine: Nissan K25
Transmission: Automatic
Tyre: Pneumatic
Wide-view mast, solid overhead guard,
Ergonomic adjustable steering wheel and seat.
Engine: Nissan K25
Transmission: Automatic
Tyre: Pneumatic
Wide-view mast, solid overhead guard,
Ergonomic adjustable steering wheel and seat.
| General | 1 | Model | FY25 | |||
| 2 | Power Type | Gasoline/LPG | ||||
| 3 | Rated Capacity | kg | 2500 | |||
| 4 | Load Centre | mm | 500 | |||
| Characteristic& Dimension | 5 | Lift Height | mm | 3000 | ||
| 6 | Free lift height | mm | 120 | |||
| 7 | Fork Size | L× W× T | mm | 1070× 122× 40 | ||
| 8 | Mast Tilt Angle | F/R | Deg | 6° /12° | ||
| 9 | Front Overhang (Wheel center to fork face) | mm | 482 | |||
| 10 | Rear overhang | mm | 448 | |||
| 11 | Ground Clearance | mm | 110 | |||
| 12 | Overall Dimension | Length to face of fork(Without fork) | mm | 2530 | ||
| 13 | Overall Width | mm | 1150 | |||
| 14 | Mast Lowered Height | mm | 1985 | |||
| 15 | Mast Extended Height(With backrest) | mm | 4030 | |||
| 16 | Overhead Guard Height | mm | 2070 | |||
| 17 | Turning Radius (outside) | mm | 2240 | |||
| 18 | Min. right angle asisle width | mm | 2000 | |||
| Performance | 19 | Speed | Travel (No load) | km/h | 20 | |
| 20 | Lifting (Full load) | mm/s | 490 | |||
| 21 | Lowering(Full load) | mm/s | 450 | |||
| 22 | Max. Drawbar Pull(Full load) | kn | 13.5 | |||
| 23 | Max. Gradeability (No load/Full load) | % | 20 | |||
| Chassis | 24 | Tire | Front | mm | 7.00-12-12PR | |
| 25 | Rear | mm | 6.00-9-10PR | |||
| 26 | Tread | Front | mm | 970 | ||
| 27 | Rear | mm | 970 | |||
| 28 | Wheelbase | mm | 1600 | |||
| 29 | Self weight | kg | 3730 | |||
| Power& Transmission | 30 | Battery | Voltage/Capacity | V/Ah | 12/90 | |
| 31 | Engine | Model | K25 | |||
| 32 | Manufacture | NISSAN | ||||
| 33 | Rated output/r. p. m. | kw | 37.4/2300 | |||
| 34 | Rated torque/r. p. m. | N@ m | 176.5/1600 | |||
| 35 | No. of Cylinder | 4 | ||||
| 36 | Bore× Stroke | mm | 89× 100 | |||
| 37 | Displacement | cc | 2488 | |||
| 38 | Fuel Tank Capacity | L | 60 | |||
| 39 | Transmission | Type | Powershift | |||
| 40 | Stage | FWD/RVS | 1/1 | |||
