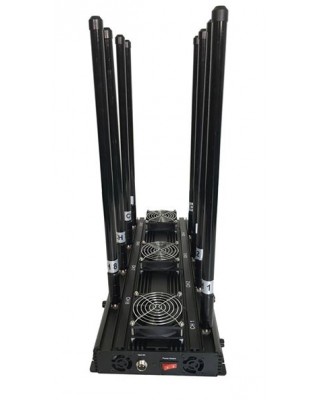

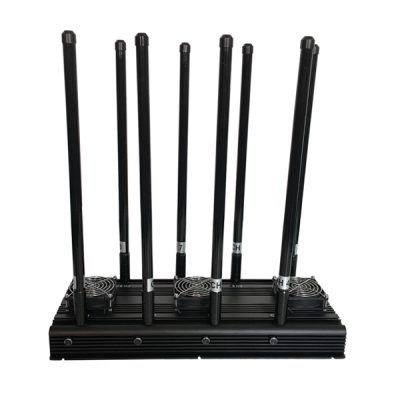

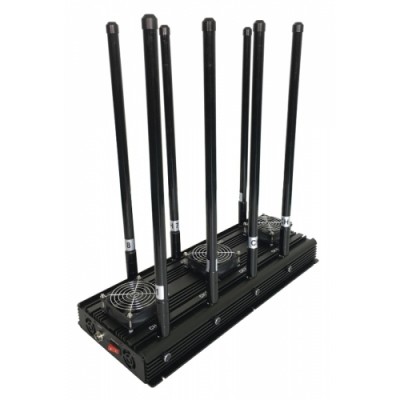

170 Watt 8 Bands High Power Cell Phone Signal Jammer 3G 4G WIFI GPS LOJACK Blocker Jamming up to 150m
$1.00 /Piece
Product Details
Transaction Comments
Product Description:
The one is professional high power mobile phone jammer for 4G cellular phones, Cellphone 3G 4GLTE/WIMAX Wi-Fi UHF VHF Signal jammer which are currently presented on the market. Also is Medium RF power Drone jammer model with 8 antennas 7 cooling fan non-stop working.
Basic Specifications:
Jam Signal Type：
1: D8-W :Mobile phone 2G+3G+4G +WIFI2.4G +UHF+VHF Signals
2: D8-G :Mobile phone 2G+3G+4G +WIFI2.4G +GPSL1L2L5 Signals
3: D8-LG :Mobile phone 2G+3G+4G +GPSL1L2L5+LOJACK Signals
4: D8-5G :Mobile phone 2G+3G+4G +WIFI2.4G +5.8G+GPSL1 Signals
Output Power：Total 160W-180W，10-25W each band
Jam Radius：50-150 meters (GPS signal for 500m)
Power Supply：AC110-240V to DC27V
Cooling System：High efficiency aluminum alloy radiator+ 7X cooling fans
Working Time：Not-stop Working
Product Size：550x 238 x 60 mm（not Include Antenna）
Product Weight: appr.10kg ( for normal OMNI antennas)

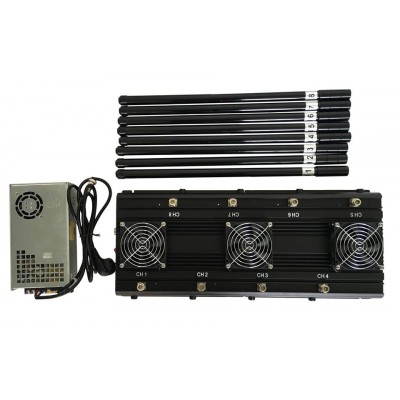

Package Contents：Jammer Host x 1, Adapter x 1, antenna x8,
Advantages:
★Each unit can jam up to 8 frequency bands simultaneously, each frequency band is separate and with adjustable power from max to off (0), LED indicator lights display power supply
★100% safe VSWR over protection (isolator) for each modular
★Good cooling system with Heat sink and 3 big on top fans + 4 x small inside, low noise, not-stop to work.
| Key Technical specifications : JAM-D8-W | |||
| Channel | Output Port | Frequency range | Average out-putting power |
| 1 | CDMA or GSM | 851-894 or 925-960MHz | 44dbm / 25W |
| 2 | DCS/PCS | 1805-1990MHz | 43dbm / 20W |
| 3 | 3G | 2110-2170MHz | 43dbm / 20W |
| 4 | 4GLTE | 700-803 or 790-862MHz | 44dbm / 25W |
| 5 | 4G WIMAX | 2500-2690 or 2300-2400MHz | 43dbm / 20W |
| 6 | WIFI2.4G | 2400-2500MHz | 43dbm / 20W |
| 7 | VHF | 130-174MHz | 44dbm / 25W |
| 8 | UHF | 400-470MHz | 44dbm / 25W |
| Power supply: AC adapter 50 to 60Hz, (AC110 or 240V to DC27V) | |||
| Dimension: (length, width, height) 550*230*60mm(Not include antenna) | |||
| Package Size: 650 x 440x 200mm N.W:8kg G.W:10kg(Use OMNI antennas) | |||
|
Total Power:170W Shielding Radius: (50-150) meters@-75dBm. Still depends on the strength signal in given area. The shielding radius of VHF/UHF signal should be lesser than cell phone signal. |
|||
| Warranty: one year from delivery date | |||
|
OMNI FRP Antenna： Dimension: (length, width, height,): 500x 30 x 30mm N.W:0.5Kg Gains:5-10dbi VSWR》1.5 H:180º V:20 º |
|||
|
Panel Directional Antenna： Dimension: (length, width, height,): 21x 18 x 5cm N.W:0.5Kg Gains:5-10dbi VSWR》1.5 H:60-90º V:20-30º |
|||
| Key Technical specifications : JAM-D8-G | |||
| Channel | Output Port | Frequency range | Average out-putting power |
| 1 | CDMA or GSM | 851-894 or 925-960MHz | 44dbm / 25W |
| 2 | DCS/PCS | 1805-1990MHz | 43dbm / 20W |
| 3 | 3G | 2110-2170MHz | 43dbm / 20W |
| 4 | 4GLTE | 700-803 or 790-862MHz | 44dbm / 25W |
| 5 | 4G WIMAX | 2500-2690 or 2300-2400MHz | 43dbm / 20W |
| 6 | GPSL1 | 1570-1610MHz | 43dbm / 20W |
| 7 | GPSL2+L5 | 1170-1280MHz | 43dbm / 20W |
| 8 | WIFI2.4G | 2400-2500MHz | 43dbm / 20W |
| Power supply: AC adapter 50 to 60Hz, (AC110 or 240V to DC27V) | |||
| Dimension: (length, width, height) 550*230*60mm(Not include antenna) | |||
| Package Size: 650 x 440x 200mm N.W:8kg G.W:10kg(Use OMNI antennas) | |||
|
Total Power:170W Shielding Radius: (50-150) meters@-75dBm. Still depends on the strength signal in given area. The shielding radius of VHF/UHF signal should be lesser than cell phone signal. |
|||
| Warranty: one year from delivery date | |||
|
OMNI FRP Antenna： Dimension: (length, width, height,): 500x 30 x 30mm N.W:0.5Kg Gains:5-10dbi VSWR》1.5 H:180º V:20 º |
|||
|
Panel Directional Antenna： Dimension: (length, width, height,): 21x 18 x 5cm N.W:0.5Kg Gains:5-10dbi VSWR》1.5 H:60-90º V:20-30º |
|||
| Key Technical specifications : JAM-D8-LG | |||
| Channel | Output Port | Frequency range | Average out-putting power |
| 1 | CDMA or GSM | 851-894 or 925-960MHz | 44dbm / 25W |
| 2 | DCS/PCS | 1805-1990MHz | 43dbm / 20W |
| 3 | 3G | 2110-2170MHz | 43dbm / 20W |
| 4 | 4GLTE | 700-803 or 790-862MHz | 44dbm / 25W |
| 5 | 4G WIMAX | 2500-2690 or 2300-2400MHz | 43dbm / 20W |
| 6 | GPSL1 | 1570-1610MHz | 43dbm / 20W |
| 7 | GPSL2+L5 | 1170-1280MHz | 43dbm / 20W |
| 8 | LOJACK | 167-175MHz | 44dbm / 25W |
| Power supply: AC adapter 50 to 60Hz, (AC110 or 240V to DC27V) | |||
| Dimension: (length, width, height) 550*230*60mm(Not include antenna) | |||
| Package Size: 650 x 440x 200mm N.W:8kg G.W:10kg(Use OMNI antennas) | |||
|
Total Power:170W Shielding Radius: (50-150) meters@-75dBm. Still depends on the strength signal in given area. The shielding radius of VHF/UHF signal should be lesser than cell phone signal. |
|||
| Warranty: one year from delivery date | |||
|
OMNI FRP Antenna： Dimension: (length, width, height,): 500x 30 x 30mm N.W:0.5Kg Gains:5-10dbi VSWR》1.5 H:180º V:20 º |
|||
|
Panel Directional Antenna： Dimension: (length, width, height,): 21x 18 x 5cm N.W:0.5Kg Gains:5-10dbi VSWR》1.5 H:60-90º V:20-30º |
|||
| Key Technical specifications : JAM-D8-5G | |||
| Channel | Output Port | Frequency range | Average out-putting power |
| 1 | CDMA or GSM | 851-894 or 925-960MHz | 44dbm / 25W |
| 2 | DCS/PCS | 1805-1990MHz | 43dbm / 20W |
| 3 | 3G | 2110-2170MHz | 43dbm / 20W |
| 4 | 4GLTE | 700-803 or 790-862MHz | 44dbm / 25W |
| 5 | 4G WIMAX | 2500-2690 or 2300-2400MHz | 43dbm / 20W |
| 6 | GPSL1 | 1570-1610MHz | 43dbm / 20W |
| 7 | WIFI2.4G | 2400-2500MHz | 43dbm / 20W |
| 8 | WIFI5.8G | 5725-5850MHz | 40dbm / 10W |
| Power supply: AC adapter 50 to 60Hz, (AC110 or 240V to DC27V) | |||
| Dimension: (length, width, height) 550*230*60mm(Not include antenna) | |||
| Package Size: 650 x 440x 200mm N.W:8kg G.W:10kg(Use OMNI antennas) | |||
|
Total Power:160W Shielding Radius: (50-150) meters@-75dBm. Still depends on the strength signal in given area. The shielding radius of VHF/UHF signal should be lesser than cell phone signal. |
|||
| Warranty: one year from delivery date | |||
|
OMNI FRP Antenna： Dimension: (length, width, height,): 500x 30 x 30mm N.W:0.5Kg Gains:5-10dbi VSWR》1.5 H:180º V:20 º |
|||
|
Panel Directional Antenna： Dimension: (length, width, height,): 21x 18 x 5cm N.W:0.5Kg Gains:5-10dbi VSWR》1.5 H:60-90º V:20-30º |
|||
OEM Customized service:
Frequency Range can be customized: 4GLTE Wimax, Wi-Fi 2.4G,5.8G,3.6GHz, GPSL1-L5 and more
Silkscreen OEM service can be offered.
Applications:
o It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and morePlaces that require silence, confidentiality and information security
o For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
