FOTON AUMARK 4*2 LHD refrigerated truck customized for bag milk transportation adopts FOTON AUMARK S series 2060mm single row driver cab, 3800mm wheelbase, F3.8s3141 Cummins 104KW/141hp Euro Ⅲ diesel engine, 3.6tons front axle/6.5T rear axle, 8.25R20 rail tires*6+1, 6S558 ZF 7 speed lever with six speed forward and one reverse manual gearbox, air cut braking, 24V electric, 9/8+6 steel spring, etc.
The overall dimension (L*W*H) of the FOTON AUMARK 4*2 LHD refrigerated truck is 7015×2300×3420(mm); while the cold van box dimension(L*W*H): 5000×2200×2300
(mm). Clients choose to install High quality USA Carrier brand vehicle-powered reefer unit (reefer unit model: C-500), the lowest temperature up to -10 ℃, adjusted at the driver cab).
If you're interested in our refrigerated truck, please send email to truck0011@163.com or talk to Anitaby Whatsapp: 0086 13329899995.

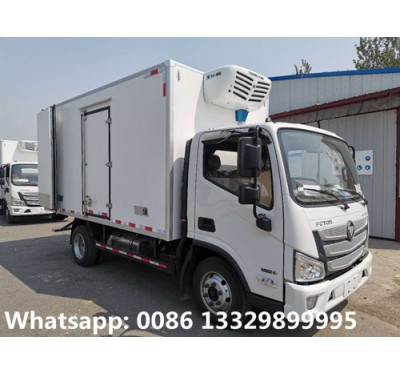

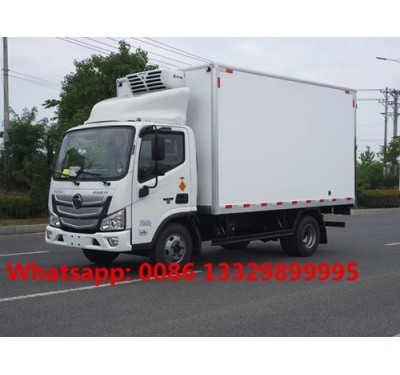

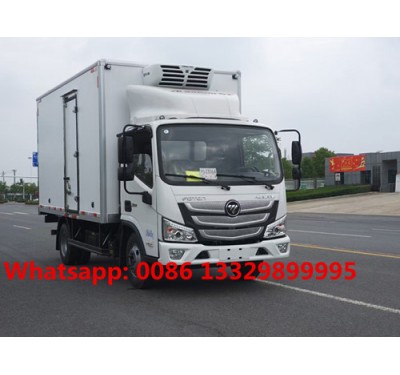

More pictures of FOTON AUMARK 5T refrigerated truck for sale,
main technical parameters of FOTON AUMARK 5T refrigerated truck for sale,
|
Items |
Descriptions |
Specifications and Types |
|
General |
Truck Name |
FOTON AUMARK 4*2 LHD diesel refrigerated truck for sale |
|
Drive Type |
4*2 LHD |
|
|
Total mass(kgs) |
8275 |
|
|
Curb mass(kgs) |
4000 |
|
|
Rated mass(kgs) |
4080 |
|
|
Overall Dimensions (mm) |
7015×2300×3420 (mm) |
|
|
Driver cab |
FOTON AUMARK 2060mm single row driver cab with 3 seats(driver cab included) |
|
|
Engine |
Engine Model |
ISF3.8s3141 |
|
Engine Brand |
FOTON CUMMINS |
|
|
Fuel Type |
Diesel |
|
|
Rated power(KW/hp) |
104KW/141hp |
|
|
Cylinders nos. |
4 cylinders |
|
|
Emission Standard |
Euro Ⅲ |
|
|
Capacity (cc) |
3760 |
|
|
Chassis |
Chassis Brand |
FOTON |
|
Tire Specification |
8.25R20 (RADIAL) |
|
|
Wheelbase (mm) |
3800 |
|
|
Axle No. |
2 |
|
|
Front/Rear axle |
3.6ton front axle/6.3ton rear axle |
|
|
Steering Wheel |
Left hand drive |
|
|
Gear Box |
6S558 ZF 7 speed lever with six speed forward and one reverse, manual gearbox |
|
|
Brake |
Air brake |
|
|
Steel spring |
9/8+6 |
|
|
Electric |
24V |
|
|
Air-conditioner |
No, choose to install air conditioner |
|
|
Cold Room |
Box inner dimension(mm) |
5000×2200×2300 (mm) |
|
Box Side |
Exterior and interior with FRP(fiber Reinforced Plastic), and the middle with 80mm PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. |
|
|
Box Floor |
Baseboard adopts aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. |
|
|
Doors |
Frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc. The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability. Door edgings, door locks and accessories use stainless steel materials. |
|
|
Refrigerator Unit |
Refrigeration unit |
Choose high quality USA Carrier brand vehicle-powered reefer unit (reefer unit model: C-500), the lowest temperature up to -10℃, adjusted at the driver cab).
|
