polyimide silicon tape
$30.00 /Kilogram
Product Details
Transaction Comments

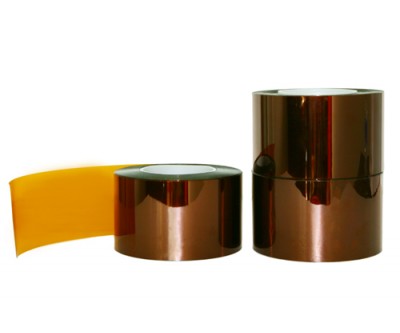

| Polyimide Silicon Tape | ||||||||
| Polyimide Silicon Tape is based on polyimide film as base material and coated silicon series adhesive | ||||||||
| to be made of high temperature resistant single surface pressure sensitive adhesive tape, suitable for use | ||||||||
| in PCB shielding protection and insulation protection. | ||||||||
| Properties | ||||||||
| No. | Item | Unit | PST Tape | |||||
| 1 | Total Thickness | um | 60 | |||||
| 2 | Structure | PI | um | 25 | ||||
| Silicon | um | 35 | ||||||
| 3 | Peel Strength | N/25mm | ≧5.2 | |||||
| 4 | Tensile strength | Mpa | ≧135 | |||||
| 5 | Elongation at break | % | ≧50 | |||||
| 6 | Breakdown voltage | V/um | ≧6000 | |||||
| 7 | Working temperature | oC | -73 ~ 260 | |||||
