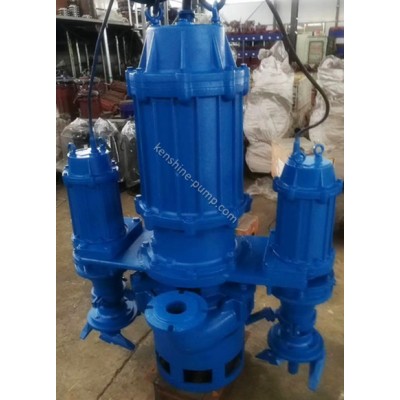

ZJQ Submersible slurry pump with agitator

ZJQ Series submersible slurry pump is a kind of hydraulic mechanism which motor connects directly with pump. Pump body is the advanced structure of below suction type with stirrer and made from high-chrome alloy material and convenient to remove and install.  So the pump is not clogging,corrosion-resistance,wear-resistance etc.   The pumps are centrifugal, vertical slurry pumps submerged in sump during operation. They are designed for delivering highly abrasive, large particles and high density slurries. The sump pumps are suited for handling abrasive or corrosive, dense slurry with large particle size.

 Application: 2.It is widely used to transport various corrosive slurry in metallurgy,mine, coal mine,construct,petrochemical industry, environment protect and drege of river channel The vertical slurry pumps are designed for delivering abrasive, large particle and high-density slurries and applied over the fields such as metallurgy, mining, coal, power, building materials, and environmental protection
3.(1).Power sources: Three-phase AC 380V 50HZ. (2).The medium temperature should not exceed 40℃ ,medium don't contain flammable and explosive gas . (3).Solid granule max. thickness in medium: grey sediment for 45% ,mineral sediment for 60%.  (4).Motor and pump max. dive depth should not exceed 20M ,min. dive depth should not exceed 1M. (5).The best motor and pump is vertical ,operate method is continuous operation.  4.Capability parameter area: Capacity:30~1450m3/h Head:15~95m， Max. dia. of granule should not exceed 92MM
