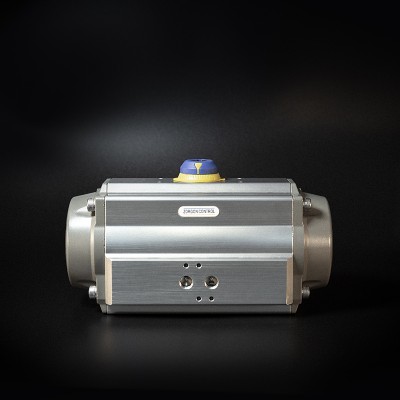

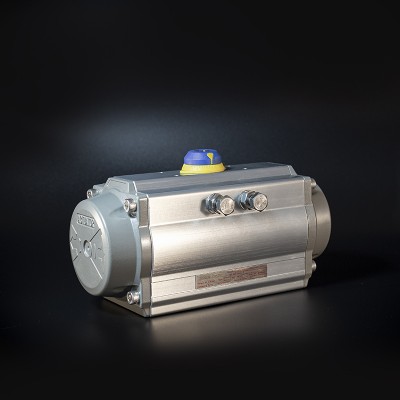

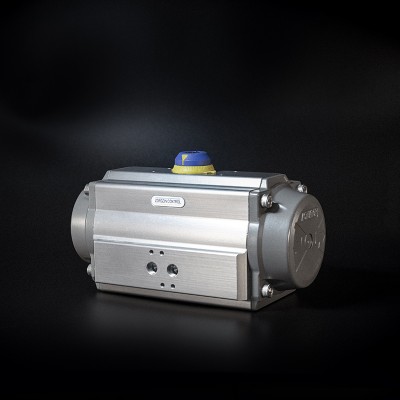

ZG-ATM series valve pneumatic actuator

Through optimized and innovative design, a large number of new materials and new processes are used in ZG-ATM series valve pneumatic actuator to make the product quality more reliable. Multi-specification selection is more economical. All series of products are strictly in accordance with the latest international standard technical specifications Manufactured to fully meet any usage requirements.

1. The extruded high-quality aluminum alloy cylinder body is hard anodized on the inner hole and outer surface processed by the precision machining center.
2. ZG-ATM has high precision, high speed and stability, and long service life because of the structure design of the double-piston rack and pinion. By simply changing the assembly position of the piston, the rotation direction of the cylinder can be changed on-site.
3. The two independent stroke adjustment screws on the outside can make convenient and accurate +/-5° adjustments in two directions so that the actuator is consistent with the valve position in the fully open position and the fully closed position.
4. The universal, anti-fracture, nickel-plated output gear shaft can facilitate the mutual conversion of octagonal and round shaft holes, making the material preparation less and more flexible.
5. Because of one-piece compact design, double-acting and spring-return single-acting actuator models both have the same cylinder, piston, and end cover. By adding or removing springs, we can easily perform the on-site conversion.
6. Multi-function position indicator, on-site visual indication and all accessories can be easily and simply installed.
7. Combined reserved spring seat and unique O-ring design are suitable for various occasions. They will make the actuator safer and more corrosion-resistant.
8. High-precision tooth profile on the gear and rack: The tooth engagement gap between the gear and the rack is smaller and more precise and the output power is larger.
9. Select high-quality support rings to reduce the friction coefficient of O-rings. So that the actuator will has long service life and a wide range of operating temperatures.
10. The actuator has long-term corrosion-resistant internal and external stainless steel standard parts.
11. The actuator is fully comply with the latest international standards: IS05211, D1N3337, and VD1/VDE3845 and good interchangeability which is convenient for the installation and use of solenoid valves, limit switches, and other accessories.
