Summary:

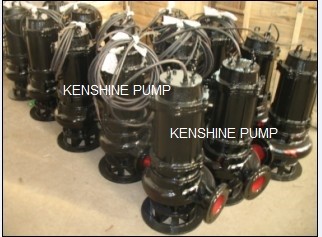

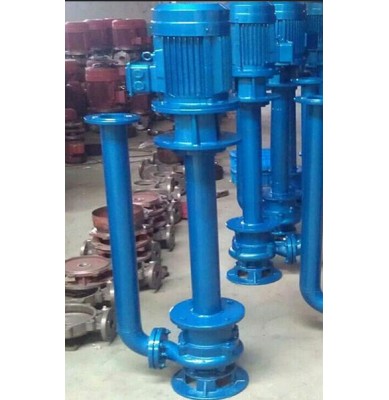

YW Submersible sewage pump adopts a unique single (double) channel impeller and improves the sewage discharge. The pump can be used to transfer the waste water with fiber diameter 5 times as pump diameter or the solid particles diameter 50% as the pump diameter. Dynamic seal is for hard alloy mechanical seal and pump material is for cast iron or stainless steel.
Characteristics:
1. Double channel impeller structure is adopted to greatly improve the passing capacity of pollutants
2. The mechanical seal adopts a new type of friction pair and operates in the oil house for a long time;
3. Compact structure, small volume, low noise, significant energy saving effect, convenient maintenance and user replacement;
4, automatic control cabinet can be required according to the liquid level change, automatic control of the pump overshoot and stop, do not need to be watched by a special person, it is very convenient to use;
5. The installation method can be equipped according to the needs of users, which is greatly convenient for installation and maintenance. People do not need to enter the sump for this purpose;
6, can be used in the design range, and ensure that the motor will not overload;
7. If the pump is equipped with outdoor motor, there is no need to build a pump room, which can be directly installed and used outdoors to save money;
Application:
YW non-clog submerged pump is suitable for the seriously polluted wastewater emissions in factory and business zone, residential sewage at wastewater station, urban sewage treatment plant water system, civil air defense system drainage stand, waterworks water supply equipment, hospital, hotel of sewage, municipal engineering, construction, mining machine, rural biogas digester, irrigation and other industries, sewage containing particles, dirt, and can also be used for water and weak corrosive medium
Operation environments:
A, environment temperature is no higher than 40 degree Celsius and humidity is no more than 95% and altitude is not more than 1,000 meters.
B, medium temperature is less than 60 ℃, medium density is for 1 ~ 1.3 kg/dm3.
C. cast iron pump is for liquids with PH5 ~ 9.
D. General corrosive media can be used for stainless steel.
E. Altitude shall be no more than 1000 meters . If the above conditions are exceeded, it shall be proposed at the time of ordering, so as to provide you with more reliable products.
Parameter:
| Model | Caliber | Flow rate | Head | Speed | Motor Power | Efficiency |
| mm | m3/h | M | r/min | kw | % | |
| 25-8-22-1.1 | 25 | 8 | 22 | 2900 | 1.1 | 45 |
| 32-12-15-1.1 | 32 | 12 | 15 | 2900 | 1.1 | |
| 40-15-15-1.5 | 40 | 15 | 15 | 2900 | 1.5 | 54 |
| 40-15-30-2.2 | 40 | 15 | 30 | 2900 | 2.2 | 54 |
| 50-20-7-0.75 | 50 | 20 | 7 | 2900 | 0.75 | 51 |
| 50-10-10-0.75 | 50 | 10 | 10 | 2900 | 0.75 | 52 |
| 50-20-15-1.5 | 50 | 20 | 15 | 290 | 1.5 | 53 |
| 50-15-25-2.2 | 50 | 15 | 25 | 2900 | 2.2 | 54 |
| 50-18-30-3 | 50 | 18 | 30 | 2900 | 3 | 55 |
| 50-40-15-4 | 50 | 40 | 15 | 2900 | 4 | 55 |
| 50-25-32-5.5 | 50 | 25 | 32 | 2900 | 5.5 | 55 |
| 50-20-40-7.5 | 50 | 50 | 20 | 2900 | 7.5 | 58 |
| 65-25-15-2.2 | 65 | 25 | 15 | 2900 | 2.2 | 50 |
| 65-37-13-3 | 65 | 37 | 13 | 2900 | 3 | 57 |
| 65-25-30-4 | 65 | 25 | 30 | 2900 | 4 | 61 |
| 65-30-40-7.5 | 65 | 30 | 40 | 2900 | 7.5 | 56 |
| 65-35-50-11 | 65 | 35 | 50 | 2900 | 11 | 45 |
| 65-35-60-15 | 65 | 35 | 60 | 2900 | 15 | 65 |
| 80-60-13-5.5 | 80 | 60 | 13 | 2900 | 5.5 | 67 |
| 80-40-7-2.2 | 80 | 40 | 7 | 1450 | 2.2 | 59 |
| 80-43-13-3 | 80 | 43 | 13 | 2900 | 3 | 70 |
| 80-40-15-4 | 80 | 40 | 15 | 2900 | 4 | 61 |
| 80-65-25-7.5 | 80 | 65 | 25 | 2900 | 7.5 | 63 |
| 100-80-10-4 | 100 | 100 | 10 | 1450 | 4 | 65 |
| 100-110-10-5.5 | 100 | 110 | 10 | 1450 | 5.5 | 65 |
| 100-100-15-7.5 | 100 | 100 | 15 | 1450 | 7.5 | 68 |
| 100-80-20-7.5 | 100 | 80 | 20 | 1450 | 7.5 | 65 |
| 100-100-25-11 | 100 | 100 | 25 | 1450 | 11 | 70 |
| 100-100-30-15 | 100 | 100 | 30 | 1450 | 15 | 65 |
| 100-100-35-18.5 | 100 | 100 | 35 | 1450 | 18.5 | 68 |
| 125-130-15-11 | 125 | 130 | 15 | 1450 | 11 | 72 |
| 125-130-20-15 | 125 | 130 | 20 | 1450 | 15 | 75 |
| 150-145-9-7.5 | 150 | 145 | 9 | 1450 | 7.5 | 76 |
| 150-180-15-15 | 150 | 180 | 15 | 1450 | 15 | 69 |
| 150-180-20-18.5 | 150 | 180 | 20 | 1450 | 18.5 | 72 |
| 150-180-25-22 | 150 | 180 | 25 | 1450 | 22 | 78 |
| 150-130-30-22 | 150 | 130 | 30 | 1450 | 22 | 78 |
| 150-180-30-30 | 150 | 180 | 30 | 1450 | 30 | 78 |
| 150-200-30-37 | 150 | 200 | 30 | 1450 | 37 | 73 |
| 200-300-7-11 | 200 | 300 | 7 | 980 | 11 | 66 |
| 200-250-11-15 | 200 | 250 | 11 | 1450 | 15 | 64 |
| 200-250-15-18.5 | 200 | 250 | 15 | 1450 | 18.5 | 73 |
| 200-400-10-22 | 200 | 400 | 10 | 1450 | 22 | 75 |
| 200-400-13-30 | 200 | 400 | 13 | 14501 | 30 | 76 |
| 200-300-15-22 | 200 | 300 | 15 | 1450 | 22 | 76 |
| 200-250-22-30 | 200 | 250 | 22 | 1450 | 30 | 71 |
| 200-350-25-37 | 200 | 350 | 25 | 1450 | 37 | 71 |
| 200-400-30-45 | 200 | 400 | 30 | 1450 | 45 | 74 |
| 250-600-9-30 | 250 | 600 | 9 | 980 | 30 | 78 |
| 250-600-12-37 | 250 | 600 | 12 | 1450 | 37 | 76 |
| 250-600-15-45 | 250 | 600 | 15 | 1450 | 45 | 73 |
| 250-600-20-55 | 250 | 600 | 20 | 1450 | 55 | 73 |
| 250-600-25-75 | 250 | 600 | 25 | 1450 | 75 | 71 |
| 300-800-12-45 | 300 | 800 | 12 | 980 | 45 | 74 |
| 300-480-15-45 | 300 | 480 | 15 | 1450 | 45 | 66 |
| 300-800-15-55 | 300 | 800 | 15 | 1450 | 55 | 73 |
| 300-600-20-55 | 300 | 600 | 20 | 1450 | 55 | 73 |
| 300-800-20-75 | 300 | 800 | 20 | 1450 | 75 | 75 |
| 300-950-20-90 | 300 | 950 | 20 | 1450 | 90 | 76 |
| 300-1000-25-110 | 300 | 1000 | 25 | 1450 | 110 | 76 |
| 300-1100-10-55 | 300 | 1100 | 10 | 1450 | 55 | 73 |
| 350-1500-15-90 | 350 | 1500 | 15 | 740 | 90 | 87 |
| 350-1200-18-90 | 350 | 1200 | 18 | 980 | 90 | 85 |
| 350-1100-28-132 | 350 | 1100 | 28 | 980 | 132 | 84 |
| 350-1000-36-160 | 350 | 1000 | 36 | 980 | 160 | 84 |
| 400-1760-7.5-55 | 400 | 1760 | 7.5 | 980 | 55 | 83 |
| 400-1500-10-75 | 400 | 1500 | 10 | 980 | 75 | 86 |
| 400-2000-13-110 | 400 | 2000 | 13 | 980 | 110 | 84 |
| 400-2000-15-132 | 400 | 2000 | 15 | 980 | 132 | 83 |
| 400-1700-22-160 | 400 | 1700 | 22 | 980 | 160 | 83 |
| 400-1500-26-160 | 400 | 1500 | 26 | 980 | 160 | 84 |
| 400-1700-30-200 | 400 | 1700 | 30 | 980 | 200 | 86 |
| 400-1800-32-250 | 400 | 1800 | 32 | 980 | 250 | 82 |
| 500-2500-10-110 | 500 | 2500 | 10 | 740 | 110 | 85 |
| 500-2600-15-160 | 500 | 2600 | 15 | 740 | 160 | 84 |
| 500-2400-22-220 | 500 | 2400 | 22 | 740 | 220 | 85 |
| 500-2650-24-250 | 500 | 2650 | 24 | 740 | 250 | 85 |
