- Model NO.: YD-SB-2500
- Certification: CE
- Control System: Semiautomatic
- Condition: New
- 2.Model: Yd-Sb-2500
- 4.Glass Height(mm): 2500
- 6.Place of Origin: Guangdong China(Mainland)
- 8.Nozzle Moving Speed(M/Min): 5~25
- 10.Weight(Kg): 1700
- Transport Package: Bubble Plastic Bag
- Origin: Shunde of Guangdong China
- Type: Glass Sandblasting Machine
- Structure: Vertical
- Glass Edging Machine Type: Sand Blasting Machine
- 1.Description: Sand Blasting Machine
- 3.Color: Creamy-White/Optional
- 5.Brand Name: Yd
- 7.Glass Transfer Speed(M/Min): 5
- 9.Power(Kw): 4.5kw
- Trademark: YD
- Specification: CE
- HS Code: 84642010
Glass types of sand blasting machine:
| Model Number | YD-SB-1500 | YD-SB-2000 | YD-SB-2500 |
| Glass height(mm) | 1500 | 2000 | 2500 |
| Max.glass size(mm) | 1500×3000 | 2000×3000 | 2500×3000 |
| Min.processing size(mm) | 200×500 | 200×500 | 200×500 |
| Glass transfer speed(m/min) | 5 | 5 | 5 |
| Nozzle moving speed(m/min) | 5-25 | 5-25 | 5-25 |
| Suitable working pressure, continues | 0.6MPa-0.8MPa | 0.6MPa-0.8MPa | 0.6MPa-0.8MPa |
| Suitable air pressure power | 2.4m ²/min 15kw | 2.4m ²/min 15kw | 2.4m ²/min 15kw |
| Power(kw) | 4.5kw | 4.5kw | 4.5kw |
| Outerdimension(m) | 4.5×1.5×2.5 | 7×1.5×2.5 | 8×1.5×3.3 |
| Weight(kg) | 1000 | 1500 |
2000 |
Package and Shipping:
Can be shipped by LCL(Less Than Container Loading) and FCL(Full container loading)
For one machine, it can be packed by one steel palate with parts and shipped by LCL.
Package size:
1. YD-SB-1500(mm) Type: 2400×1800×2200 (with support & dust collector together)
2. YD-SB-2000(mm) Type: 2800×1800×2250 (with support & dust collector together)
3. YD-SB-2500(mm) Type: 3200×1800×2250 (with support & dust collector together)
Questions and answers:
1. How long will it take to manufacture the machine?
Re: 20 days.
2. What kinds of sand it can be used?
Re: The sand is alum sand, grid 60#. We will provide 100kg free and shipped it together with the machine. We can also provide more sand if necessary.
3. How many sand it will use each day?
Re: It will need 25kg-30kg sand per day.
4. How many parts of this machine?
Re: One machine package with tool cabinet,support,dust collector inside.
5. What equipment should prepare for this sandblasting machine?
Re: 1. Air compressor 2. Gas container 3. Filter
6. How many square meters glass can be spray by this machine per day?
Re: 160-200 m²/day.

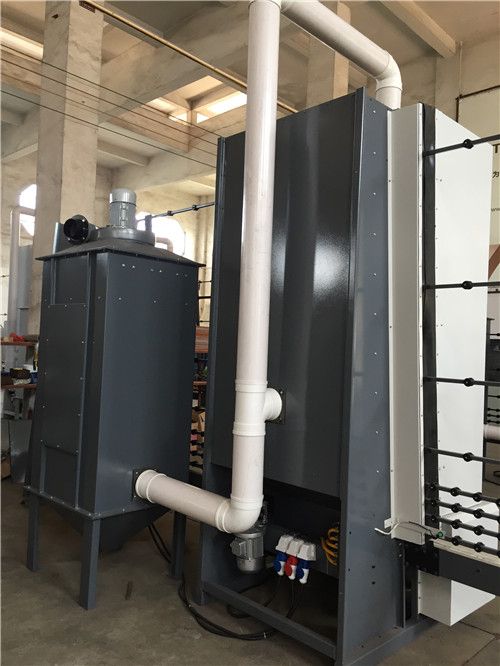

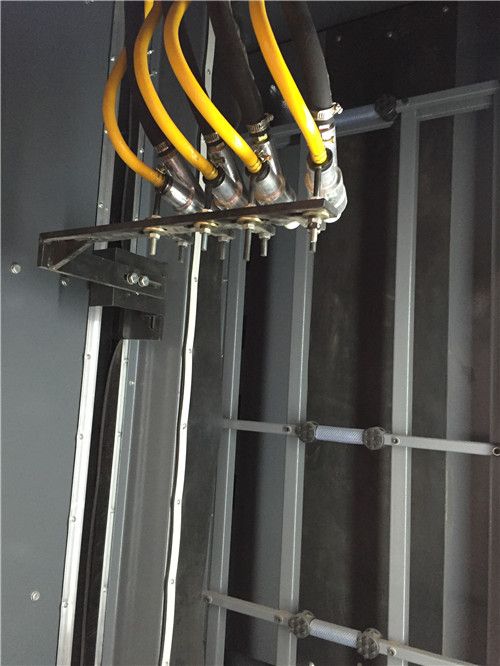

Machine photos and loading:Order steps:
FAQ
Q: Are you manufactory or trade company?
A:We are manufacturer.
Q: How long is the production lead time?
A: Production lead time 30-40 days.
Q: What's the MOQ of the products?
A: 1 set.
Q: Which kind of certificate would you have?
A: European Union CE SGS
Q: How to contact with us?
A: 24 hours technical support by e-mail or on line ,
Guarantee and After-sale Service:- One year guarantee for whole machine.
- Use-friendly English software, user manual and detailed Videos/CD.
- We will provide all spare parts needed for maintenance of the equipment.
- Professional after-sales service team support face-to-face training and installation to customer's factory.
Why choose Ladglass?
1. LADGLASS MACHINES Widely used in different industry
2. High precision and reputation
3. CE Certificate High quality parts
4. Competitive price
5. Fast delivery
6. Best service
Welcome your inquiry and good business to you!
