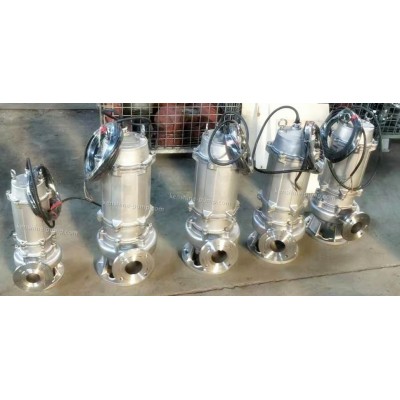

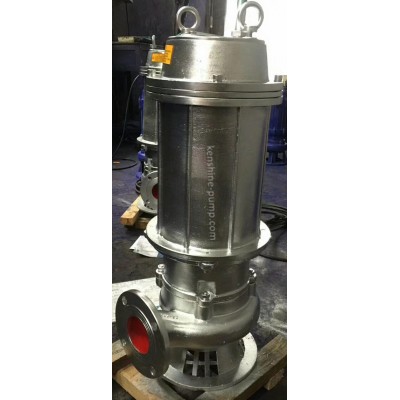

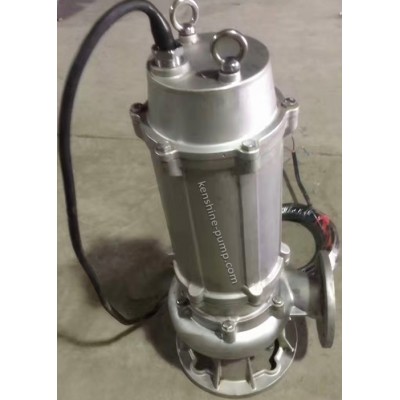

WQ series submersible sewage pump is a domestic automatic control submersible pump, which has unique functions in discharging wastewater or waste liquids with solid particles and long fiber etc impurity. WQ pumps discharging outlet :50 to 600mm, flow:10 to 7000m3/h, head :5 to 60m, power: 1.5 to 315KW, the solid particle diameter from liquids: 20 to 145mm.

WQ submersible sewage pump is mainly used in municipal engineering, industry, hospital, construction, hotel, hotel and other industries. WQ submersible sewage pump is used to discharge sludge, waste water and municipal sewage (including corrosive and corrosive medium) with solid and various long fibers.

WQ submersible sewage pump has the small size, compact structure and high in efficiency. It can automatically control the water level according to the requirements of users. It is equipped with automatic protection device, control cabinet and double guide rail automatic installation system etc.

1. The rated voltage of the motor is 380V, and the frequency is 50HZ three-phase ac power supply.
2. The temperature of conveying medium shall not exceed 40 degree Celsius. The high temperature type can be up 100 degree Celsius.

3. The PH value of liquid medium is 4-10.

4. The solid phase volume ratio in the transport medium is less than 2%.

5. The density of conveying medium is less than 1.2×103Kg/m3
