- Model NO.: LBP2000
- Certification: CE
- Control System: PLC
- Glass Edging Machine Type: No Edging Machine
- Condition: New
- Max Glass Sheet Size: 2000X3000mm
- Transmission Speed: 10-45m/Min
- Certifications: Ce
- Brushes: 3 Pair
- Model: LBP2000
- Transport Package: Plastic Film and in Wooden Cases
- Origin: Jinan, Shandong
- Type: Insulating Glass Production Line
- Structure: Vertical
- Glass Washing Machine Type: Ultrasonic Glass Washing Machine
- Grinding Head Number: 0
- Glass Thickness: 3-12mm
- Power: 28kw
- Weight: 7000kg
- Outside Dimension: 18500*2580*3120mm
- Power Supply: 380V 50Hz
- Trademark: Bohman
- Specification: 18500*2580*3120mm
- HS Code: 84752990

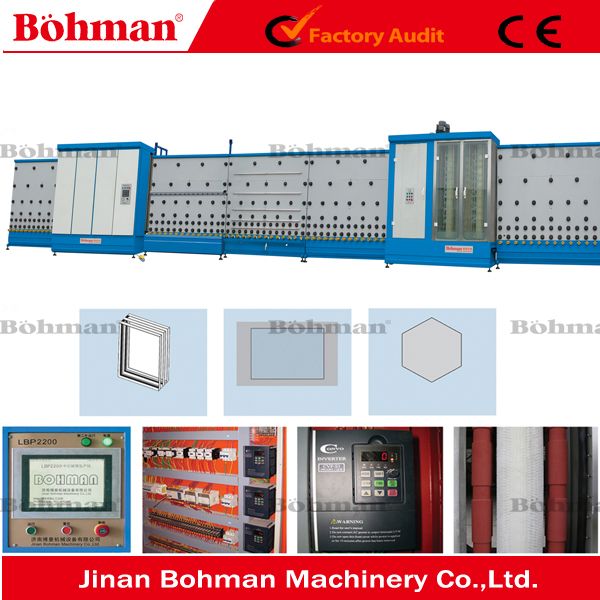

Our Advantages
1. PLC control system, touch screen interface
2. Coating & Low-E glass automatic identification
3.Hierarchical type washing system
4. Water tank automatic temperature control, water replenishing system
5. Stainless steel drying system
6. Intelligent batch-type energy saving system

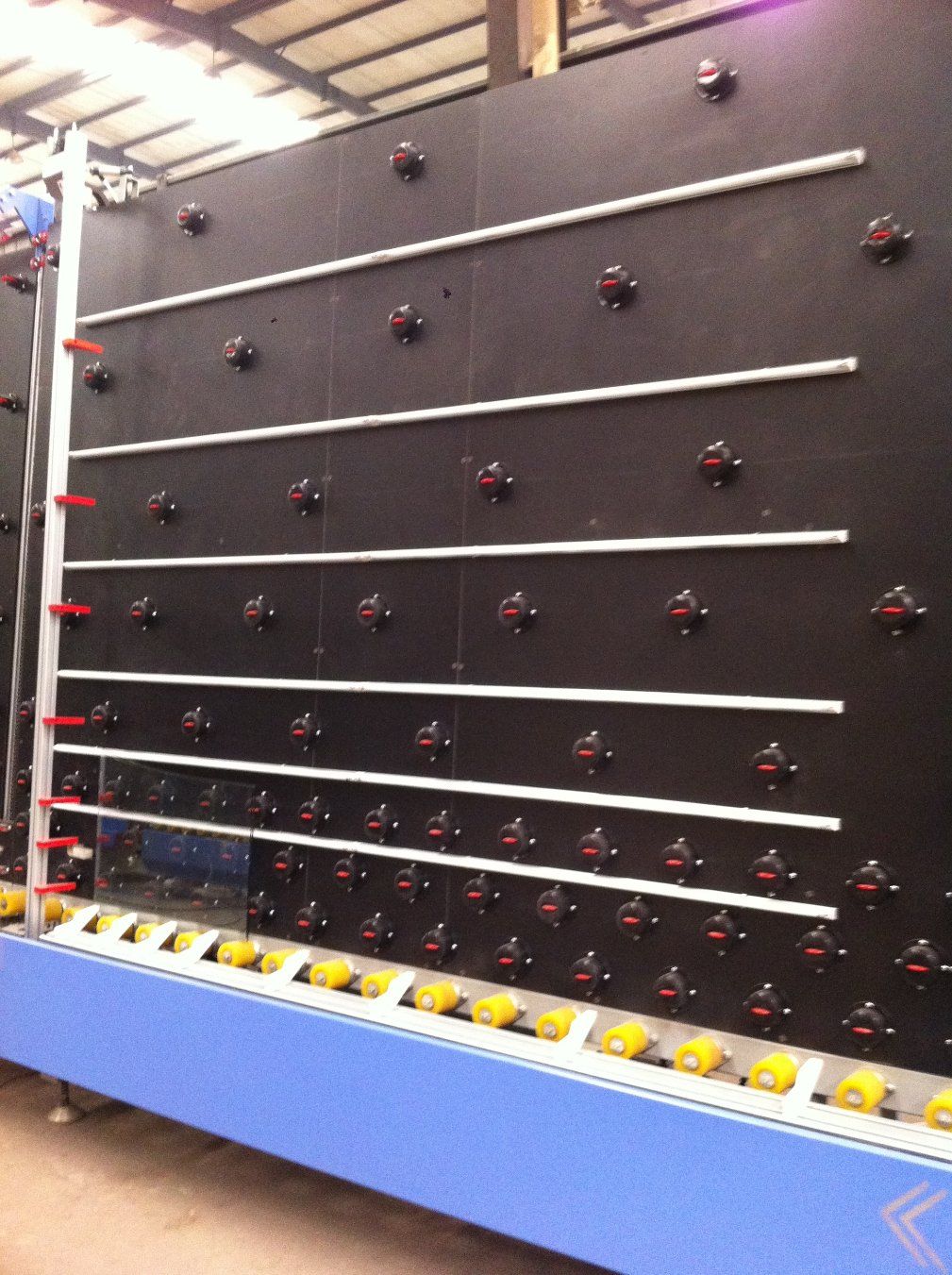

7. Triple IG, shaped IG automatic assembly and positioning system

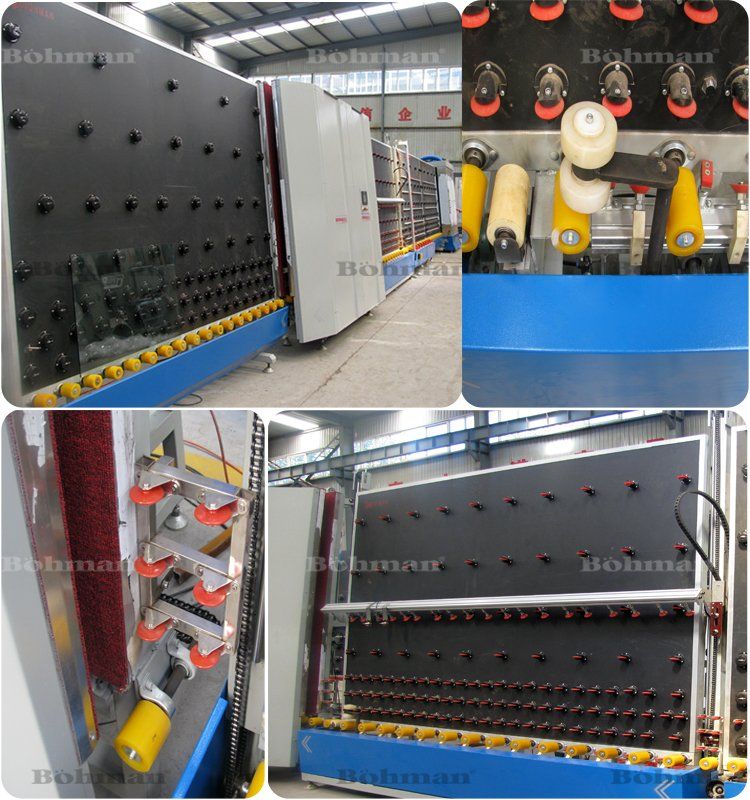

Washing and Drying
1. It canwashing& drying Float glass and low-E glass.
2.. The washing& drying machine is made of stainless steel by welding and bending.
3. The washing& dying machine adopts discontinuous work energy saving system. It can wash coated glass and low-e glass and when doing this work, the brushes will separate automatically and it has automatic alarm and can stop the transmission function when there is a mistake.
4. The washing& drying machine adopts non-oil and waterproof lubricating bearings to avoid the secondary pollution to the water and to eliminate the possibility that the oil molecules float when glass go though the strong wind pressure drying area(It will produce bright spot phenomenon when the glass surface adhere to oil molecules).
5. The angle of the unique design of the sprinkle system can be adjusted randomly and make the cleaning and maintaining easily. The water heating system of the washing& drying machine is recommended when the temperature is less than or equal to 7 degree.
6. The fan adopts inner loop to ensure the air is clean. The unique design make the fan have low power and high air pressure, which will make sure the glass is completely clean and dry.
7. The drying area adopts bottom roller wheel drive mode, the surface of coated glass or low-E glass don't have scratches and it can prevent mold release phenomenon effectively.
Certifications
Trade Shows
our machine model
Model |
LBP2500 |
LBP2200 |
LBP2000 |
LBP1800 |
LBP1600 |
power supply |
380V 50HZ |
380V 50HZ |
380V 50HZ |
380V 50HZ |
380V 50HZ |
Input power |
28Kw |
28 kw |
18Kw |
13.5Kw |
|
working speed |
12-48m/min |
12-48m/min |
10-45m/min |
5-45m/min |
4-35m/min |
Glass thickness |
3-18mm |
3-12mm |
3-12 mm |
3-10mm |
3-8mm |
Max.glass size |
2500*3200mm |
2200*3000mm |
2000*3000mm |
1600*2200mm |
|
Brushes |
3 Pair |
3 Pair |
3 Pair |
3 Pair |
3 Pair |
Outside dimension |
26000*2680*3520mm |
18500*2580*3120mm |
18500*2580*3120mm |
16800*2350*2800mm |
13500*2250*2600mm |
Weight |
8500Kg |
7000Kg |
7000Kg |
5500Kg |
4000Kg |
Basic service
1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement.
Answer & Question
1.This is the first time I use this kind of machine, is it easy to operate?
A.English guide video and instruction book are sent to you free together with the cnc router.
B.Free training course in our factory . Engineers are available to serve overseas but all the expense needs being paid by your side.
C.24 hours technical support by calling, video and email.
2.If machine has a problem after I ordered it, how could I do?
This is related to our after-sale service.
A.Within 7 days since your local customs clearance: if the cnc machine's any part has any problem,
we will change it free.
B.Exceed 7 days since your local customs clearance but within warranty period: if the cnc machine
parts have any problem, we can change the old machine parts to new ones free.
C.Exceed warranty period: if the cnc machine parts have any problems, we can offer new machine parts
with cost price and you also should pay all the shipping cost.
D.If buyers need to install by our technicians,the installation clause as follows:
Buyer supply hotel,food,ticket.
Our technical worker need about 3-10 days for installation till all machines is good.
When our worker finished all installation,buyer have to pay for installation charger to our worker according to
$50 per day.Then our worker will teach your worker how to operate all machines correctly.
