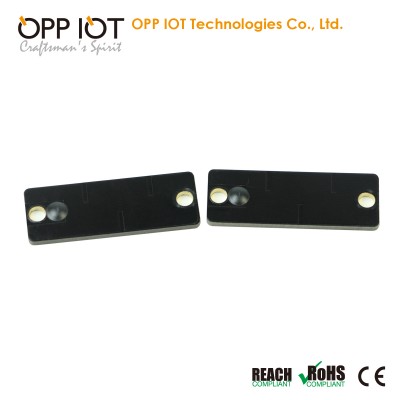

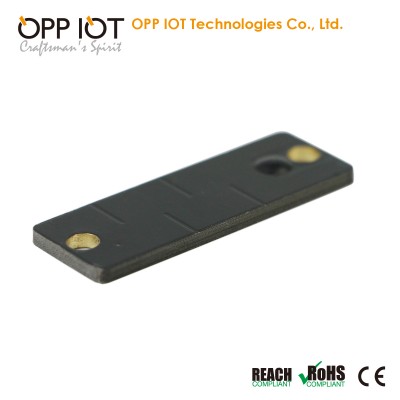

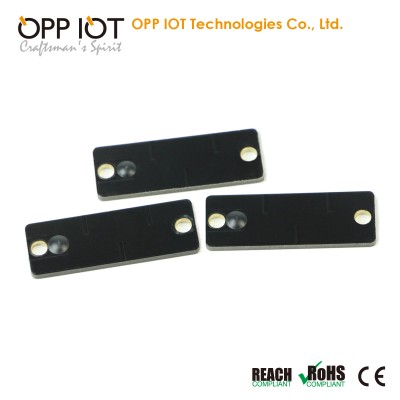

UHF Metal Tag, UHF High Temperature Tag (for tool inventory tracking)
$0.70 /piece
Product Details
Transaction Comments
| Functional Specifications: |
|
| RFID Protocol: | EPC Class1 Gen2, ISO18000-6C |
| Frequency: | (US) 902-928MHz, (EU) 865-868MHz |
| IC type: | Alien Higgs-4 |
| Memory | EPC 128bits, USER 128bits, TID64bits |
| Write Cycles: | 100,000times |
| Functionality: | Read/write |
| Data Retantion: | Up to 50 Years |
| Applicable Surface: | metal Surfaces |
|
Read Range : (Fix Reader:ThingMagic FU-M6-E) |
680cm - (US) 902-928MHz, on metal 700cm - (EU) 865-868MHz, on metal |
|
Read Range : (Handheld Reader: OP9908, R2000) |
530cm - (US) 902-928MHz, on metal 550cm - (EU) 865-868MHz, on metal |
| Warranty: | 1 Year |
|
|
|
| Physical Specification: |
|
| Size: | 42*15mm,(Hole:D4mmx2) |
| Thickness: | 2.1mm without IC bump,2.8mm with IC bump |
| Material: | PTFE |
| Colour: | Black |
| Mounting Methods | Adhesive,Screw |
| Weight: | 2.2g |
|
|
|
| Environmenal Specification: |
|
| IP Rating: | IP68 |
| Storage Temperature: | -55°С to +200°С(280°С for 50minites,250°С for 150minutes) |
| Operation Temperature: | -40°С to +150°С (working 10 hours in 180°С) |
| Cerifications: | Reach Approved, RoHS Approved, CE Approved |
