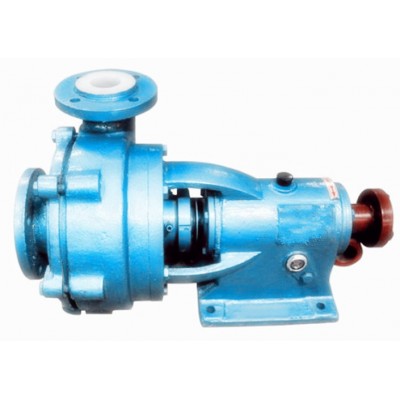

UHB-ZK series anticorrosive and wear-resisting pump belongs to single-stage single-suction cantilever type centrifugal pump. The flow parts are made of steel lined with Ultra-high molecular weight polyethylene (UHMWPE) .

UHMWPE material is a new corrosion resistant and wear-resistant engineering plastics in the world. Its most outstanding advantage is that it has excellent abrasion resistance and impact resistance (especially low temperature impact resistance) among all plastics. No deformation ,no cracking and excellent corrosion resistance.

The remarkable feature of the pump is multi-function. The pump can be used in a variety of different conditions, such as the delivery of acid, alkaline liquid or slurry; All kinds of corrosive pulp in smelting industry; Various dilute acids in sulfuric acid industry; Environmental protection industry all kinds of sewage. The pump is corrosion resistant and wear resistant with the use of a very wide range.

Performance range:

Pump inlet/outlet:32 to 350mm

Flow rate:5 to 2600m3/h

Head:5 to 80m

Working temperature:-20 to 105 degree Celsius
