Trapezoid Roof Tile Roll Forming Machine
$7350.00 /set
Product Details
Transaction Comments
Basic Info
- Model NO.: 840-1050
- Certification: SGS, CE, ISO
- Customized: Customized
- Transmission Method: Chain Drive
- Raw Materials Thickness: 0.3-0.8mm
- Raw Materials: PPGI PPGL Gi Gl Aluminium Coil
- Roller Material: High-Grade 45# Steel
- Shaft Material: 45# Steel Outer Diameter: 70mm
- Warranty: 12 Months
- Transport Package: Standard Export Packing: 1 X 40gp Container
- Origin: Hebei, China
- Tile Type: Colored Steel
- Condition: New
- Usage: Roof, Wall, Floor
- Products Name: Trapezoid Roof Tile Roll Forming Machine
- Raw Materials Width: 914-1250mm
- Control System: Siemens PLC
- Cutting Blade Material: Cr 12 High Grade Steel
- Machine Color: blue or According to Customer′s Need
- Trademark: HX
- Specification: 6500*14500*1400mm
- HS Code: 84552210
Product Description
Company Profile Details
Tianjin Haixing Imp&Exp company are specializing in the production of all kinds of roof roll forming machine ,different sizes roofing sheet,PPGI/GI ,Alu-Zinc steel coils ,Galvanized steel coils ,Galvanized steel sheet ,Galvalume steel coils/sheet ,cold/hot rolled sheet/cols , professional service and favorable price , satisfied with the quality ,welcome to every customers come to visit and buy ! ! ! We will 24 hourse services for you ,please don't hesitate to contact us when you need .
Trapezoid roof tile roll forming machine main parameters details
Trapezoid roof tile roll forming machine photos showing
1.Roof forming machine profile drawing
2.The roof forming machine pictures
The application of metal roof sheets for house and villas :
It can produce various of steel roof and wall panel, it is a new building materials ,the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period , beauty, light weight but high strength.
The advantages of trapezoid roof roll forming machine:
The advantages of the roof forming machine
1.Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate.
2.Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,maintenance-free.
3.We can make and design will kinds of roll forming machine according to customer's request.
Sales Service:
1.we provide the technical support for whole life of our machines.
2.If buyers need the technician to go abroad , we will arrange the technician,but the buyers should take all the cost ,inculding visa, roundtrip ticket etc.
Trapezoid roof roll forming machine package and shipment details :
Standard export packing: 1 x 40GP container,main machine naked and fastened with iron wire in the container, rollers were painted with oil and packed with plastic film, electrics devices be packed with wooden box.
Contact details
If you have any need and questions ,please don't hesitate to contact us .Sunny at here 24 hours waiting for you .Looking forward to you join us !
Tianjin Haixing Imp&Exp company are specializing in the production of all kinds of roof roll forming machine ,different sizes roofing sheet,PPGI/GI ,Alu-Zinc steel coils ,Galvanized steel coils ,Galvanized steel sheet ,Galvalume steel coils/sheet ,cold/hot rolled sheet/cols , professional service and favorable price , satisfied with the quality ,welcome to every customers come to visit and buy ! ! ! We will 24 hourse services for you ,please don't hesitate to contact us when you need .
Trapezoid roof tile roll forming machine main parameters details
| Technical parameters: | |||||||
| 2 | Main motor power | 4kw, 3 phase or as your request | |||||
| 3 | Hydraulic motor power | 3kw | |||||
| 4 | Hydraulic Pressure | 10-12MPa | |||||
| 5 | Voltage | 380V /3phase/ 50 HZ (or as your requirement) | |||||
| 6 | Control System | PLC Delta Inverter | |||||
| 7 | Main Frame | 300mm/350mm H-Beam or 350mm | |||||
| 8 | Backboard Thickness | 16mm | |||||
| 9 | Chain Size | 1 Inch | |||||
| 10 | Feeding Material | color steel coils | |||||
| 11 | Feeding Thickness | 0.3-0.8mm | |||||
| 12 | Feeding Width | 100-1200mm | |||||
| 13 | Effective width | 840-1050mm | |||||
| 14 | Productivity | 0-15/min | |||||
| 15 | Roll Station | 13 roll steps(according to different design) | |||||
| 16 | Roller Diameter | 70mm(depend on different design) | |||||
| 17 | Roller material | 45# steel | |||||
| 18 | Cutter material | Cr12 | |||||
| 19 | Cr-Plating Size | 0.05mm | |||||
| 20 | Overall Size | 6800*1400*1150mm | |||||
| 21 | Total Weight | 5.8T | |||||
| 22 | Components | Manual Uncoiler-------------------1 set | |||||
| Guiding Platform------------------1 set | |||||||
| Coil Strip Leveler------------------1 set | |||||||
| Main Machine of Roll Forming------1 set | |||||||
| Electric-Motor---------------------1 set | |||||||
| Cutting Device--------------------1 set | |||||||
| Hydraulic Station------------------1 set | |||||||
| PLC Control-----------------------1 set | |||||||
| Supporter Table-------------------1 set | |||||||
| 24 | Package | Standard seaworthy packing | |||||
| All technical parameters can be changed, according to customer's need. | |||||||
Trapezoid roof tile roll forming machine photos showing
1.Roof forming machine profile drawing

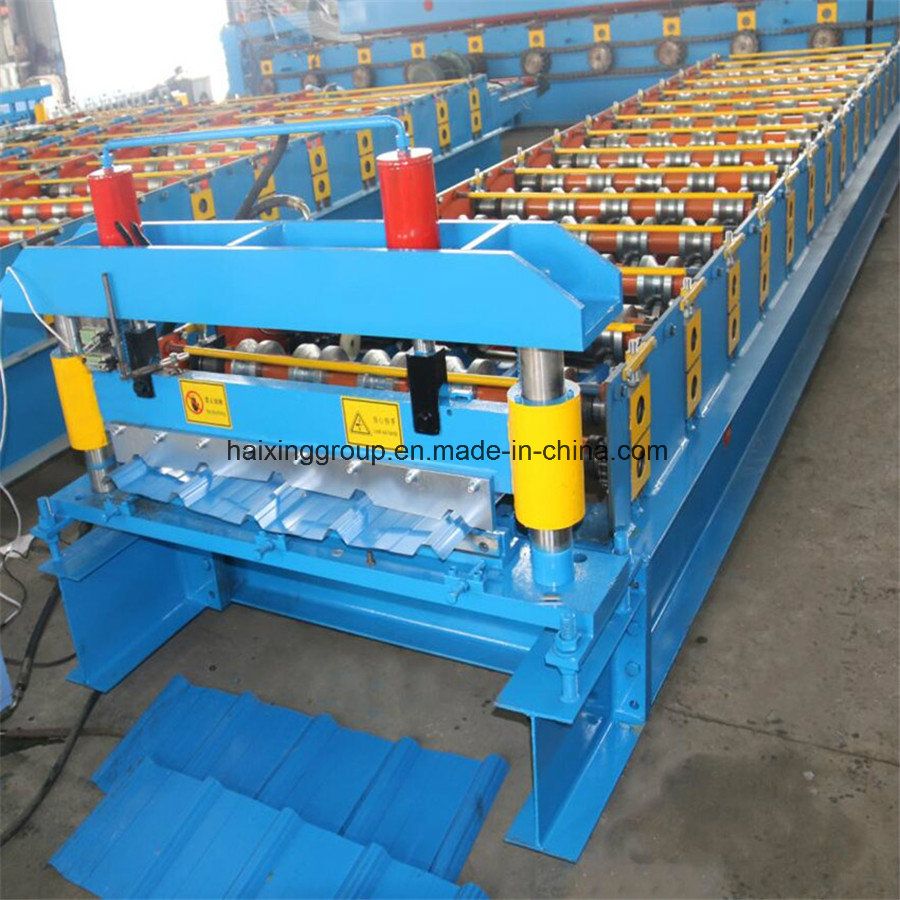

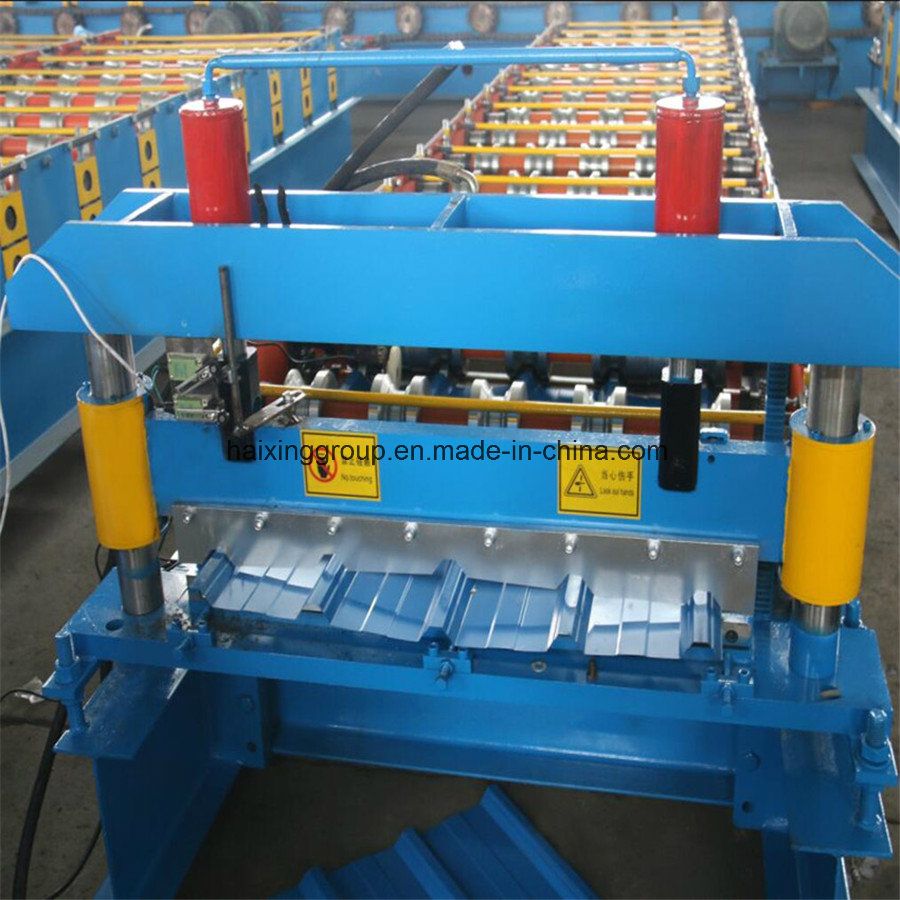

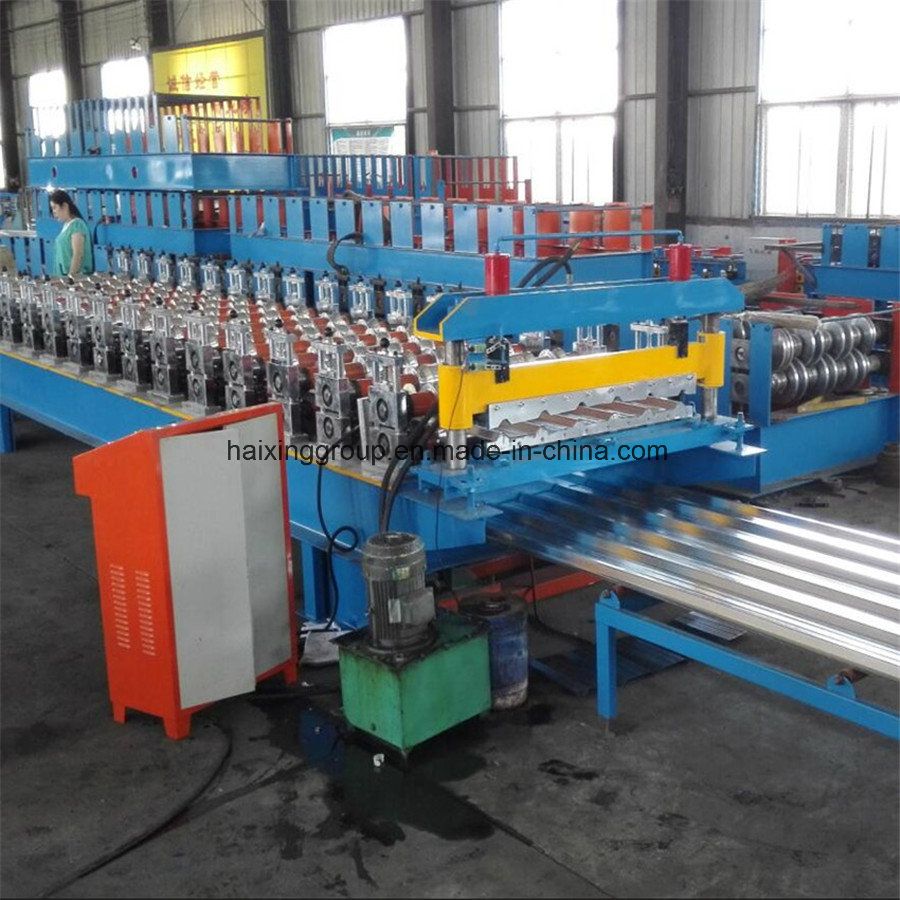

2.The roof forming machine pictures
The application of metal roof sheets for house and villas :
It can produce various of steel roof and wall panel, it is a new building materials ,the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period , beauty, light weight but high strength.
The advantages of trapezoid roof roll forming machine:
The advantages of the roof forming machine
1.Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate.
2.Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,maintenance-free.
3.We can make and design will kinds of roll forming machine according to customer's request.
Sales Service:
1.we provide the technical support for whole life of our machines.
2.If buyers need the technician to go abroad , we will arrange the technician,but the buyers should take all the cost ,inculding visa, roundtrip ticket etc.
Trapezoid roof roll forming machine package and shipment details :
Standard export packing: 1 x 40GP container,main machine naked and fastened with iron wire in the container, rollers were painted with oil and packed with plastic film, electrics devices be packed with wooden box.
Contact details
If you have any need and questions ,please don't hesitate to contact us .Sunny at here 24 hours waiting for you .Looking forward to you join us !
