Star Product Raw Material Concrete Sand Cement Flyash Slag Wall Panel Machine Jj
$9999.00 /set
Product Details
Transaction Comments
Basic Info
- Model NO.: JQT
- Customized: Customized
- Type: Extrusion and Vibration
- Width(mm): 500-1200
- Factory Visit: Welcome
- Features: Easy Operation
- Color: Red, Yellow, Green
- Weight: 1200kg
- Transport Package: 2360*1130*720mm
- Origin: China
- Certification: SGS, ISO
- Automatic Grade: Semiautomatic
- Speed(M/Min): 1.2-1.7
- Thickness(mm): 80-180
- Application: Building Materials Machinery
- Voltage: 380V/220V/415V
- Business Type: Manufacturer Direct Supplying
- Trademark: VICTORY
- Specification: 2360*1130*720mm
Product Description
if you have a skype, pls contact me through my skype
JJ LIU
from zhengzhou, China
to get more information and get best price and service.

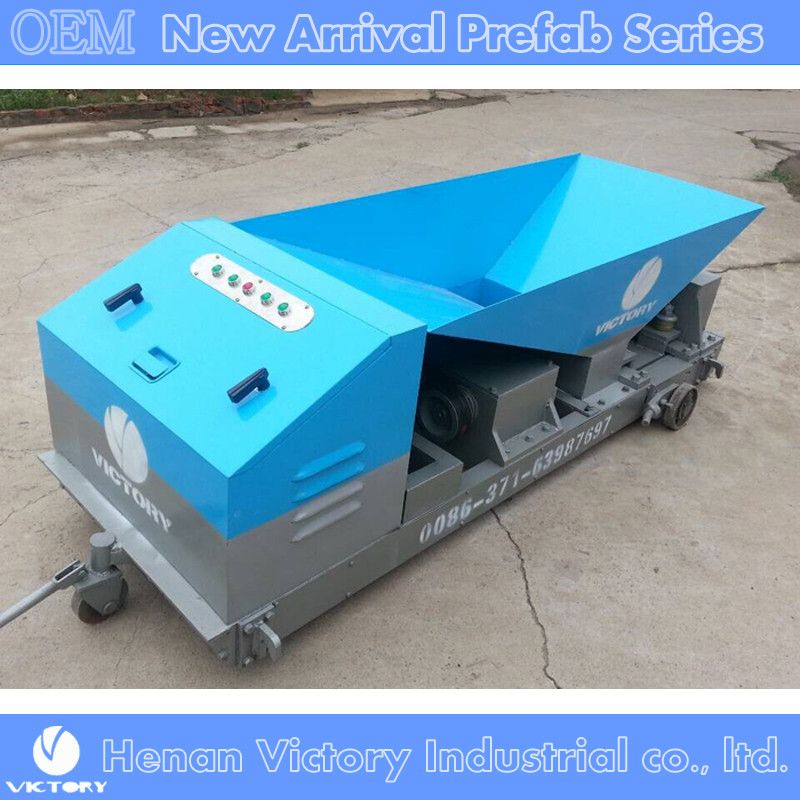

Light weight concrete hollow core wall panel machine
JJ LIU
from zhengzhou, China
to get more information and get best price and service.
Light weight concrete hollow core wall panel machine
Product Description
Main Specification
- Extrusion technology
- For producing light weight wall panels for interior partition walls or exterior walls
- Production speed is 1.3-1.7 m per minute depending on the differences of raw materials
- Lightweight cocnrete aggregates ,cement+lightweight aggregate
- Allow 1.8-6mm steel wires as reinforcement materials
- Full Wear-resistant alloy spare parts including feeding auger,vibration plate
- Service life for feeding auger more than 150000KM
Main Specification
| Model | JQT9x60 | JQT10x60 | JQT12x60 | JQT18x60 |
| Width(mm) | 595±2 | 595±2 | 595±2 | 595±2 |
| Thickness(mm) | 90±1 | 100±1 | 120±1 | 180±1 |
| No. of holes and hole diameter(mm) | 7*58 | 6*58 | 5*85 | 3*132 |
| Panel making speed(m/min) | 1.1-1.7 | 1.1-1.7 | 1.1-1.7 | 1.1-1.7 |
| Main motor (kw) | 4 | 4 | 5 | 7 |
| Vibrator(kw) | 0.8 | 0.8 | 0.8 | 1.1 |
| Overall dimensions (mm) | 2560x950x980 | 2560x950x980 | 2560x950x980 | 2560x950x980 |
| GW(kg) | 1100 | 1200 | 1300 | 1800 |
Inner struture of extruder
Production line and related machines
End products and application
- Super flat and required only Putty/Thin Skim Coat
- Customized up to 6m length to minimize waste, lintel, stiffer, labor & time
- The ONLY REINFORCED with High Tensile Steel Wire for Bending Strength and Safety in its usage as High Wall.
- Installed for internal, external and parapet wall both laid horizontal and vertical.
