DATA SHEET
| Diameter | 50mm |

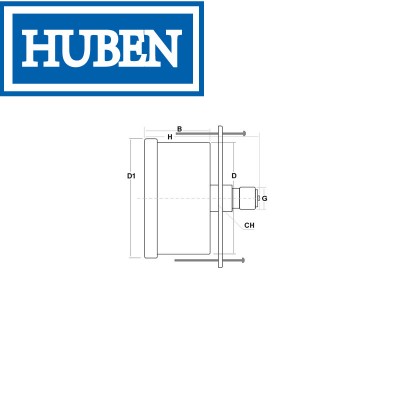

| Connection position | Back + U-clamp |
| Range | 0/10 |
MORE INFO
Full stainless steel pressure gauge diameter 50mm range 0/10 Bar with u-clamp for panel mounting.
Suitable for corrosive process gas or liquid filled. Applications for Chemical/petrol-chemical, power stations, mining, on- and offshore, environmental technology, mechanical engineering and plant construction.
All stainless steel pressure gauge made according UNI EN 837.1 norms - case aisi 304 dial 50mm. - Stainless steel aisi 316 movement and pivot - BACK cilindrical connection 1/4 bspp (ISO 7/1)- Aluminium dial White background Black - BAR scale and Red PSI - Accuracy 2,5% - Aluminium index
Working Temperature: Room-Temp. -30 +65° C (-22 +149° F) - With Glycerine -10 +65° C (+14 +149° F)
Process -40 + 180° C (-40 +356° F) - With Glycerine 0 + 75°C (+32 +167° F)
Working Pressure: Steady 75% - Variable 60%
Overpressure not admitted
