Safety Open Boiling Tin, Tinplate Cap Making Machine
$100000.00 /sets
Product Details
Transaction Comments
Basic Info
- Model NO.: 502
- Product Model: 502
- Product Capacity: 70 Lids/Min
- Outer Size: 5000mmx1150mmx2400mm
- Air Pressure: ≥0.6MPa
- Control System: Servo Motors Driven
- Transport Package: Standard Export Package in Wooden Box
- Origin: Hangzhou, Zhejiang, China
- Product Category: Economical Easy Open Cap Making Machine
- Product Specifications: 603, 502,401 Different Shape Lids
- Power: 35kw(380V 50Hz)
- Total Weight: 3500kg
- Air Flow: ≥0.6m³/Min
- Trademark: EV
- Specification: 5000mmx1150mmx2400mm
- HS Code: 8422303090
Product Description
Foil sealing tin / can / drum easy open cap making machine / maker
Usage and Application:
Easy open caps, also be called safety caps, they are widely used in the food packing area, to solve the problems of can food that can not be opened easily and burrs on the edge after opening.
This kind of caps are processed on the tin/aluminum caps, punching an open hole, curling the hole edges, then sealing the foil/plastic on the holes, and making the easy pulling ring that can be opened easily, and this type of caps is about 50% lighter than normal caps.
When the caps open, it can avoid the dust or metal burrs fall into the food, the curled edge will not hurt hands.
The sealing includes high speed and economical sealing, the sealing quality can endure high pressure, also can be used to make the boiling can food caps.
The application will be:
Used for tinplate, aluminum caps, sealing by aluminum foil/plastic sheet, can be used for boiling products, like sardine cans, fruits cans etc.
Also can be used for powder products like powder, coffee powder, granule products like coffee beans, snacks etc.
Product Process & Options:
Other options:
Function and characteristics:
Typical machines introduction:
1-High-speed Easy Open Cap Making Machine
307 (83mm) Peel-off membrane end
502 (127mm) Peel-off membrane end
2-Economical Easy Open Cap Making Machine
If you have interest in our products please contact:
Phone: +86-13732230319
Usage and Application:
Easy open caps, also be called safety caps, they are widely used in the food packing area, to solve the problems of can food that can not be opened easily and burrs on the edge after opening.
This kind of caps are processed on the tin/aluminum caps, punching an open hole, curling the hole edges, then sealing the foil/plastic on the holes, and making the easy pulling ring that can be opened easily, and this type of caps is about 50% lighter than normal caps.
When the caps open, it can avoid the dust or metal burrs fall into the food, the curled edge will not hurt hands.
The sealing includes high speed and economical sealing, the sealing quality can endure high pressure, also can be used to make the boiling can food caps.
The application will be:
Used for tinplate, aluminum caps, sealing by aluminum foil/plastic sheet, can be used for boiling products, like sardine cans, fruits cans etc.
Also can be used for powder products like powder, coffee powder, granule products like coffee beans, snacks etc.
Product Process & Options:
| Process No. | Process name | Remark |
| 1st | Automatic raw caps feeding | Suitable for round, oval or rectangle shape caps |
| 2nd | Open hole punching | Punch the open hole, hole shape can be customized as round oval or rectangle. |
| 3rd | Hole edge drawing | Preparing for curling |
| 4th | Hole edge curling | Curling the round edge of the punched hole, to avoid hurt people in opening |
| 5th | Pre-heating | Preparing for foil sealing |
| 6th | Foil cutting, sealing cooling | Making a pulling ring on the foil, Cutting the foil as the punch hole sizes. The sealing foil can be 60-90microns foils, also can plastic sheets |
| 7th | Cobwebbing press | Pressing the cobwebby on the foil |
| 8th | Dedusting , counting and outputting |
- Can use tab or ring pulling to hold and open the caps.
-
Can use 60-90 microns foil or plastic sheet to seal the caps.
Can use smooth or textured foil/plastic. - Can with or without de-gassing dimples.
Function and characteristics:
- The machine is adopted servo motors driven, cooperating with pneumatic system. Used PLC to control the temperature, sensors, can complete the raw caps given, hole punching, edge drawing, edge curling, pre-heating, foil cutting and sealing, foil folding and cooling, cobwebbing press, riveting, de-dusting and outputting automatically.
- The operation system is adopted touch screen, can adjust the parameters and set information on line.
- The transmission is adopted advanced synchronous belt, servo motor one shaft positioning driven. To make the sealing pressure equal, ensure the stability of the whole system.
- The sealing foil cutting is adopted individual feeding system, will not move with the caps, to save the sealing materials.
- The heat sealing is adopted high frequency electrical heating, the sealing temperature is controlled by individual temperature moulds , can be set and adjusted separately.
| High-speed Easy Open Cap Making Machine | Economical Easy Open Cap Making Machine | |
| Product Specifications | 603, 502,401,307,300,209 different shape lids |
603, 502,401,307,300,209 different shape lids |
| Product Capacity | Tin 240-300psc/min; Aluminum 200 -240psc/min |
70 lids/min |
| Power | 50KW(380V 50HZ) | 35KW(380V 50HZ) |
| Outer Size | 5000mmx1150mmx2400mm | 5000mmx1150mmx2400mm |
| Total Weight | 5000kg | 3500kg |
| Air Pressure | ≥0.6Mpa | ≥0.6Mpa |
| Air Flow | ≥0.6m³/Min | ≥0.6m³/Min |
Typical machines introduction:

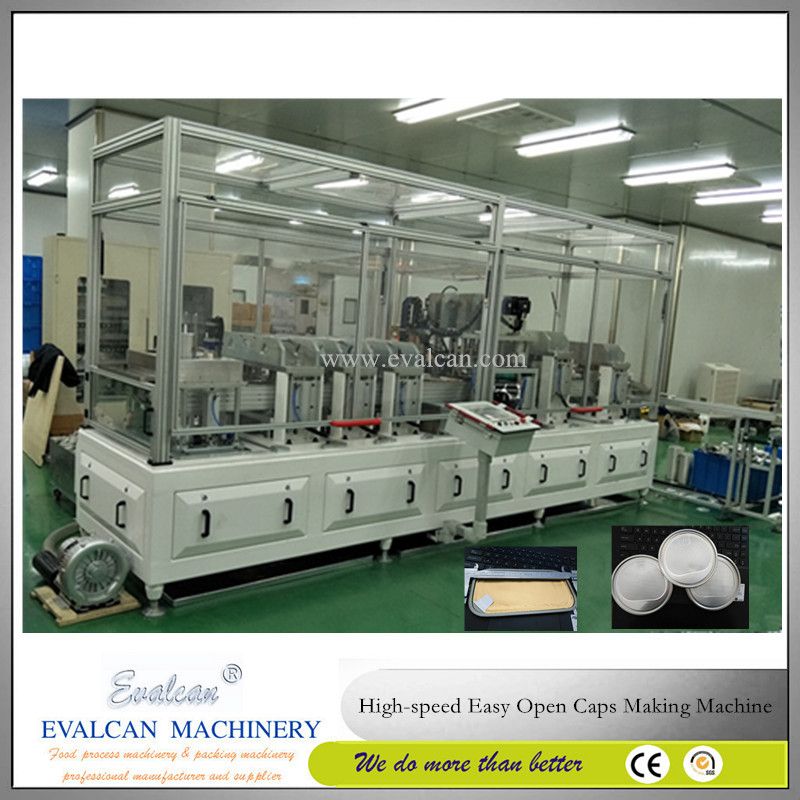

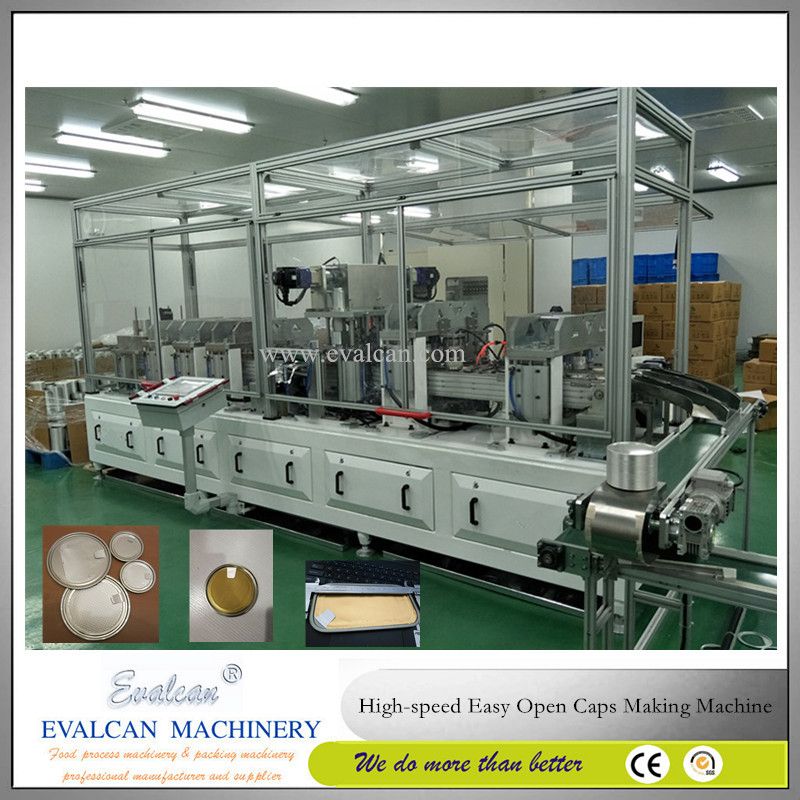

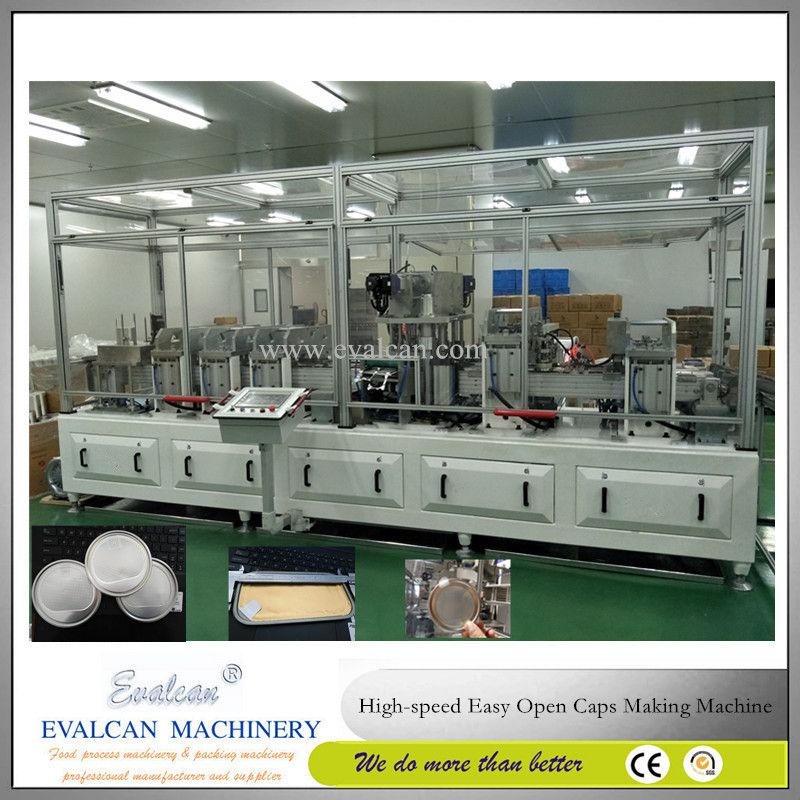

1-High-speed Easy Open Cap Making Machine
307 (83mm) Peel-off membrane end
502 (127mm) Peel-off membrane end
2-Economical Easy Open Cap Making Machine
If you have interest in our products please contact:
Phone: +86-13732230319
