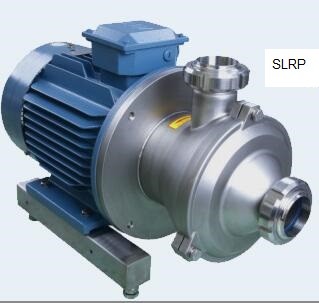

SLRP Self priming centrifugal pump is used to transfer the fluids with gas. It is widely used in the conditions where the liquid level is unstable or even lower than then the pump inlet and it is also used as the return trip in the CIP System. The pump is used in food ,chemical ,wine, pharmaceutical etc industry.
Performance flow rate:10m3/h-60m3/h,
Head:15-47m
Motor power:1.5KW-18.5kw
Pump material: SS316L (Pump body, impeller, pump cover and other parts which contact with liquids are made SS316L)
Seal material: EPDM
Standard: DIN,SMS
Open impeller
Shaft seal: Static ring: SS316L lined with graphite, dynamic ring: SiC
Surface treatment: Flow parts: polishing, other parts: Matte or sandblasting treatment
Max inlet pressure:0.5MPA
Temperature:10 to 140 degree Celsius
Washable mechanical seal
Water pressure: up 0.1MPA
Water volume:0.25-0.5L/Min
Motor: 50HZ or 60HZ
220V-240V Or 380v-420v or 660-690v
Specification sheet:
|
Pump |
Flow |
Head |
Motor power |
Inlet |
outlet |
|
model |
m3/h |
m |
kw |
mm |
mm |
|
SLRP-5-18 |
5 |
18 |
1.5 |
51 |
51 |
|
SLRP-15-30 |
15 |
30 |
3 |
63 |
51 |
|
SLRP-20-30 |
20 |
30 |
4 |
63 |
51 |
|
SLRP-25-30 |
25 |
30 |
5.5 |
63 |
63 |
|
SLRP30-30 |
30 |
30 |
7.5 |
76 |
63 |
