- Model NO.: Rainbow Jet Pro
- Structure: Single-revolution Printing Press
- Automatic Grade: Automatic
- System supported: Windows XP/2000/07/08/10
- Model: Rainbow Jet Focus T-Shirt Printer
- Ink Type: Pigment Ink/ Eco Solvent Ink /Edible Ink Printer
- Rip Software: Focus Rip 8.2.6
- Control Method: PLC Controller DTG Printer
- Max. Printing Height: 12cm
- Transport Package: Wooden Package
- Origin: Shanghai, China
- Style: Digital Printing
- Usage: Cloths Printer, Paper Printer, Label Printer, Card Printer, Bill Printer, Tube Printer, Fabric Printing
- Print Interface: USB2.0

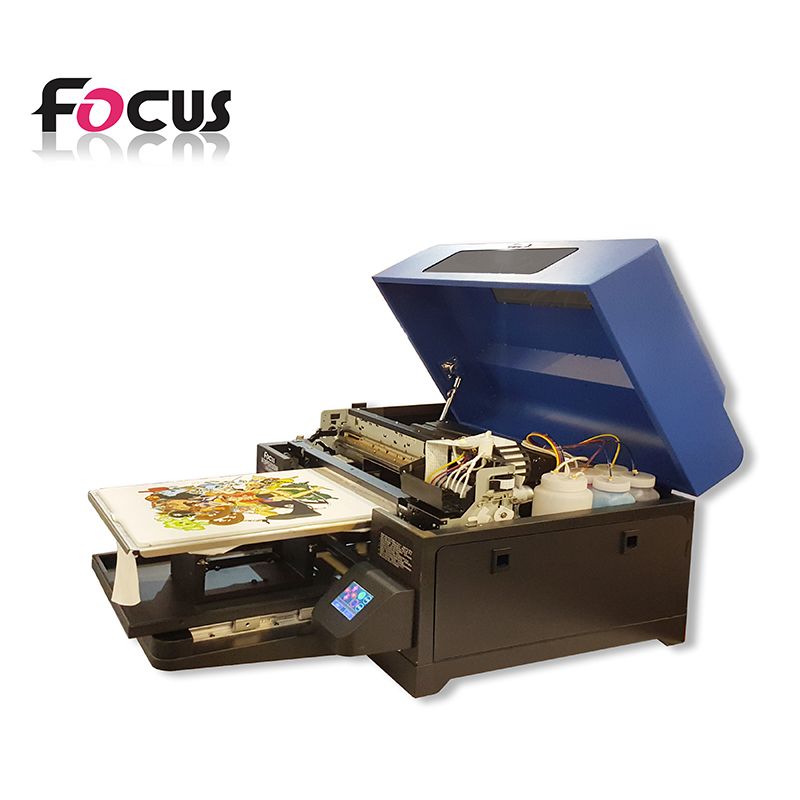

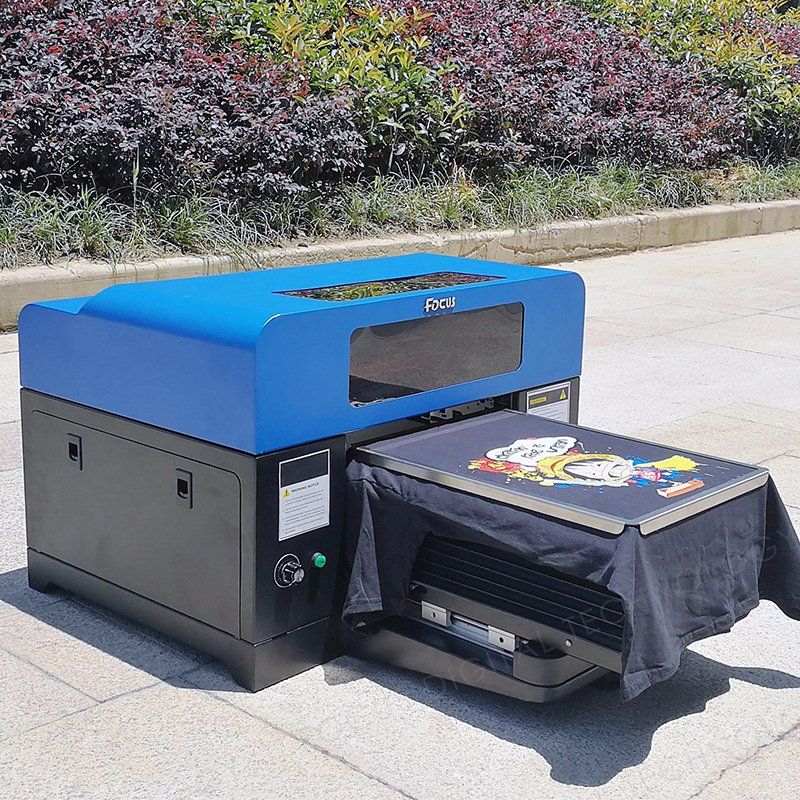

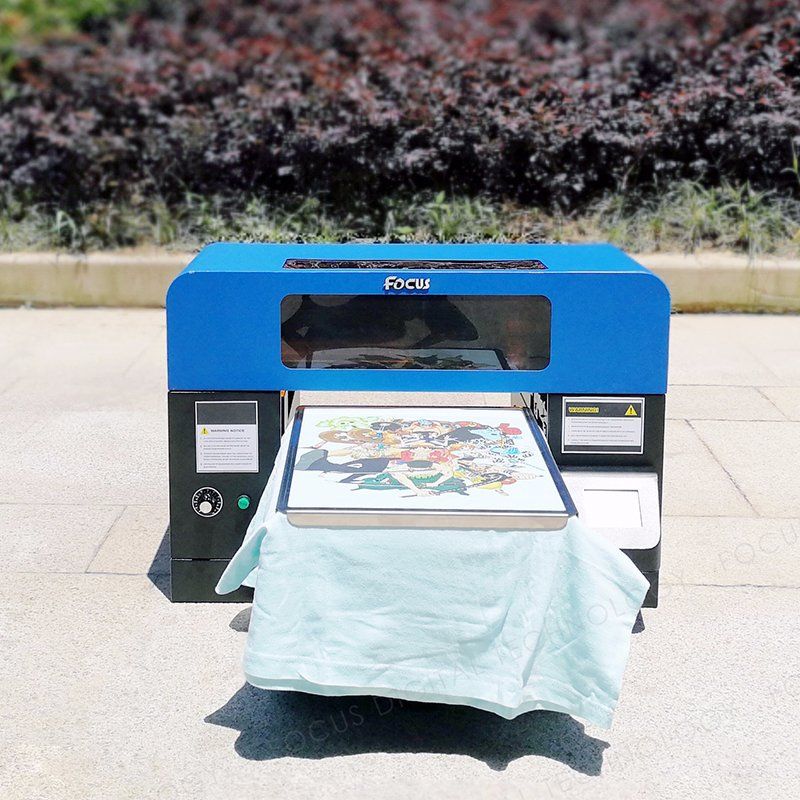

- Product Name: Rainbow-Jet Digital A3 Textile Printing Machine
- Print Head: Epson L1390/1440 Industrial Print Head
- Color Model: Cmyk+LC+Lm/Cmyk Orange Red Glo/Cmyk+Ww
- Printing Platform: 33*50cm
- Max. Printing Resolution: 3600dpi Industrial Printer
- Trademark: Focus
- Specification: 90*75*63
- HS Code: 8443322100
Specification
| Hot sale high quality a3 digital direct to garment printer | |
| Printing size | 330mm*500mm |
| Printhead | Piezo Inkjet 1440 Nozzles technology |
| Print Color | 6 Color: C,M,Y.K.Orange.Red.Gloss.Matte Black. |
| /White ink model: C,M,Y,K+W,W | |
| Printing Direction | Bi-Direction / Unidirection |
| Printing Speed | 1440DPI model: A4 size/64s |
| Control pannel | Touch pannel / LCD |
| Max. height of object | 12CM |
| Max. Printing resolution | 2880DPI*1440DPI |
| Ink Tank Volume | 150ML |
| Ink | Eco solvent ink / Textile ink / CTS ink / Edible ink / Discharge ink |
| Height Adjust | Automatic/Manual Adjust |
| Printing Object Height Examine | Automatic Detecting |
| Printhead Protection | Intelligent Self Protect System |
| Power | 110-220V 50-60HZ 75W |
| Printing Interface | USB2.0/LTP |
| Operation System | Windows95,98,NT,2000,XP,MAC |
| Working Environment | 10-35 C,20-80 RH |
| Max.printing weight | 50KG |
| Printer Size | 75*60*50cm |
| Shipping Size | 90*75*63cm |
| Printer N.Weight/G.Weight | 98KG/110KG |
Technical Feathers
1. Newest fantastic ergonomic design with streamlining style.
2. Unique Clamshell design for the top cover to make the printing and maintain job more convinence and effective.
3. High density touch screen pannel can control the flatbed X, Y ,Z axis motion, online/offline easier.
4.Dual ball rail drive the flatbed motion with high precision of Rainbow-Jet Digital A3 textile printing t shirt machine multi function printer.
5. Added white ink circulation system to avoid white ink settling by the high quality Peristaltic pump design.
6. The high quality degassing valve added ahead the ink damper can remove the air bubbles from the ink to avoid printing lack of ink and pass line, White ink circulation directly outlet to the sub ink tank and ink damper can reduce white ink settling during ink damper and ink tube also, it can prevent printing ink clog and lack ink printing to improve the printing quality and save lots of ink for head cleaning.
7. Support lots kind of printing method as one pass printing, halftone printing, white ink printing first...
8.Powerful FocusRIP 8.7.0 is the artist for raster process the image before printing, it can support variable data printing, high quality victor processing, custom setting ink channel, 1bit/2bit/3bit/ 1.5-15PL ink dot control printing to get a good white ink density and vivid color result.
Application field:
<1>. Sign making shop
<2>. Photo studio or film development shop
<3>. Screen printing.
<4>. Garment, Textile and fabric, such as the T-shirt, flag, handkerchief, neckerchief...
<5>. Leather, shoes, clothes, crystal and other crafts & gifts industries
<6>. All kind of factories of art items with image.
Focus Rainbow-Jet Digital A3 textile printing t shirt machine multi function printer is compliment to screen printing production and heat-transfer industries as it can do some jobs which are very expensive or not possible with the traditional printing.
Warranty
1. We provide 13month guarantee since the shipping date.
2. We provide professional user manual, installation video to guide you the installation and daily maintenance.
3. We provide 2 days free online training.
4. Engineer fly to your site for final repair if needed.
