Self priming chemical centrifugal transfer pump has the suction height of 4meters

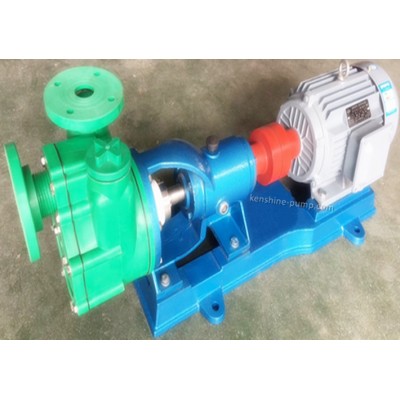

The pump can be made of FRPP (polypropylene),fluorine plastic (PVDF2/FEP), fiberglass reinforced plastic etc material. The plastic has the good corrosion resistant for the acid,alkali and chemical solvent etc.

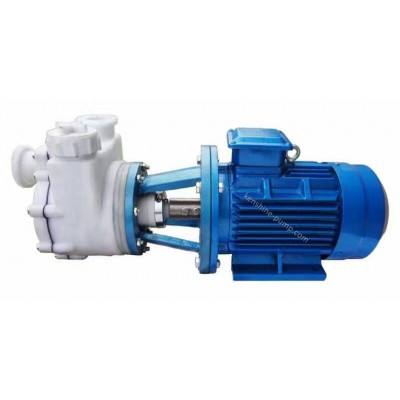

The pump has two connection ways. One is with shaft coupling and the other is with closed coupling (direct connection)
WB2 Mechanical seal has the good corrosion resistant.

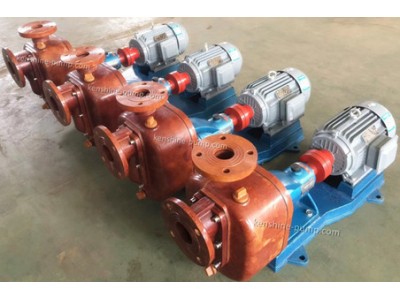

SZ type fiberglass self priming pump is widely used to transfer various non-oxidizing acids(Hydrochloric acid, dilute sulfuric acid, formic acid, acetic acid, butyric acid, phosphoric acid)etc corrosive liquids which is not easy to crystallize and temperature is no higher than 100 degree Celsius)in petrochemical, smelting, dyes, printing and dyeing, pesticides, rare earth, fertilizer and other industries.
|
Model |
Caliber(mm) |
Capacity |
Head |
Motor power |
Speed |
Suction height |
Suction time |
|
|
Inlet |
Outlet |
m3/h |
m |
KW |
RPM |
m |
s/m |
|
|
SZ40-32-20 |
40 |
32 |
6.3 |
20 |
1.5 |
2900 |
4 |
65 |
|
SZ50-40-20 |
50 |
40 |
12.5 |
20 |
2.2 |
2900 |
4 |
65 |
|
SZ65-50-20 |
65 |
50 |
25 |
20 |
3/4 |
2900 |
4 |
65 |
|
SZ65-50-32 |
65 |
50 |
25 |
32 |
5.5 |
2900 |
4 |
65 |
|
SZ80-65-32 |
80 |
65 |
50 |
32 |
5.5/7 |
2900 |
4 |
65 |
|
SZ100-80-28 |
100 |
80 |
100 |
28 |
11 |
2900 |
4 |
65 |
|
SZ100-80-32 |
100 |
80 |
100 |
32 |
15 |
2900 |
4 |
65 |
