Plastic Twin Screw PVC Extruder Pipe Production Extrusion Making Machine/UPVC CPVC Water&Drainage&Electric Conduit Tube Manufacturing Extruding Machine
$30000.00 /piece
Product Details
Transaction Comments
Basic Info
- Model NO.: ACE-65/132-80/156-92/188
- Screw No.: Double-screw
- Computerized: Computerized
- Customized: Customized
- Controller: Siemens PLC
- Motor Brand: Siemens,Weg,Sew
- Inverter: ABB/Schneider/Siemens
- Barrel & Screw Material: Bimetallic Barrel & Screw
- Raw Material: UPVC/CPVC/PVC Powder
- Transport Package: Wooden Pallets
- Origin: China
- Product Type: PVC Pipe
- Automation: Automatic
- Certification: CE, SGS, ISO9001:2008, UL
- Condition: New
- Output Pipe Size: 20-630mm
- Gearbox: Vertical Type Sew/ Falk Brand
- Bearing: SKF,NSK
- Output Capacity: 300-700kg/H
- Trademark: ACEEXTECH
- Specification: Plastic PVC pipe making machine
- HS Code: 8477209000
Product Description
Plastic Twin Screw PVC Extruder Pipe Production Extrusion Making Machine/UPVC CPVC Water&Electric Conduit Tube Manufacturing Extruding Machine
Application:
PVC Plastic pipe making machine is mainly used in the production of Agricultural water supply & water discharge system, architectural water supply & discharge system, wire laying system, etc. purposes.
The unit consists of Conical (Parallel) double screw extruder-PVC pipe mold-Vacuum forming tank-Haul-off machine-Cutting machine-Stacker/Belling machine.
Producing pipe diameter range: Φ16mm-Φ630mm.
And the line can be equipped with Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing.
Advantages:
♦ Specified screw design for better material plasticizing &mixing effect, For high filling formula, bimetallic screw and barrel can guarantee perfect solution;
♦ Spider type die head can reduce joint line of the melt material, with reasonable compression ratio design;
♦ Vertical integrated structured gear box with adopts NSK/SKF bearings guarantee stable operation and long uselife;
♦ Vacuum calibration tank adopts high-efficiency two chamber and large length design, providing faster calibration and more
efficient cooling;
♦ Planetary cutter adopts hydraulic feeding of blade which providing perfect chamfering processing and cutting surface;
♦ U type, R type and Air blow type socket can be provided according to applications;
♦ Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently.





Technical Parameter:
Technical Parameter of Main extruder:
Main components:
♦ Motor: Siemens, WEG, SEW
♦ Gear reducer: SEW, FALK
♦ Bearing: SKF, FAG, NSK
♦ Air cylinder: Festo, SMC, AirTac
♦ PLC interface and module: Siemens, Schneider, Beckhoff
♦ Frequency inverter: ABB, Schneider, Siemens
♦ Servo motor: Lenze, Delta
♦ Pressure sensor: Dynisco, Gefran
♦ Low voltage component: Siemens, Schneider, Omron, LS
♦ Temperature controller: Omron, RKC
♦ Solid state relay: Crydom, Celduc

About ACEEXTECH:
ACEEXTECH is a creative company, focusing on R & D of plastic extrusion system, and providing the equipments and solutions for plastic pipe, profile, tile, sheet and board.
ACEEXTECH products fulfill the needs of users in a very direct way due to over 25 years of knowledge and experience in plastic extrusion field, which also helps us to contribute actively to the success of customers by offering sustainable solutions that meet industry needs.
ACEEXTECH offers a complete portfolio of support and consulting services all the time, from project engineering to custom financing solutions, after sales service at its best, ongoing production optimization, training and advisory services, even end product development.
Why ACEEXTECH:
• Specialized R & D team involved in plastic extrusion industries over 25years.
• Ability to provide the customized plastic extrusion solutions.
• Complete sales system covering the pre-sales, sales and after-sales service jobs.
• Professional sales team with local language speaking ability for English, Portuguese, Spanish, Turkish and Russian markets.
ACEEXTECH'S service:
• Pre-sale: we give our client the detailed technician offer, Layout design, Water/electricity/gas arrangement. Product simple marketing analyze, other necessary guidance
• In-sales: we supply the details layout, installation instruction, and technician support for the clients.
• After sales: we arrange engineer to install the machine and train the workers for our client.
• We have 24 hours service line to solve the after sales problem.
• We have free spare parts with the machine.
• We supply long term spare parts for every customer.
• We always update the new technology to every customer.
Inquiry to ACEEXTECH:
In order to match your requirement and provide you a proper quotation, please advise:
• How many layers for pipe and pipe size range;
• Pipe application;
• Extruder machine capacity;
• Pipe max haul off speed;
• Pipe pressure.
Contact to ACEEXTECH:
JIANGSU ACEEXTECH MACHINERY CO., LTD
Tel:+86-512 58620105
Fax:+86
Mobile/hatsApp: +86-
Website:
Add:No.18 Yuefeng Road, Nanfeng Town, Zhangjiagang City Jiangsu, China, 215628
Application:
PVC Plastic pipe making machine is mainly used in the production of Agricultural water supply & water discharge system, architectural water supply & discharge system, wire laying system, etc. purposes.
The unit consists of Conical (Parallel) double screw extruder-PVC pipe mold-Vacuum forming tank-Haul-off machine-Cutting machine-Stacker/Belling machine.
Producing pipe diameter range: Φ16mm-Φ630mm.
And the line can be equipped with Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing.
Advantages:
♦ Specified screw design for better material plasticizing &mixing effect, For high filling formula, bimetallic screw and barrel can guarantee perfect solution;

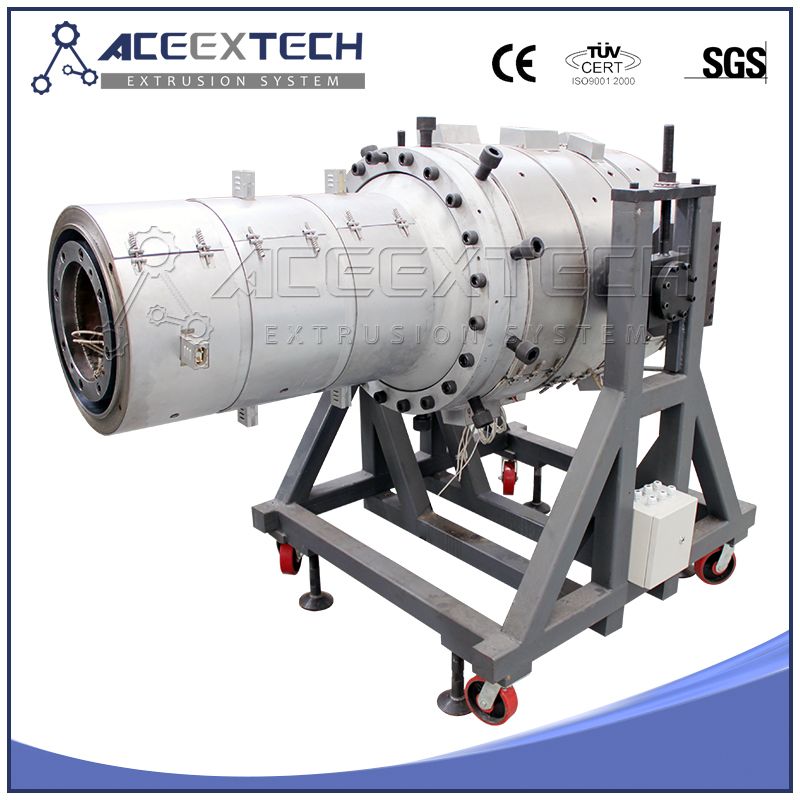

♦ Spider type die head can reduce joint line of the melt material, with reasonable compression ratio design;
♦ Vertical integrated structured gear box with adopts NSK/SKF bearings guarantee stable operation and long uselife;

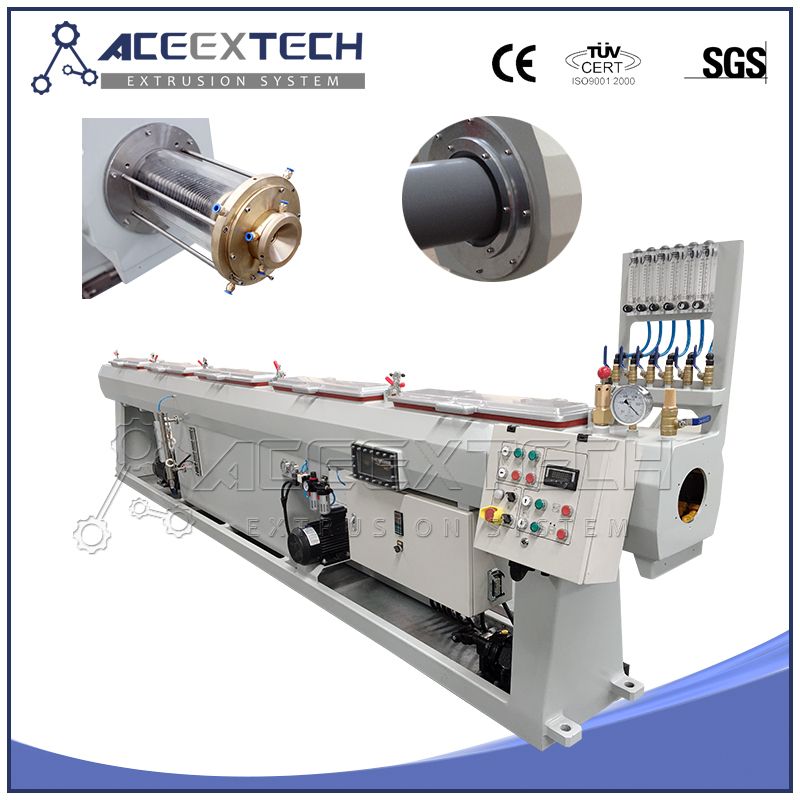

♦ Vacuum calibration tank adopts high-efficiency two chamber and large length design, providing faster calibration and more
efficient cooling;
♦ Planetary cutter adopts hydraulic feeding of blade which providing perfect chamfering processing and cutting surface;
♦ U type, R type and Air blow type socket can be provided according to applications;
♦ Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently.





Technical Parameter:
Diameter ranges(mm) | Extruder model | Max. Capacity(kg/h) | Max. lineal speed(m/min) | Extruder motor power(kw) |
16-32 (4-cavities) | ACE65/132 | 300 | 10*4 | 37 |
20-63 (Dual) | ACE65/132 | 300 | 15*2 | 37 |
50-160 | ACE65/132 | 300 | 8 | 37 |
75-250 | ACE80/156 | 500 | 6 | 55 |
110-315 | ACE80/156 | 500 | 4 | 55 |
75-160 (Dual) | ACE92/188 | 850 | 6 | 110 |
315-630 | ACE92/188 | 850 | 1.2 | 110 |

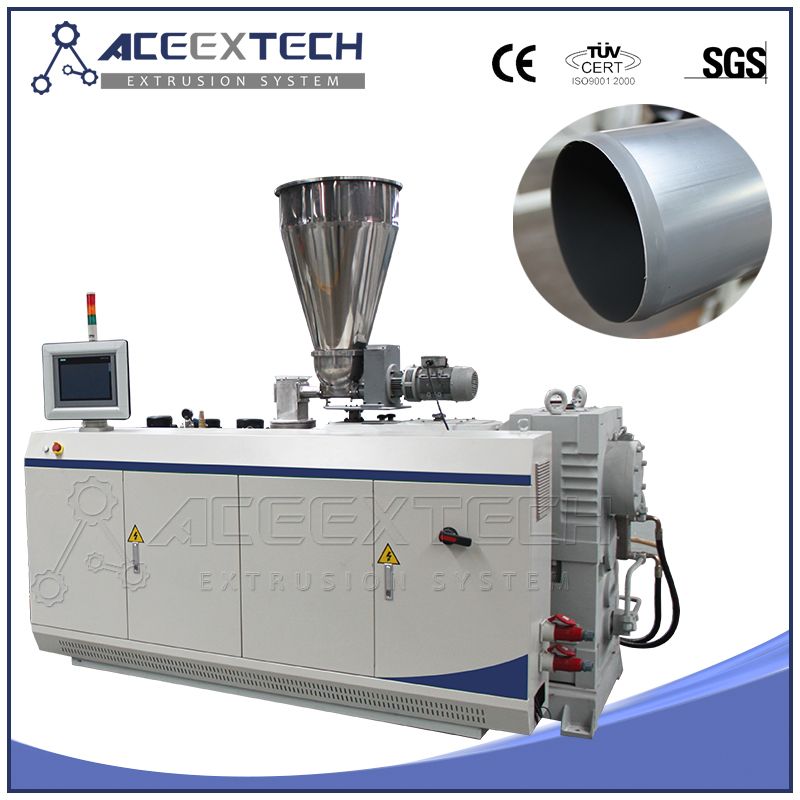

Technical Parameter of Main extruder:
Model |
Power (kw) |
Screw Diameter (mm) | Screw Qty. | Screw rotation speed(rpm) | Designed Output (kg/h) | Center Height (mm) |
Dimension(L*W*H) (mm) |
ACE-45/90 | 15 | Φ45/90 | 2 | 34.7 | 70 | 1050 | 3360x1290x2127 |
ACE-51/105 | 18.5 | Φ51/105 | 2 | 34.7 | 100 | 1050 | 3360x1290x2127 |
ACE-55/110 | 22 | Φ55/110 | 2 | 34.7 | 150 | 1050 | 3620x1050x2157 |
ACE-65/132 | 37 | Φ65/132 | 2 | 34.7 | 300 | 1050 | 3715x1520x2450 |
ACE-80/156 | 55 | Φ80/156 | 2 | 34.7 | 400 | 1050 | 4750x1550x2460 |
ACE-92/188 | 110 | Φ92/188 | 2 | 34.7 | 750 | 1250 | 6725x1550x2814 |
Main components:
♦ Motor: Siemens, WEG, SEW
♦ Gear reducer: SEW, FALK
♦ Bearing: SKF, FAG, NSK
♦ Air cylinder: Festo, SMC, AirTac
♦ PLC interface and module: Siemens, Schneider, Beckhoff
♦ Frequency inverter: ABB, Schneider, Siemens
♦ Servo motor: Lenze, Delta
♦ Pressure sensor: Dynisco, Gefran
♦ Low voltage component: Siemens, Schneider, Omron, LS
♦ Temperature controller: Omron, RKC
♦ Solid state relay: Crydom, Celduc

About ACEEXTECH:
ACEEXTECH is a creative company, focusing on R & D of plastic extrusion system, and providing the equipments and solutions for plastic pipe, profile, tile, sheet and board.
ACEEXTECH products fulfill the needs of users in a very direct way due to over 25 years of knowledge and experience in plastic extrusion field, which also helps us to contribute actively to the success of customers by offering sustainable solutions that meet industry needs.
ACEEXTECH offers a complete portfolio of support and consulting services all the time, from project engineering to custom financing solutions, after sales service at its best, ongoing production optimization, training and advisory services, even end product development.
Why ACEEXTECH:
• Specialized R & D team involved in plastic extrusion industries over 25years.
• Ability to provide the customized plastic extrusion solutions.
• Complete sales system covering the pre-sales, sales and after-sales service jobs.
• Professional sales team with local language speaking ability for English, Portuguese, Spanish, Turkish and Russian markets.
ACEEXTECH'S service:
• Pre-sale: we give our client the detailed technician offer, Layout design, Water/electricity/gas arrangement. Product simple marketing analyze, other necessary guidance
• In-sales: we supply the details layout, installation instruction, and technician support for the clients.
• After sales: we arrange engineer to install the machine and train the workers for our client.
• We have 24 hours service line to solve the after sales problem.
• We have free spare parts with the machine.
• We supply long term spare parts for every customer.
• We always update the new technology to every customer.
Inquiry to ACEEXTECH:
In order to match your requirement and provide you a proper quotation, please advise:
• How many layers for pipe and pipe size range;
• Pipe application;
• Extruder machine capacity;
• Pipe max haul off speed;
• Pipe pressure.
