Plastic Circular Shuttle Loom Weaving Machine for Woven Bag
$3500.00 /set
Product Details
Transaction Comments
Basic Info
- Model NO.: S-YZJ
- Voltage: 380V
- Precision: High Precision
- Warranty: 1 Year
- Condition: New
- Width of The Bag: 300-750mm
- Ratational Speed of Main Body: 140-180r/Min
- Noise: Low (Less Than85)
- Gross Power of Motor: 3.5kw
- Installing Dimension: 8500*2200*2700mm
- Transport Package: as Your Reqeust
- Origin: Wenzhou, Zhejiang
- Type: Shuttle Loom
- Computerized: Computerized
- Certification: ISO9001: 2000
- Customized: Customized
- Number of Shuttle: 4/6 Shuttle
- Max Number of Warp: 768
- Capacity: 65-100m/H
- Main Motor Power: 1.5-2.2kw
- Weight: 1600kgs
- Trademark: Qianfeng
- Specification: SGS
- HS Code: 8447120000
Product Description
Plastic Circular Shuttle Loom Weaving Machine for PP Woven Bag
Circular loom/ Weaving Machine Performance and Characteristics:
1. Plane can and connecting rod rolling wheel transmission, which is the most advanced technology are adopted, making it easy and stable to run.
2. Rolling transimmision is adopted in entire structure instead of slide block and slide rod, which doesn't need lubricant and decreases the wearing part.
3. It is an environmental product whose noise is not more tan 82dB(A)
4. Low strength plastic yarn which is made from 100% regenerated plastic can be adpoted to weave.
5. It is high efficient and energy economical. The highest rotation speed of the main motor can reach 180r/min and the power is 1.5/2.2kw. Which can save 10 thousand degreed of electricity one year
6. As required, equipped with electronic intelligent fabric-lifting unit which is featured with the compensation setting to the warp/weft density casually.
7. It is the latest type circular loom.
Circular lom Main Technical Parameters:
Machine and Patent photos:
Circular loom/ Weaving Machine Performance and Characteristics:
1. Plane can and connecting rod rolling wheel transmission, which is the most advanced technology are adopted, making it easy and stable to run.
2. Rolling transimmision is adopted in entire structure instead of slide block and slide rod, which doesn't need lubricant and decreases the wearing part.
3. It is an environmental product whose noise is not more tan 82dB(A)
4. Low strength plastic yarn which is made from 100% regenerated plastic can be adpoted to weave.
5. It is high efficient and energy economical. The highest rotation speed of the main motor can reach 180r/min and the power is 1.5/2.2kw. Which can save 10 thousand degreed of electricity one year
6. As required, equipped with electronic intelligent fabric-lifting unit which is featured with the compensation setting to the warp/weft density casually.
7. It is the latest type circular loom.
Circular lom Main Technical Parameters:
| Model | S-YZL-4/750 | S-YZL-4/1100 | S-YZL-4/1400 |
| Shuttle number | 4 | 4 | 4 |
| width of the bag | 300-750mm | 550-1100mm | 700-1400mm |
| Max number of warp | 768pcs | 896pcs | 1040pcs |
| Ratational speed of main body | 140-180r/min | 120-160r/mi | 90-125r/min |
| Production Capacity | 65-100m/h | 72-96m/h | 54-75m/h |
| Main motor power | 1.5-2.2kw | 2.2kw | 3-4kw |
| Gross power of motor | 2.5kw | 2.7kw | 3.5kw |
| Weight | 1600kgs | 2000kgs | 2300kgs |
| Installing dimension | 8500*2200*2700mm | 8900*2350*2960mm | 9800*2500*2960mm |

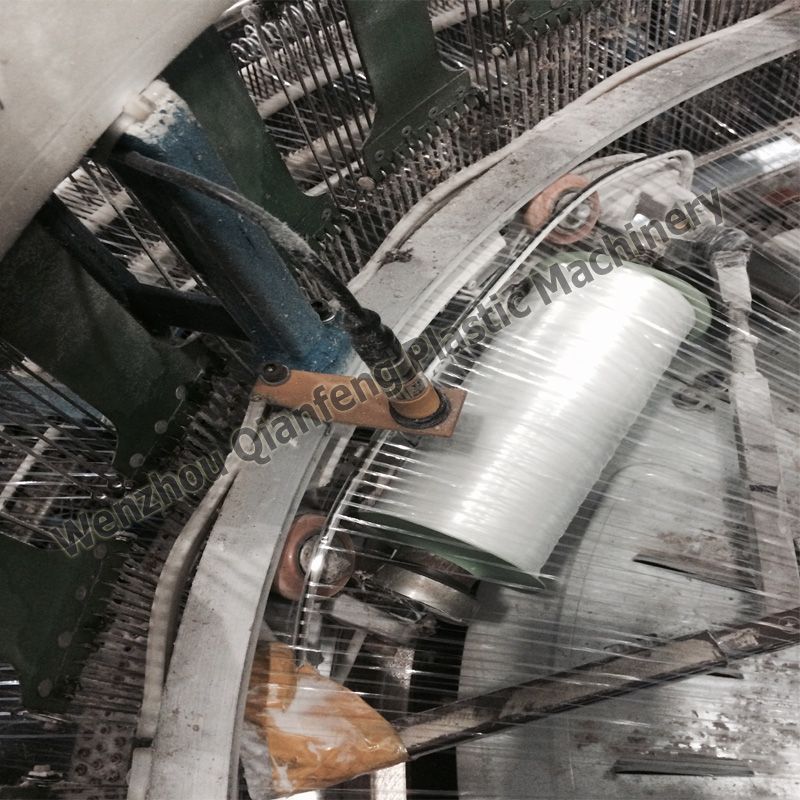

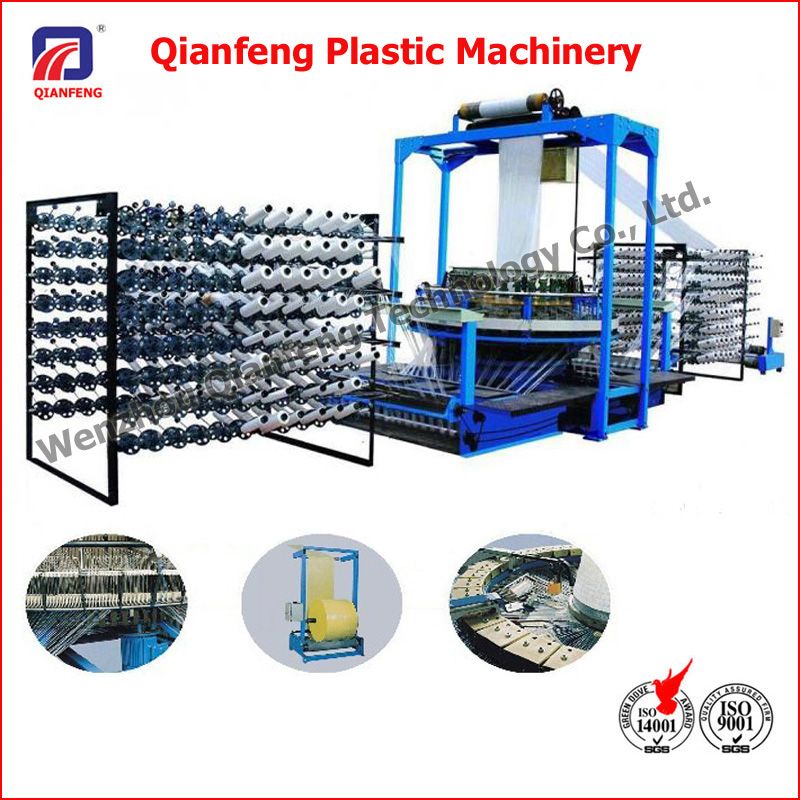

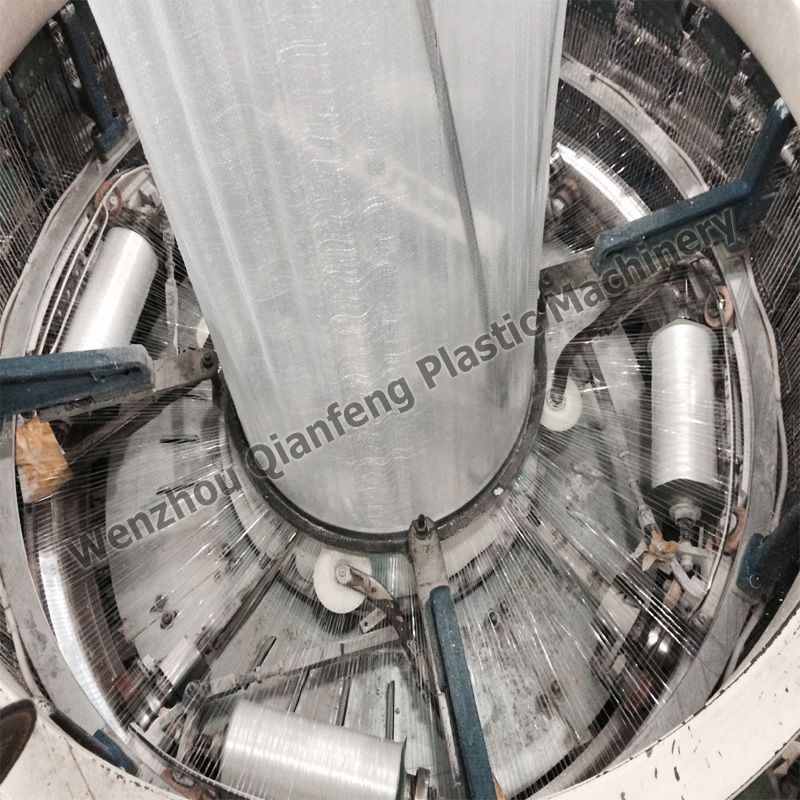

Machine and Patent photos:
Advantage&Service
1. several senior engineers service in our factory, all the year round, with our best after-sales.
2.Machines with quality guarantee for one year, life-long maintenance.
3.A lot of machines can be monitored via Internet, solve customer requirements immediately
4.Several senior engineers innovate and reform the technology continuous, in order to ensure the quality of mechanical stability.
5.Undertake various non-standard machinery, solve the customers' special requirements
Sales Manager: Rukiya Lam
Tel: 86-018968759159 Fax: 86-577-63682893 Cell: 86-(0)-15158760199
Address:C37, Economic Development Zone, Aojiang, Pingyang, Wenzhou, Zhejiang, ChinaWebsite and Showroom:
Contact us now, expect the cooperation with you!!!!
