- Model NO.: PGG
- Application: Retaining Wall, Steep Slop, Dam, Road Base
- Function: Anti-slip, Reinforcement
- Material: Polyester
- Model Number: 25kn-300kn
- Elongation Rate: <=13%
- Roll Length: 50m-100m
- Transport Package: PVC Tube+PE Film
- Origin: Taian, Shandong, China
- Color: Black
- Viscose: With Viscose
- Classification: Polyester Geogrid
- Name: Pet-120-120kn 25.4mmx25.4mm/12.7mm*12.7mm 6mx50m W
- Mesh Size: 12.7*12.7mm. 25.4*25.4mm
- Roll Width: 1-6m
- Trademark: cadeer
- Specification: ISO9002
- HS Code: 7019399000

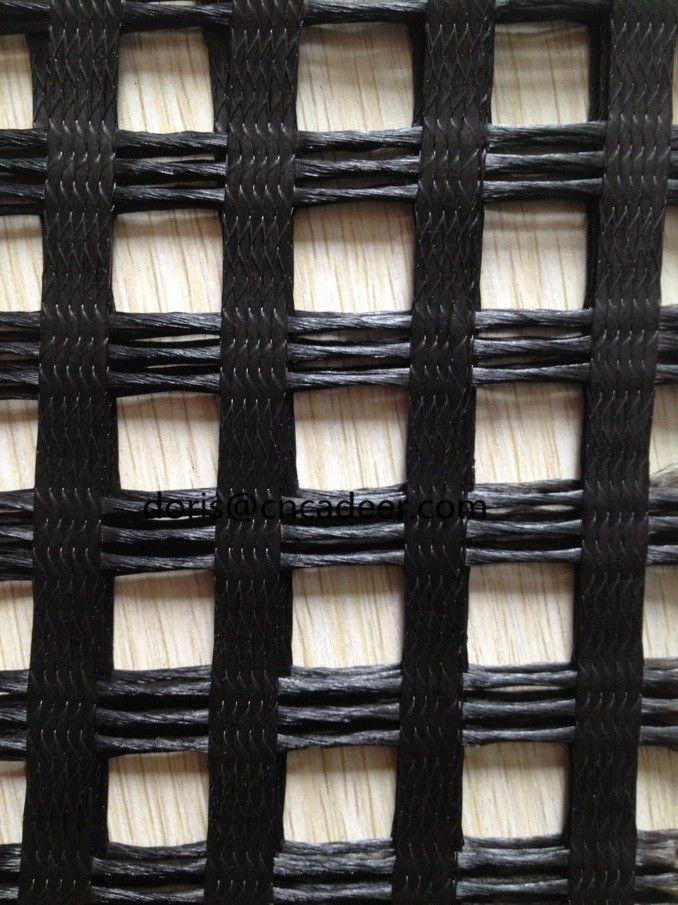

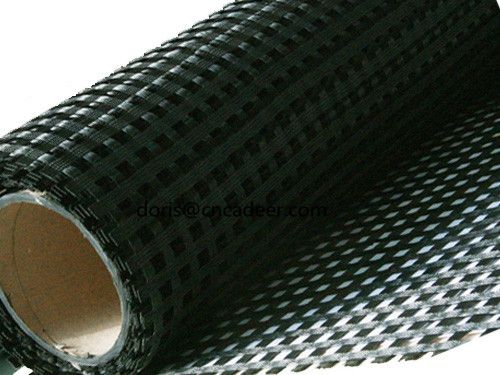

PET-120-120KN 25.4mmX25.4mm/12.7mm*12.7mm 6mX50m Warp Knitting Polyester Geogrid
[APPLICATION]
(1)Roadbed reinforcement of road and railway,crack prevention,increase of roadbed strength;
(2)Reinforcement and stabilization of riverside,embankment and side slope;
(3)Dyke reinforcement on soft ground for stress evenness,sedimentation adjustment,increase of stability and loading capacity of fundus;
(4)Reinforcement of the surface of road and bridge.
[PROPERTIES]
(1)High intension,high tenacity,high occlusive force with soil or gravel,erosion-resistant,water drainage,light weigth.
(2)Reinforce soft soil roadbed,rib side slope of embankment,enhance isolation,inhibit ground deformation,prevent crack by reflection,increase strength of roadbed.
[TECHNICAL SPECIFICATION]
| Warp Knitted polyester geogrid standard type | ||||||||||||
| Performance/specification | PET-20-20 | PET-30-30 | PET-40-40 | PET-50-50 | PET-80-80 | PET-100-100 | PET-120-120 | PET-140-140 | PET-180-180 | PET-200-200 | PET-300-300 | |
| Stretching ratio% | 13 | |||||||||||
| Iintensity KN/M | Vertical | 20 | 30 | 40 | 50 | 80 | 100 | 120 | 140 | 180 | 200 | 300 |
| Horizontal | 20 | 30 | 40 | 50 | 80 | 100 | 120 | 140 | 180 | 200 | 300 | |
| Center distance of the network (mm) | 12.7*12.7 25.4*25.4 40*40 | |||||||||||
| Breadth m | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | |
| Warp Knitted polyester geogrid heterogeneous type | ||||||||||||
| Performance/specification | PET-50-30 | PET-60-35 | PET-80-30 | PET-80-50 | PET-100-50 | PET-100-85 | PET-120-50 | PET-140-60 | PET-180-100 | PET-200-100 | PET-300-200 | |
| Stretching ratio% | 13 | |||||||||||
| Iintensity KN/M | Vertical | 50 | 60 | 80 | 80 | 100 | 100 | 120 | 140 | 180 | 200 | 300 |
| Horizontal | 30 | 35 | 30 | 50 | 50 | 85 | 50 | 60 | 100 | 100 | 200 | |
| Center distance of the network (mm) | 12.7*12.7 25.4*25.4 40*40 | |||||||||||
| Breadth m | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | |
