PVC Plastic Pipe Production Machine for Agriculture and Architecture Water Supply
$20000.00 /piece
Product Details
Transaction Comments
Basic Info
- Model NO.: 16-630mm
- Screw No.: Double-screw
- Computerized: Computerized
- Customized: Customized
- Trademark: Fenghua
- Specification: SJSZ65/132 or according to pipe specification
- Product Type: PVC Pipe
- Automation: Automatic
- Certification: CE, SGS, ISO9001:2008
- Condition: New
- Transport Package: Standard Exporting Packing
- Origin: Zhangjiagang City, Jiang Su, Province, China
Product Description
PVC Machine PVC Pipe Machine

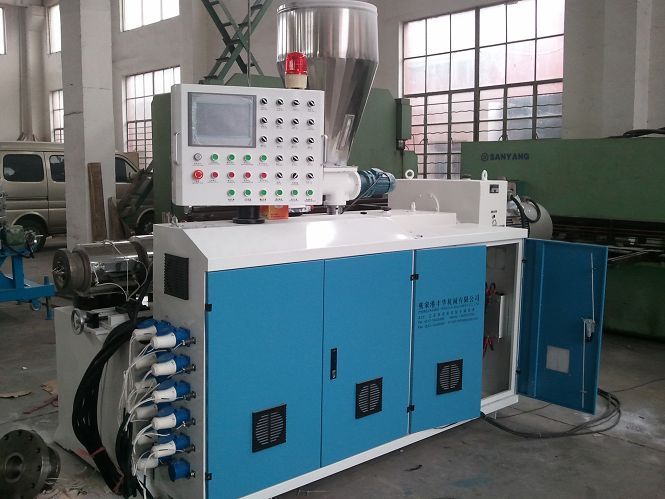

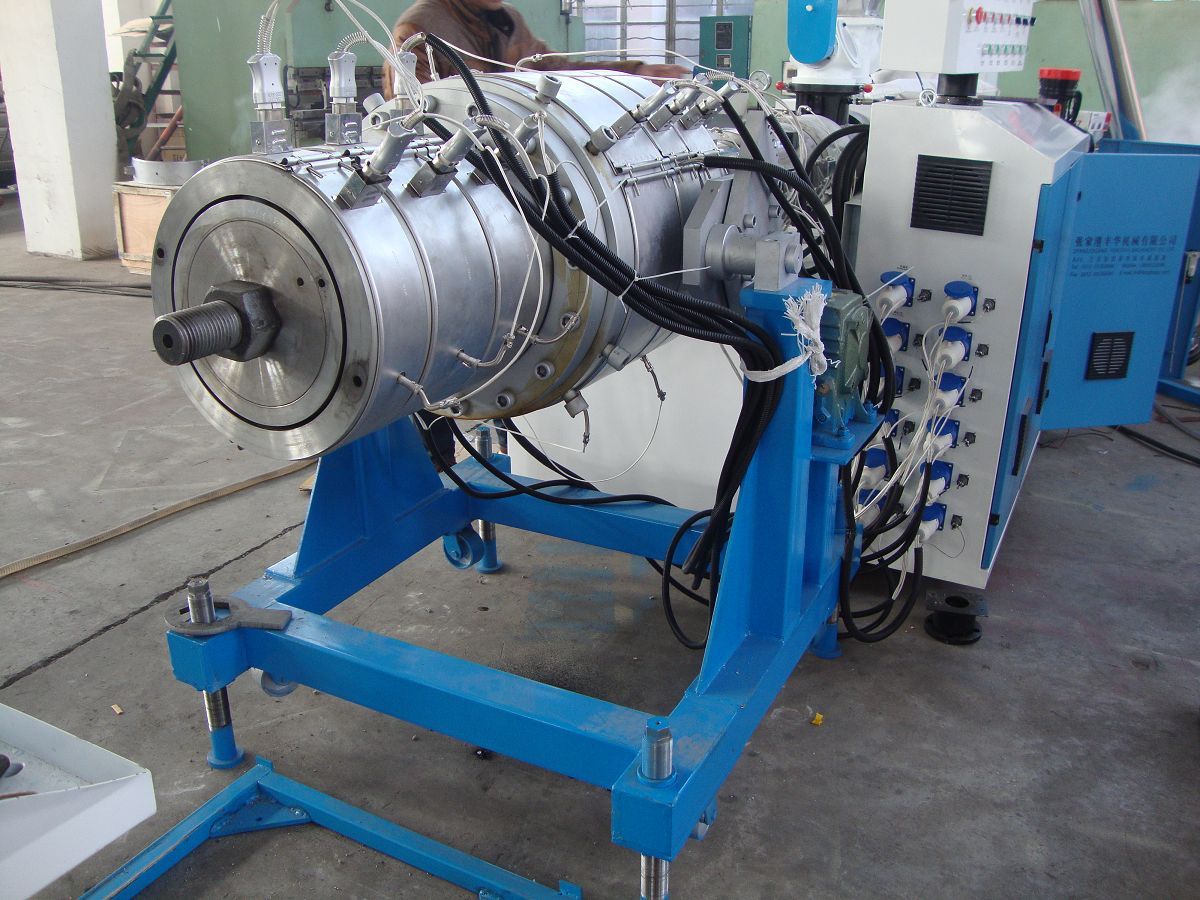

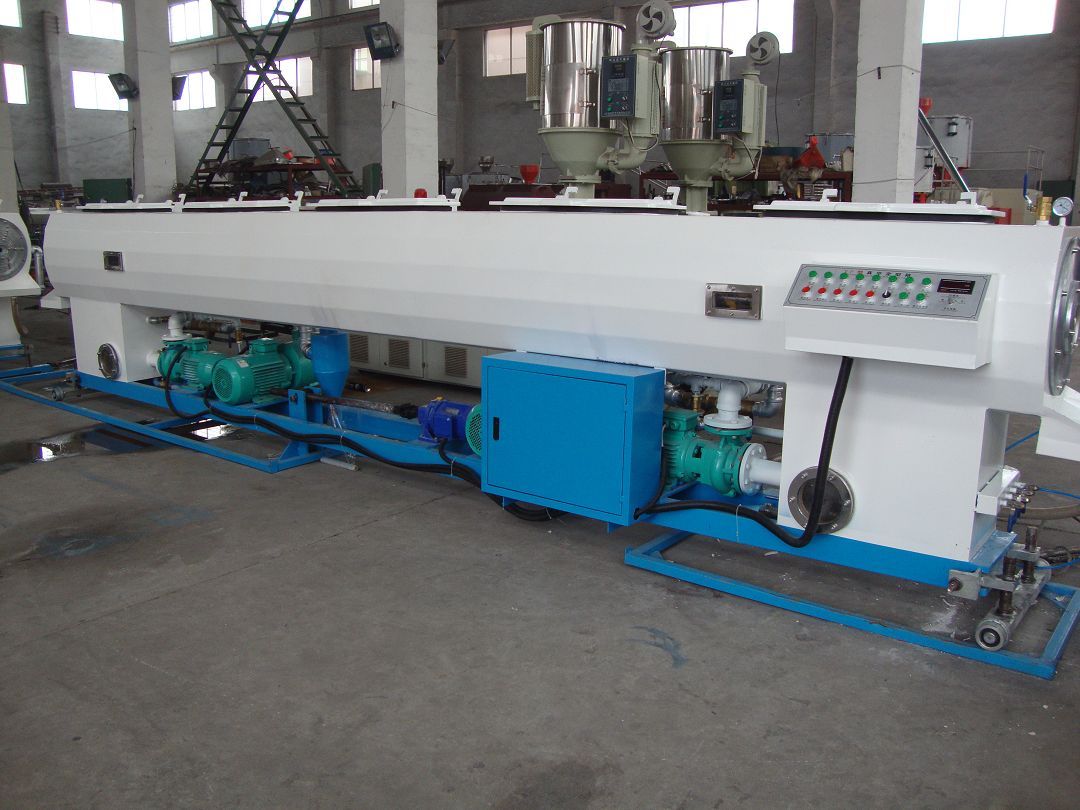

It is mainly used in producing various diameters and pipe-wall thickness of PVC pipes for agriculture and constructional plumbing, cable laying etc. With years of experience, our PVC pipe machine has features of low consumption, high output, stable running etc. The complete PVC pipe machine include: material charger, SJZ series conic twin screw extruder, mould, vacuum calibration tank, spray cooling tank(for big pipe), haul-off, cutter, stacker. Clients also can choose double/four PVC pipe machine to make small size PVC pipes
Production line configuration reference(pvc pipe process machine)
Main parameter reference(pvc pipe machine)
It is mainly used in producing various diameters and pipe-wall thickness of PVC pipes for agriculture and constructional plumbing, cable laying etc. With years of experience, our PVC pipe machine has features of low consumption, high output, stable running etc. The complete PVC pipe machine include: material charger, SJZ series conic twin screw extruder, mould, vacuum calibration tank, spray cooling tank(for big pipe), haul-off, cutter, stacker. Clients also can choose double/four PVC pipe machine to make small size PVC pipes
Production line configuration reference(pvc pipe process machine)
| Item | component | quantity |
| 1. | Screw loader | 1set |
| 2. | conical twin screw extruder | 1set |
| 3. | pipe mold | according to pipe specification in each line |
| 4. | vacuum calibration tank | 1set |
| 5. | water-spray cooling tank | 1set(or optional) |
| 6. | hauling machine | 1set |
| 7. | cutter | 1set |
| 8. | stacker | 1set |
| 9. | High speed mixer unit | 1set |
| 10. | PVC pipe crusher | 1set |
| 11. | PVC milling machine | 1set |
| Model number | PVC-16/63 | PVC-20/110 | PVC-50/160 | PVC-75/250 | PVC-110/315 | PVC-200/450 | PVC-315/630 |
| Pipe diameter | 16-63mm | 20-110mm | 50-160mm | 75-250mm | 110-315mm | 200-450mm | 315-630mm |
| Max output | 120kg/h | 120kg/h | 180kg/h | 300kg/h | 450kg/h | 650kg/h | 800kg/h |
| Production rate | 1.5-15m/min | 0.8-8m/min | 0.5-5m/min | 0.4-4m/min | 0.3-2m/min | 0.1-1m/min | 0.07-0.7m/min |
| Extruder model | SJZ-50/105 | SJZ-50/105 | SJZ-55/110 | SJZ-65/132 | SJZ-80/156 | SJZ-92/188 | SJZ-92/188 |
| Motor power | 45kw | 45kw | 55kw | 75kw | 105kw | 160kw | 205kw |
| Center height | 1000mm | 1000mm | 1000mm | 1000mm | 1100mm | 1100mm | 1200mm |
| Installation area | 22*2.5*2.0m | 24*2.8*2.0m | 24*2.8*2.0m | 30*2.8*2.2m | 35*3.0*2.4 m | 36*3.0*2.4 m | 38*3.2*2.8 m |
