PVC-Papercard Packing Battery Blister Shape Package Machine with Disk Table
$30000.00 /set
Product Details
Transaction Comments
Basic Info
- Model NO.: QB-350
- Driven Type: Electric
- Structure: Upper and Lower Electric Heating Furnace
- Packaging Type: Cartons
- Max. Forming Area: 350X220mm
- Max Depth: 45mm (Can Be Ordered)
- Packing Material: PVC/Pet/PS etc.
- Specification: ODM
- HS Code: 84224000
- Application Field: Food, Medical, Commodity, Machinery & Hardware, Beverage, Chemical, Apparel, Textiles
- Automatic Grade: Automatic
- Packaging Material: Plastic
- Type: General
- Max. Paper Area: 350X220mm
- Thickness/Width: 0.15-0.5mm/200-350
- Trademark: QB
- Origin: Wenzhou
Product Description

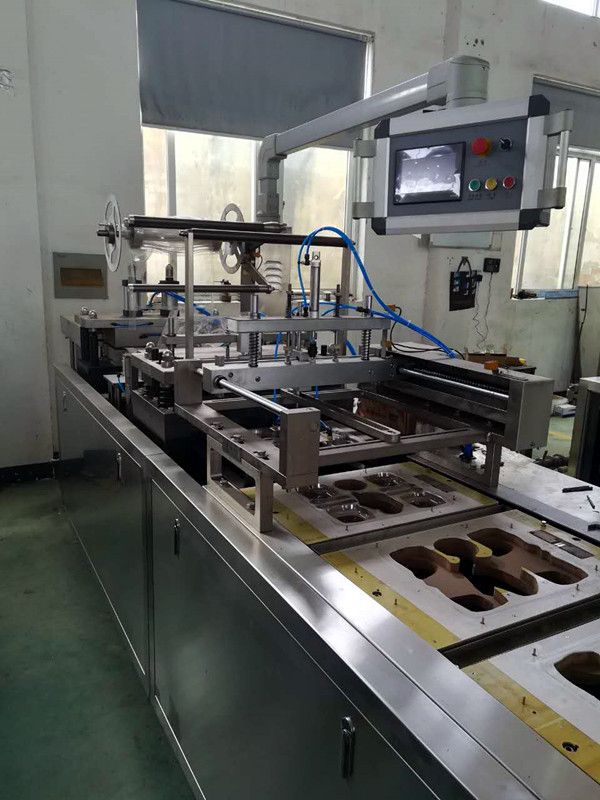

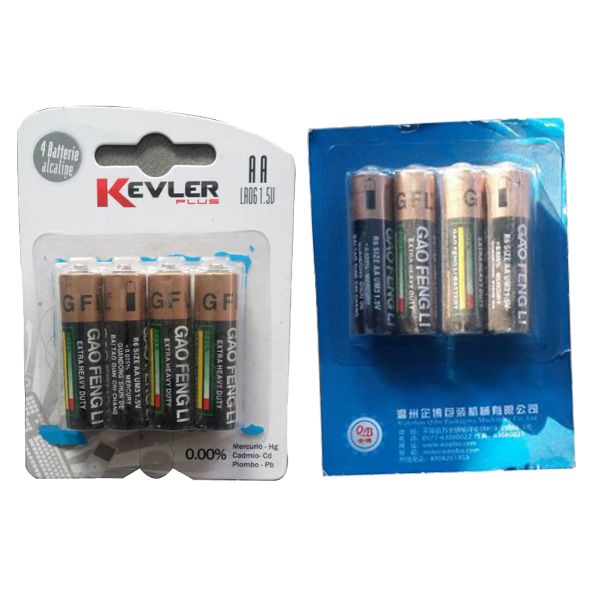

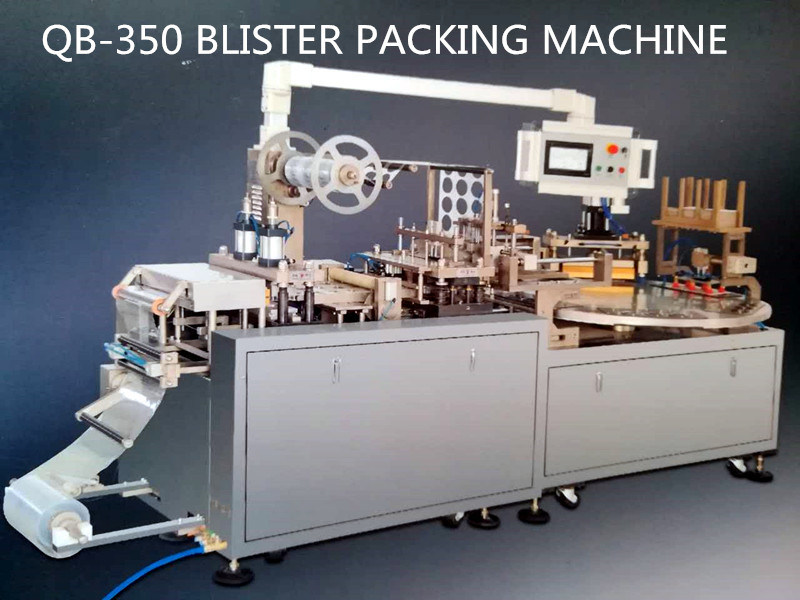

QB-350 pvc-papercard battery blister packing machine
Main Features:
1. Combining thermoforming, cutting, charging, sealing and feeding into one cycle.
2. 304 stainless steel housings, which is nice and easy clean
3. Frequency control, colorful touch screen, human interface and PLC control system. Easy operation and fully automatic.
4. Servo motor realizes variable control of stroke, that lead to easy operation and convenient for mould changing.
5. Photoelectric control will warning while lack of the plastic sheet and paper for sealing.
6. Independent in each station, free for delivery and even move into an elevator.
7. Customer ordered mould and charge-in system.
Parameters
| Cutting capacity | 10-20 cycles/min | Feeding length | 40-250mm |
| Max. forming area | 350X220mm | Air pressure | 0.5-0.8MPa |
| Max. paper area | 350X220mm | Air flow | 0.5M /min |
| Max depth | 45mm (can be ordered) | Power supply | 12kw |
| thickness/width | 0.15-0.5mm/200-350 | Main motor power | 1.5kw |
| Packing material | PVC/PET/PS etc. | weight | 1800Kg |
Quick-wear parts
| Name | Model | quantity |
| Tray sucker | Dia 10mm | 3 |
| Paper sucker | Dia 32mm | 6 |
| Heat sealing plate | 350X200 | 1 |
Mould list
| Name | Material | Note |
| Forming mould | Aluminium alloy | Thermoforming or post forming |
| Cutting negative mould | Cr12 | Heat treating HRC50-52 |
| Cutting positive mould | Cr12 | Heat treating HRC58-60 |
| Guiding bush | Q235A | Carbonization HRC 58°-60 |
| Steel ball set | Brass + roll ball | |
| pillar | GCr15 | Heat treating HRC58-60 |
