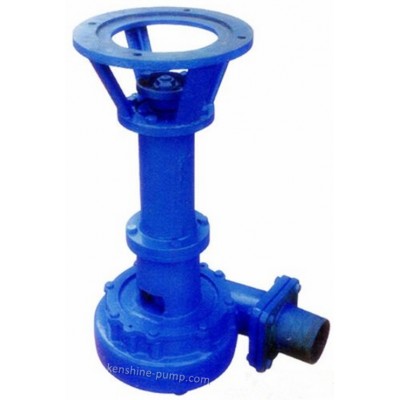

PNL vertical slurry pump is vertical single stage single suction mud pump. PNL vertical slurry pump is suitable to convey liquid containing solid particles. It is widely used in thermal power plant hydraulic ash removal, concentrator concentrate, tailings transportation field and conveying the maximum weight concentration is 50 or 60 percent.
PNL mud pump features
Model PNL Vertical slurry pump is single stage, single suction, centrifugal mud pump, the flow parts of this type of pump are made of wear-resistant alloy material. The pump impeller less 6inch pump is connected to the shaft by thread and the pump above 8 inches is connected by key. The pump has the characteristics of simple structure, reliable, convenient maintenance and long service life
| model | Flow | Head (m) | Speed.n(r/min) | power(kw) | Efficiency(%) | Impeller Dia. | Weight(kg) | ||
| m3/h | L/S | Shaft | Motor | ||||||
| 3PNL | 54 | 15 | 26 | 1450 | 12 | 22 | 32 | 300 | 450 |
| 108 | 30 | 21 | 14.7 | 42 | |||||
| 151 | 42 | 15.5 | 16.7 | 37 | |||||
| 2PNL | 30 | 8.33 | 22 | 1450 | 5.45 | 11 | 33 | 265 | 150 |
| 47 | 13.05 | 19 | 6.25 | 39 | |||||
| 58 | 16.1 | 17 | 6.9 | 39 | |||||
| 8PN | 550 | 152.8 | 63 | 980 | 155 | 210 | 61 | 635 | 4000 |
| 10PN | 1030 | 286.1 | 88 | 980 | 489 | 780 | 50.5 | 750 | 4600 |
| 25PNⅠ(Ⅱ) | 1040 | 288.9 | 75 | 740 | 317.2 | 570 | 67 | 900 | 6500(8000) |
| 25PNⅠ(Ⅱ) | 1040 | 288.9 | 90 | 740 | 380 | 570 | 67 | 965 | 6500(8000) |
| 25PNⅠ(Ⅱ) | 830 | 230.6 | 575 | 590 | 194 | 310 | 67 | 965 | 6500(8000) |
| 25PNⅠ(Ⅱ) | 1000 | 333.3 | 68 | 740 | 276.5 | 475 | 67 | 850 | 6500(8000) |
| 25PNⅠ(Ⅱ) | 800 | 222.2 | 44 | 590 | 143 | 360 | 67 | 850 |
6500(8000 |
