New Type Energy Saving High Efficient PVC Water Pipe Making Machinery
$25000.00 /set
Product Details
Transaction Comments
Basic Info
- Model NO.: PVC
- Screw No.: Double-screw
- Computerized: Computerized
- Customized: Customized
- Power: 15-110kw
- Diamension: 20000*1500*2000mm
- Voltage: 380V, 50Hz or Customized
- Transport Package: Standard Wooden Packaging and PE Film Wrapping
- Origin: Zhangjiagang
- Product Type: PVC Pipe
- Automation: Automatic
- Certification: CE, SGS, ISO9001:2008
- Condition: New
- Production Capacity: 80-750kg/H
- Warranty: 1 Year
- Trademark: Fungwah
- Specification: 16-630mm
- HS Code: 8477800000
Product Description
PVC water pipe making machinery
Product application of double screw PVC pipe production line
Main list of PVC Electric Conduit Pipe Machine

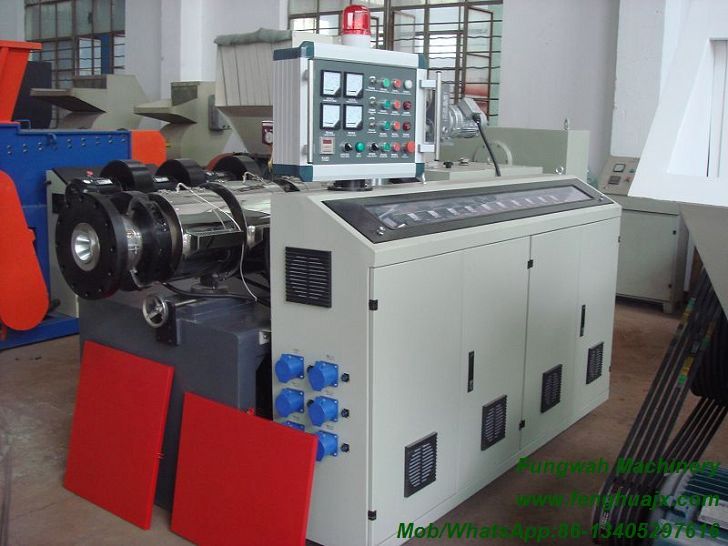

1) The extrusion line incorporates a highly efficient conical twin-screw extruder which is suitable for process PVC powder with high capacity, maximum extrusion capacity up to 1,000 Kg/h;
2) Nice out-look, automatic control and stable running performance;
3) The Haul-off unit can have two claws, three claws, four claws, six claws or eight claws, depending on the pipe diameter;
4) Auxiliary machines closely meet customer specifications.
Packing
- Packaging: poly-wooden case for PVC Pipe Production Line/PVC Water Pipe Making Machine, no need fumigate; bubble films packaging
- We suggest the customer to purchase poly-wooden case packaging; if no, we will fixed the machines on containers walls with steel wires
- Shipping: By Sea or Train
Our Services
- pre-sale services: we will take customers to visit our factory and check the machines quality from airport/bus station/train stations
- we will re-designed the machines according to customer's different raw material formulations: driving motors power, electric power model, wall thickness of barrel, control method
- after sales services: we will offer electric diagram, installation diagram, usage manual
- we will offer the customers online introduction to solve the machines problems/send engineers for customers machines installation, running test, workers training, machines repairing services.
- we will offer customers spare parts at cost prices all life long of the machines
Our factory:
Zhangjiagang FengHua machinery co., LTD is one of the plastic machinery and plastic auxiliary machinery production base, the company is committed to the development of plastics machinery, research and production of advanced technology at home and abroad always pay attention to technical innovation, and constantly develop new products. Main products are: SCP - Q series fully automatic high-speed hollow bottle blowing machine, SJ series single screw plastic extruder, plastic pipe material, heterosexual wood, decorative plates, granulation, such as complete sets of extrusion production line and high and cold mixing, feeding, drying and so on all kinds of plastic auxiliary machinery series, products throughout the country more than 20 provinces and cities, and exported to the Middle East and Russia and other countries.
Today the quality of tomorrow's market.
Start now! Look to the future!
FAQ
Q-1, Are you factory or trading company?
A: we are professional manufacturer of plastic machines with over 10 years experience.
Q-2, Where is your factory located? Is it convenient for me to visit?
A: our factory is located in ZHANGJIAGANG city, Jiangsu Province, China. It's 2 hours from SHANGHAI HONGQIAO airport by car;
It's 2.5 hours from SHANGHA PUDONG INTERNATIONAL AIRPORT.
Both HONGQIAO and PUDONG airports has direct bus to our city. Which is very convenient for customer come to us.
Q-3, Whether your machines do quality checking before delivery:
A: Our factory's standard processing step will ask us do running test to the machines before delivery.
Q-4, Whether your company will send engineer to help customer install, running the machines and training the workers?
A: we have 5 skilled and rich experience engineers ready for customer's requirement.
Q-5, What's your machines quality guarantee period and service after quality guarantee period
A: we will offer our machines one year quality guarantee since the machines arrive at customer's factory. During this period, if the customer's machines broke down cause the quality reason, we will send free spare parts or send engineers for repair for free.
If the machines out of quality guarantee period, we will offer spare parts and repair services at cost prices for life long time of machines.
Q-6, Payment Terms your company accepted?
A: generally we accept TT, L/C at sight.
TT 30% as deposit; TT 70% before delivery.
L/C at sight of total amount.
Product application of double screw PVC pipe production line
PVC pipe extrusion line is mainly used in making UPVC and PVC pipes with various tube diameters and wall thickness. Pipe is applied to agricultural and construction water supply and drainage, overhead or underground wire and cable.
Technical parameter of plastic pipe extrusion line
| Item | PVC63 | PVC160 | PVC250 | PVC315 | PVC450 | PVC630 |
| Productive pipe scope (mm) | Φ16~Φ63 | Φ75~Φ160 | Φ125-Φ250 | Φ180-Φ315 | Φ200-Φ450 | Φ355-Φ630 |
| Vacuum forming length(mm) | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 |
| Degree of vacuum(Mpa) | -0.03~0.08 | -0.03~0.08 | -0.03~0.08 | -0.03~0.08 | -0.03~0.08 | -0.03~0.08 |
| Max hauling force(N) | 10000 | 15000 | 20000 | 25000 | 30000 | 50000 |
| Hauling speed (m/min/max) | 10 | 6 | 4 | 3 | 2 | 1.4 |
| Effective hauling length (mm) | 1000 | 1500 | 1500 | 1500 | 1600 | 1600 |
| Compressed air volume (m3/h) | 0.4 | 0.6 | 1.0 | 1.2 | 1.5 | 2.0 |
| Refilled water volume (m3/h) | 5 | 6 | 7 | 8 | 9 | 12 |
| Line length (m) | 20 | 22 | 30 | 30 | 36 | 42 |
Main list of PVC Electric Conduit Pipe Machine
| No | Name | Qty. |
| 1 | Mixing unit | 1set |
| 2 | Plastic feeder | 1set |
| 3 | Conical twin screw extruder (SJSZ series) | 1set |
| 4 | Mould | 2sets |
| 5 | Vacuum calibration tank | 1set |
| 6 | Caterpillar haul-off machine | 1set |
| 7 | Saw cutter | 1set |
Main features of pvc pipe making machine
1) The extrusion line incorporates a highly efficient conical twin-screw extruder which is suitable for process PVC powder with high capacity, maximum extrusion capacity up to 1,000 Kg/h;2) Nice out-look, automatic control and stable running performance;
3) The Haul-off unit can have two claws, three claws, four claws, six claws or eight claws, depending on the pipe diameter;
4) Auxiliary machines closely meet customer specifications.
Packing
- Packaging: poly-wooden case for PVC Pipe Production Line/PVC Water Pipe Making Machine, no need fumigate; bubble films packaging
- We suggest the customer to purchase poly-wooden case packaging; if no, we will fixed the machines on containers walls with steel wires
- Shipping: By Sea or Train
Our Services
- pre-sale services: we will take customers to visit our factory and check the machines quality from airport/bus station/train stations
- we will re-designed the machines according to customer's different raw material formulations: driving motors power, electric power model, wall thickness of barrel, control method
- after sales services: we will offer electric diagram, installation diagram, usage manual
- we will offer the customers online introduction to solve the machines problems/send engineers for customers machines installation, running test, workers training, machines repairing services.
- we will offer customers spare parts at cost prices all life long of the machines
Our factory:
Zhangjiagang FengHua machinery co., LTD is one of the plastic machinery and plastic auxiliary machinery production base, the company is committed to the development of plastics machinery, research and production of advanced technology at home and abroad always pay attention to technical innovation, and constantly develop new products. Main products are: SCP - Q series fully automatic high-speed hollow bottle blowing machine, SJ series single screw plastic extruder, plastic pipe material, heterosexual wood, decorative plates, granulation, such as complete sets of extrusion production line and high and cold mixing, feeding, drying and so on all kinds of plastic auxiliary machinery series, products throughout the country more than 20 provinces and cities, and exported to the Middle East and Russia and other countries.
Today the quality of tomorrow's market.
Start now! Look to the future!
FAQ
Q-1, Are you factory or trading company?
A: we are professional manufacturer of plastic machines with over 10 years experience.
Q-2, Where is your factory located? Is it convenient for me to visit?
A: our factory is located in ZHANGJIAGANG city, Jiangsu Province, China. It's 2 hours from SHANGHAI HONGQIAO airport by car;
It's 2.5 hours from SHANGHA PUDONG INTERNATIONAL AIRPORT.
Both HONGQIAO and PUDONG airports has direct bus to our city. Which is very convenient for customer come to us.
Q-3, Whether your machines do quality checking before delivery:
A: Our factory's standard processing step will ask us do running test to the machines before delivery.
Q-4, Whether your company will send engineer to help customer install, running the machines and training the workers?
A: we have 5 skilled and rich experience engineers ready for customer's requirement.
Q-5, What's your machines quality guarantee period and service after quality guarantee period
A: we will offer our machines one year quality guarantee since the machines arrive at customer's factory. During this period, if the customer's machines broke down cause the quality reason, we will send free spare parts or send engineers for repair for free.
If the machines out of quality guarantee period, we will offer spare parts and repair services at cost prices for life long time of machines.
Q-6, Payment Terms your company accepted?
A: generally we accept TT, L/C at sight.
TT 30% as deposit; TT 70% before delivery.
L/C at sight of total amount.
