Mushroom Climate Control Machine for Button Mushroom (temperature, humidity and CO2 control)
$6700.00 /piece
Stock: 1000 pieces
Quantity:
-+
Min Order: 1 piece
Seller Support:
Trade Assurance — To protect your orders from payment to delivery
Product Details
Transaction Comments
Basic Info
  • Model NO.: QSB24FC-CG
  • Refrigerant: Freon
  • Structure: Assembled
  • Suitable for: Mushroom Farm
  • Warranty: 1-2 Years
  • Condition: New
  • Cooling Capacit: 22.7kw
  • Condenser Mode: Inside Screwed Shell and Tube
  • Power Form: 380V/50Hz/3p
  • Trademark: KF
  • Specification: 22.7kw cooling capacity
  • HS Code: 841899090
  • Temperature: 16deg.C
  • Size: Medium
  • Use Nature: Production
  • Usage: Food
  • Certification: ISO
  • Type: Mushroom Chiller
  • Compressor Mode: Full-Hermetic Scroll Soft Type
  • Style: Double-Temperature
  • Cooling Method: Direct Cooling
  • Transport Package: Packed in Air Bubble Film Inside, Then in Plywood
  • Origin: Zhejiang, China (Mainland)
Product Description

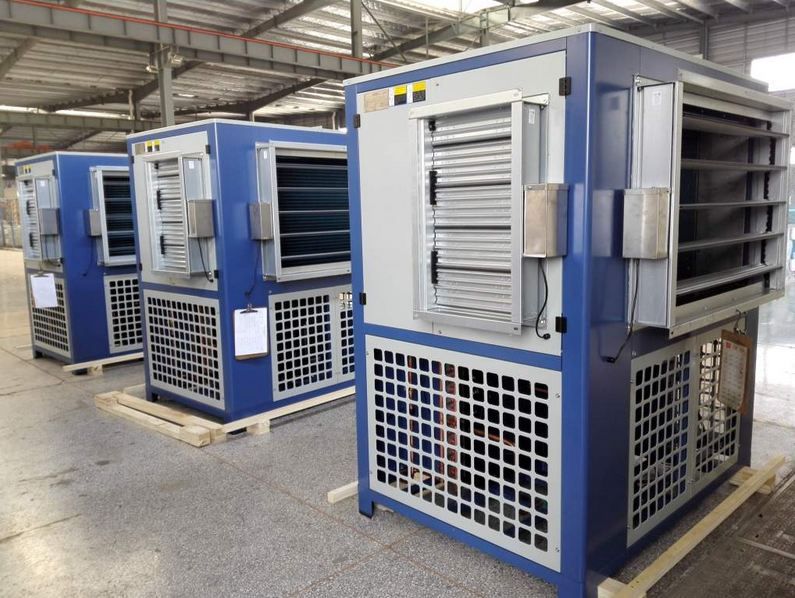

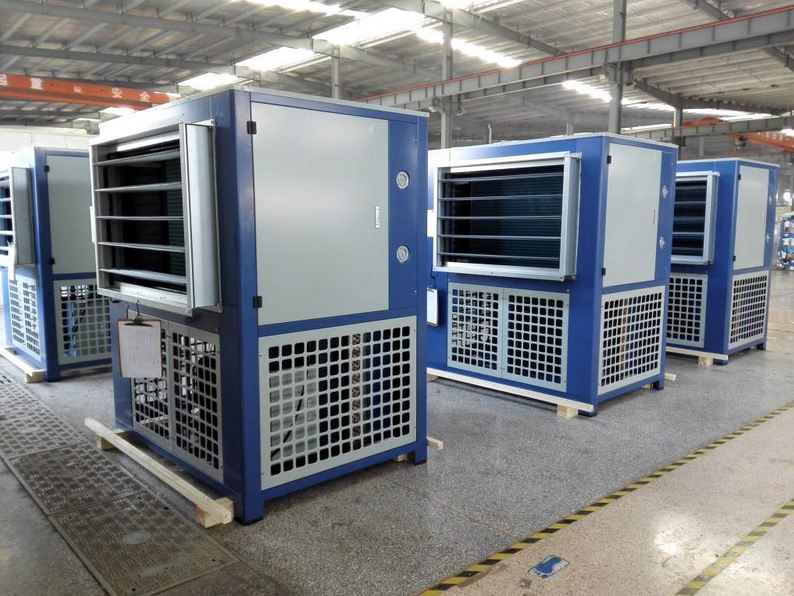

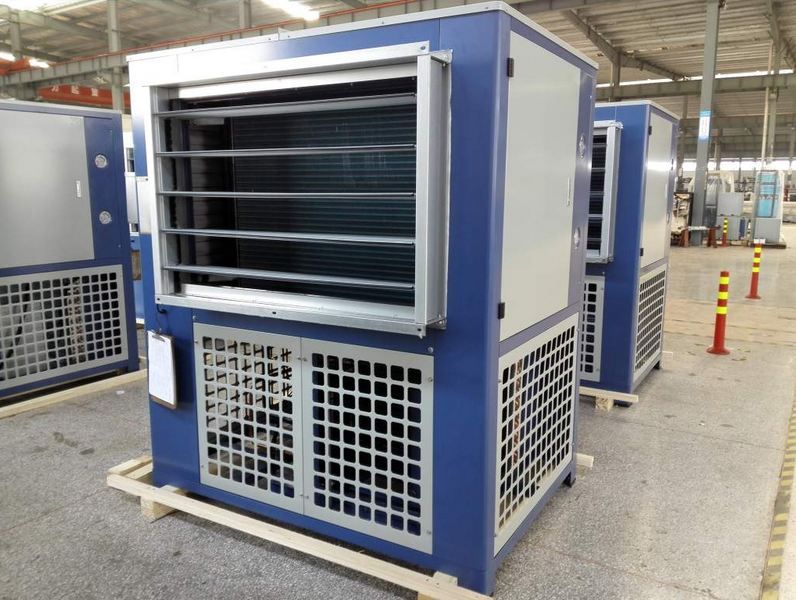

Mushroom growing room climate control machine

Product features

>> Wide range and Precise control leaving air temp
Make the minimum accurate to be 0.1 ° C.

>> Proportional control new air input the room, it can
Precise control the concentration of CO2 in the mushroom
Room. It has the faction of supply new air, middle
Effect of purfication and precooling.

>> Humidity testing and control provide mushroom
Room illumination control signal.

>> Return air purification and mushroom room air
Circulation, The uniformity of air supply all of these make
A equilibrium production environment in the mushroom.

Advantages

>> All in one structure, indoor and outdoor unit are
Integrated. It is easy installation and can be used just
Want to connect the power and ventilation duct;

>> Evaporator adopt anti-oxidation fin, big wind
Centrifugal fan and dampproof motor; Stainless steel
Bellows so it suitable to be used in the high humidity
Work environment.

>> Condensate water recycling can improve EER and
Environmental cleanliness.

>> The machine is detected fully in the plant, the
Quality is reliable;

>> Automatic detection fault shorten maintenance time

>> Safe and reliable operation, strong electricity is
Outside the mushroom room, no fire hazard.

>> Reduce investment
It can use gas chamber and new fans.
It can be used without hermetic cabin
Reduce the intelligent electric cabinet.
Reduce the mushroom room height more than 50 cm.

model QSB17S QSB27S QSB33S QSB40S QSB50S QSB66S QSB15F QSB24F QSB30F QSB36F QSB45F QSB59F
cooling
capacity
kw 19.7 26.5 39.4 47.6 59.1 83.4 17.4 28.4 34.8 42.3 52.2 74.2
kcal 16942 22790 33884 40936 50826 71724 14964 24424 29928 36378 44892 63812
COP 5.93 6.35 5.93 6.49 5.93 6.6 4.14 4.58 4.14 4.53 4.14 4.5
input  power 3PH-380V/50HZ
compressor mode full-hermetic  scroll  style  compressor
horsepower 5HP 8HP 10HP 12HP 15HP 20HP 5HP 8HP 10HP 12HP 15HP 20HP
input  power(kw) 3.32 4.17 6.64 7.34 9.96 12.64 4.2 6.2 8.4 9.33 12.6 16.48
rated  load  current(A) 7.04 8.86 14.08 13.67 21.12 24.76 8.02 11.7 16.04 16.47 24.06 29.58
power  of  centrifugal  fan(kw) 0.4 1 2.2 2.2 1.5 3.5 0.4 1 2.2 2.2 1.5 3.5
matching  wire  (mm2) 6 6 6 10 10 10 6 6 6 10 10 10
way  to  unload  (%) 0, 100 0, 50, 100 0, 100 33, 66, 100 0, 50, 100 0, 100 0, 50, 100 0, 100 33, 66, 100 0, 50, 100
refrigerant   R22
condenser mode High  efficient  external  screwed  shell  and  tube High  efficient  inside  screw  tube  shinizu  fin  style
cooling  water  flow(m3/h) 3.9 5.3 7.9 9.4 11.8 16.5
cooling  water  temperature inlet  water  30  degrees, outlet  water  35degrees, air  condenser  temperature  50  degrees
evaporator mode High  efficient  inside  screw  tube  shinizu  fin  style
normal  air  vaume(m3/h) 2800 4200 5300 6500 8000 10800 2800 4200 5300 6500 8000 10800
normal  static  press(kpa) 220 250 250 300 300 350 220 250 250 300 300 350
evaporating  temperature evaporating  temperature  12  degrees
throttle  methods external  balance  expansion  valve
purfication  device return  air  primary  filter, fresh  air  intermediate-acting  filter
control  function fill  up  air  humidity, illumination  signal, microcirculation
safty  protection leakage  protection, overpressure  and  anti-phase  protection, rerigerant  abnormality  protection,
compressor  over  temperature  protection, lack  of  water  protection, andautomatic  fault  detection, etc.
piping  connection cooling  water  in& outlet  diameter DN25 DN40 DN40 DN40 DN50 DN50
weight    (kgs) 240 290 314 375 475 533 360 360 379 435 535 612
overall  size(LxWxH)mm 110 1300 1500 1600 1800 2100 1100 1500 1600 1600 1900 2100
900 750 1050 1050 1050 1050 900 900 1050 1050 1250 1250
1630 1630 1630 1700 1700 1830 1680 1680 1800 1800 2060 2060
