Diameter:4mm,6.4mm,11.1mm,15mm,18mm;

Operating Temperature:-53℃ to 232℃ when using PTFE packing

Working pressure:NVM up to 6000psig(413bar)

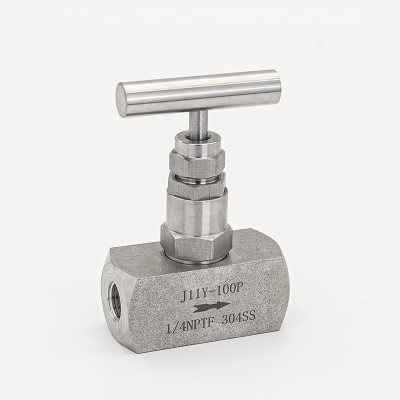

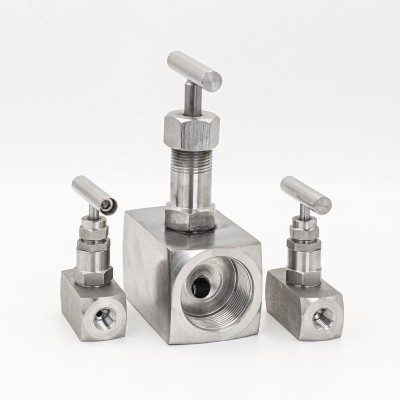

Product Overview

Cold-drawn square bar stock or one-piece forged body design;

Valve body material:316 stainless steel,please contact Zorgon for other materials;

Maximum working pressure:NVM up to 6,000psig(413bar);

Diameter:4mm,6.4mm,11.1mm,15mm,18mm;

Operating Temperature:-53℃ to 232℃ when using PTFE packing

Temperatures up to 315℃ when using PEEK packing

When using graphite packing,the temperature can reach 648℃

Interface Type:1/8″ to 1″(3mm to 25mm) double ferrule

1/8″ to 1″thread

1/8″ to 1″ (3mm to 25mm) welded

Two stem options available:Ball type and modulating type

Two flow options are available:Straight type and 90° angled type

Panel mount available

NV series

One-piece forged valve body design;

Body material:316 stainless and brass,other materials please contact Zorgon company;

Diameter:2.0mm,4.4mm,6.4mm,9.5mm;

Maximum working pressure:6000psig(206bar)

Operating temperature:-54℃ to 315℃（-65F to 600F)

232℃(454F)maximum temperature with PTFE packing

315℃(600F)maximum temperature with PEEK packing

Sealing surface material:Consistent with the material of the valve body and valve tip

Lower stem tip type:one-piece type or split type

One-piece:adjustable type,V-type,

Split type:regulating type,V-shaped soft seat,

The valve tip is heat treated;

Interface type and size;

1/8″ to 3/4″(3mm to 20mm)double ferrule

1/8″ to 3/4″ thread

1/8″ to 3/4″ (3mm to 20mm) welded

Two flow options are available:straight type and 90° angled type

Panel mount available
