- Model NO.: ZG-A
- Gluing Mode: Automatic Paper Paste Gluing Machine
- Glue Type: Hot Melt Adhesive
- Driven Type: Electric
- Electricity Voltage: Made to Customer Request
- Transport Package: Plastic Film and Wooden Box
- Origin: China
- Automatic Grade: Semi-Automatic
- Packaging Material: Paper
- Application: Machinery & Hardware, Food, Commodity, Shoe, Chemical, Beverage, Medical, Textiles, Apparel, Leather Belt
- Packaging: Cartons
- Trademark: Yush
- Specification: ISO
- HS Code: 8441

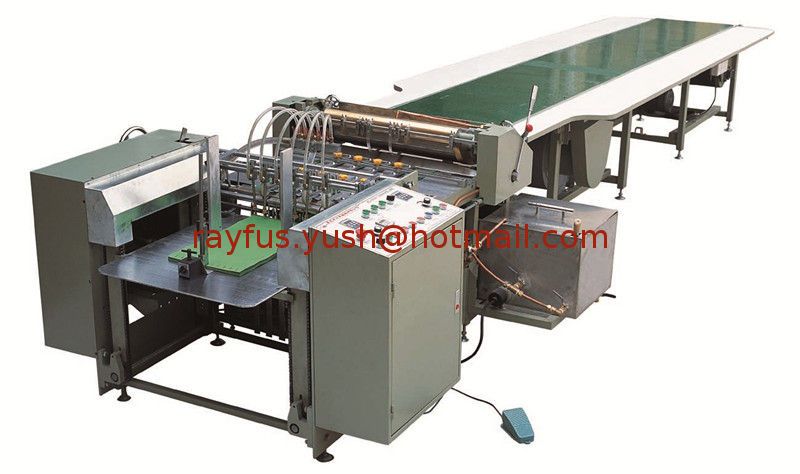

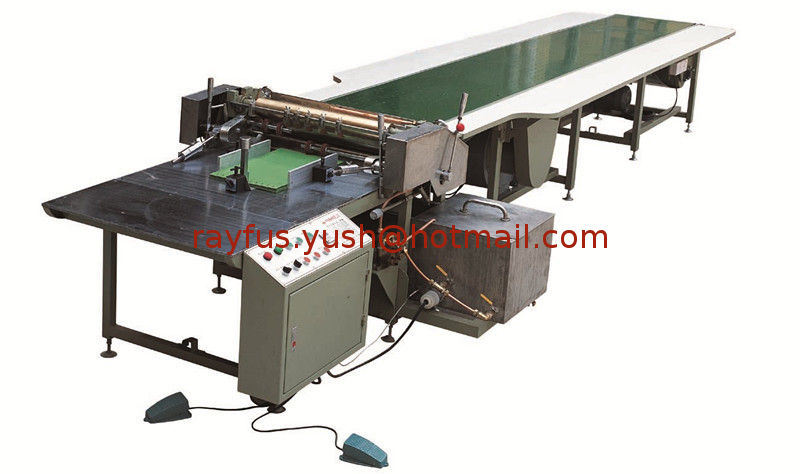

1) ZG-A Manual Feeding Paper Sheet Pasting Machine adopts latest independent design style sheet paper feeder system, new feeder action agencies to ensure long-term stability, paper full throughout suction conveying, no skew conveyor, suitable various kinds of paper size.
2) Paper positioning system adopts high precision from guide, with magnetic side baffle, to ensure paper automatically on the positive, flexible and secure, and that the paper back and forth stack part adjustable, to ensure consistent degree of coincidence.
3) Conveyor ball design, full pressing smooth transmission, with no skew.
4) Glue supply system adopts professional frequency adjustment gear pump, to ensure stable supply of glue while high-strength rapid operation, circular design, significantly reduce the loss of glue. High-precision adjustable glue roller, easy operation, glue pasting more uniform and save glue.
5) Circulating glue tank, with indirect heating and temperature control system, to ensure the glue suitable viscosity stable for a long time, built-in cleaning system, could finish cleaning within five minutes.
6) Conveyor device with suction system, separate paper and stable suction delivery, convenient location, to ensure the entire line flow process.
Paper Width |
80~600mm |
Paper Thickness |
80~250gsm |
Cardboard Thickness |
1~4mm |
Production Speed |
7~40pcs/min |
