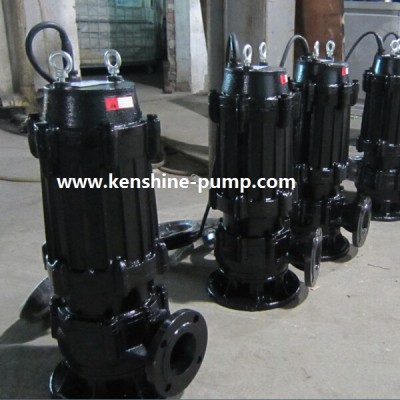

JYWQ,JPWQ Submersible sewage pump with automatic agitator device

$680.00 /Set


Stock:	1000 Sets
Quantity:	-+ Min Order: 1 piece

Entrust Procurement

Send Inquiry

Seller Support:

Trade Assurance — To protect your orders from payment to delivery

Product Details

Transaction Comments

JYWQ,JPWQ Series automatically agitator sewage pump
JYWQ,JPWQ Series automatically agitator sewage pump adopts the automatically agitator device on the base of ordinary sewage pump. The automatically agitator device is driven to run by electric motor and affects the strong homogenizing force. The strong agitating force agitates he deposit into suspender and suck into pumps and then discharge them. So it improves the performance of not clogging and sewage discharge. It finishes water discharge and cleanning sewage and saves the cost. The pumps are ideal environment protection products.
Remark: JYWQ series is automatically homogenizing sewage pump made of cast iron
JPWQ series is the automatically agitating sewage pump with stainless steel cylinder and inner circulation cooling system..

1. Waste water discharge in factory and commercial zone
2. Waste water discharge in city
3. Water discharge station in residence.
4. Floodwater discharge
5. Sewage discharge in hospital and restaurant.
6. Sewage system of municipal works
7. Transport machine in mine and detection

Structure characteristic
1. Double passage not clogging impeller improves the sewage discharge.
2. Automatically homogenizing device affects strong homogenizing force. The force homogenizes the deposit into suspender and suck into pump and then discharge them.
3. Baffle devides the base seat into two parts. The water entering and homogenizing do not affect each other.
4. Double surface mechanical seal in oil chamber insures the steady operation of pump
5. Dynamic seal with vice impeller structure can help the mechanical seal and balance the axial force and prolongs the life of bearing.
6. Detector of water leak is in terminal box of pump. When water leaks，detector gives the signal to protect the pump.
7. Stator of motor has the B class insulation and F class insulation and be with heating protection. When motor heats for overloading, heating protection can give out the signal and protect the pump.
8. Oil detector is set in oil chamber. Water enters into oil chamber when mechanical seal is damaged. Detector gives out the signal to protect the pump.
9. JPWQ series with inner circulation cooling system can insure the normal operation when pump is in the lowest water level.

Parameter:

NO.	Model	Discharge diameter (mm)	Capacity (m³/h)	Head (m)	Agitating diameter(mm)	Speed (r/min)	Power (KW)
1	50-12-15-1200-1.5	50	12	15	1200	2900	1.5
2	50-20-7-1200-1.1	50	20	7	1200	2900	1.1
3	50-10-10-1200-1.1	50	10	10	1200	2900	1.1
4	50-15-15-1200-2.2	50	15	15	1200	2900	2.2
5	50-25-10-1200-2.2	50	25	10	1200	2900	2.2
6	50-15-20-1200-2.2	50	15	20	1200	2900	2.2
7	50-20-15-1200-2.2	50	20	15	1200	2900	2.2
8	50-42-9-1200-3	50	42	9	1200	2900	3
9	50-17-25-1200-3	50	17	25	1200	2900	3
10	50-25-22-1200-4	50	25	22	1200	2900	4
11	50-40-15-1400-4	50	40	15	1400	2900	4
12	50-25-32-1600-5.5	50	25	32	1600	2900	5.5
13	50-40-30-1600-7.5	50	40	30	1600	2900	7.5
14	65-25-15-1400-3	65	25	15	1400	2900	3
15	65-37--13-1400-3	65	37	13	1400	2900	3
16	65-25-28-1400-4	65	25	28	1400	2900	4
17	80-40-7-1600-2.2	80	40	7	1600	2900	2.2
18	80-29-8-1600-2.2	80	29	8	1600	2900	2.2
19	80-43-13-1600-4	80	43	13	1600	2900	4
20	80-50-10-1600-3	80	50	10	1600	1450	3
21	80-40-15-1600-4	80	40	15	1600	2900	4
22	80-60-13-1600-4	80	60	13	1600	2900	4
23	80-35-25-1600-5.5	80	35	25	1600	2900	5.5
24	80-50-25-1600-7.5	80	50	25	1600	2900	7.5
25	80-50-30-1600-7.5	80	50	30	1600	2900	7.5
26	100-80-9-2000-4	100	80	9	2000	1450	4
27	100-110-10-2000-5.5	100	110	10	2000	1450	5.5
28	100-70-15-2000-5.5	100	70	15	2000	1450	5.5
29	100-100-15-2000-7.5	100	100	15	2000	1450	7.5
30	100-80-20-2000-7.5	100	80	20	2000	2900	7.5
31	100-50-35-2000-11	100	50	35	2000	2900	11
32	100-70-22-2000-7.5	100	70	22	2000	2900	7.5
33	100-100-22-2000-15	100	100	22	2000	1450	15
34	100-80-30-2000-15	100	80	30	2000	1450	15
35	150-150-10-2000-7.5	150	150	10	2000	1450	7.5
36	150-210-7-2500-7.5	150	210	7	2500	1450	7.5
37	150-250-6-2500-7.5	150	250	6	2500	1450	7.5
38	150-150-15-2500-11	150	150	15	2500	1450	11
39	150-200-10-2500-15	150	200	10	2500	1450	15
40	150-65-40-3200-18.5	150	65	40	3200	1450	18.5
41	150-180-22-2600-18.5	150	180	22	2600	1450	18.5
42	150-150-26-2600-18.5	150	150	26	2600	1450	18.5
43	150-110-30-2600-18.5	150	110	30	2600	1450	18.5
44	150-300-15-2600-22	150	300	15	2600	1450	22
45	150-130-30-2600-22	150	130	30	2600	1450	22
46	150-100-40-3000-30	150	100	40	3000	1450	30
47	200-300-7-3000-30	200	300	7	3000	1450	11
48	200-250-11-3000-15	200	250	11	3000	1450	15
49	200-300-10-3000-1.5	200	300	10	3000	1450	15
50	200-250-15-3000-18.5	200	250	15	3000	1450	18.5
51	200-400-10-3000-22	200	400	10	3000	1450	22
52	200-200-20-3000-22	200	200	20	3000	1450	22
53	200-250-22-3000-30	200	250	22	3000	1450	30
54	250-600-7-3000-22	250	600	7	3000	1450	22
55	250-600-9-3000-30	250	600	9	3000	1450	30
