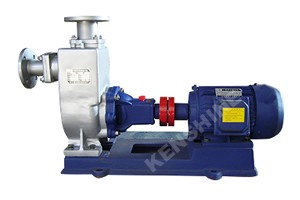

JMZ Series stainless steel self priming pump is for stainless steel anticorrosion self priming pump and also called as alcohol transfer explosion-proof pump. The pump with high quality mechanical seal has the advantages such as safety, explosion-proof, no leakage etc and the pump has compact structure, small sizes, light weight and convenient operation.
The pump can suck the liquid without the bottom valve. The pump is widely used to transfer alcohol, drinks, asoline, beverage, milk, drug ,solvent oil and other similar corrosive liquids at the temperature from -35 to 120 degree Celsius.
|
Model |
Caliber(mm) |
Capacity(m3/h) |
Head(m) |
Suction height(m) |
Motor power(kw) |
Speed(r/min) |
|
|
Inlet |
oultet |
||||||
|
25JMZ-22 |
25 |
25 |
3 |
22 |
5 |
1.1 |
2900 |
|
25JMZ-30 |
25 |
25 |
3 |
30 |
6 |
1.5 |
2900 |
|
40JMZ-22 |
40 |
25 |
6 |
22 |
5 |
1.5 |
2900 |
|
40JMZ-30 |
40 |
25 |
6 |
30 |
6 |
2.2 |
2900 |
|
40JMZ-40 |
40 |
25 |
6 |
40 |
6 |
3 |
2900 |
|
50JMZ-22 |
50 |
40 |
12 |
22 |
5 |
2.2 |
2900 |
|
50JMZ-30T |
50 |
50 |
20 |
30 |
6 |
4 |
2900 |
|
50JMZ-40 |
50 |
40 |
12 |
40 |
6 |
4 |
2900 |
|
65JMZ-22 |
65 |
50 |
24 |
22 |
5 |
4 |
2900 |
|
65JMZ-30T |
65 |
65 |
30 |
30 |
6 |
5.5 |
2900 |
|
80JMZ-22 |
80 |
65 |
48 |
22 |
5 |
7.5 |
2900 |
|
80JMZ-30 |
80 |
65 |
48 |
30 |
5 |
7.5 |
2900 |
|
125JMZ-18 |
125 |
100 |
100 |
18 |
5 |
15 |
2900 |
