- Model NO.: LTJ03
- Certification: CE, ISO
- Power Supply: 380V.50Hz
- Air Resource Pressure: 0.6-0.8 MPa
- Trademark: GHL
- Specification: CE
- HS Code: 84649011
- Type: Insulating Glass Production Line
- Condition: New
- Total Power: 3.75 Kw
- Total Weight: 520kg
- Transport Package: Sea Worthy Package
- Origin: Jinan Shangdong
Insulating Glass Machinery Butyle Rubber Extruder Machine
Machine Performance Introducion
1.Automatic control of Nozzle width in application of pneumatic and hydraulic parallel method
2.Possilble to control a precise temperature and 1/100 sec inerval of sensor perception
3. Easily and quickly changeable of spacer width on a consecutive operation
4.Available to select a function for curved spacer, to control and operational height and conveyor belt speed
5.Easily controlable of all functions with Touch Screen and PLC program
6. Possible to control the length of Butyl application and monitoring current production quantity on color Touch Screen

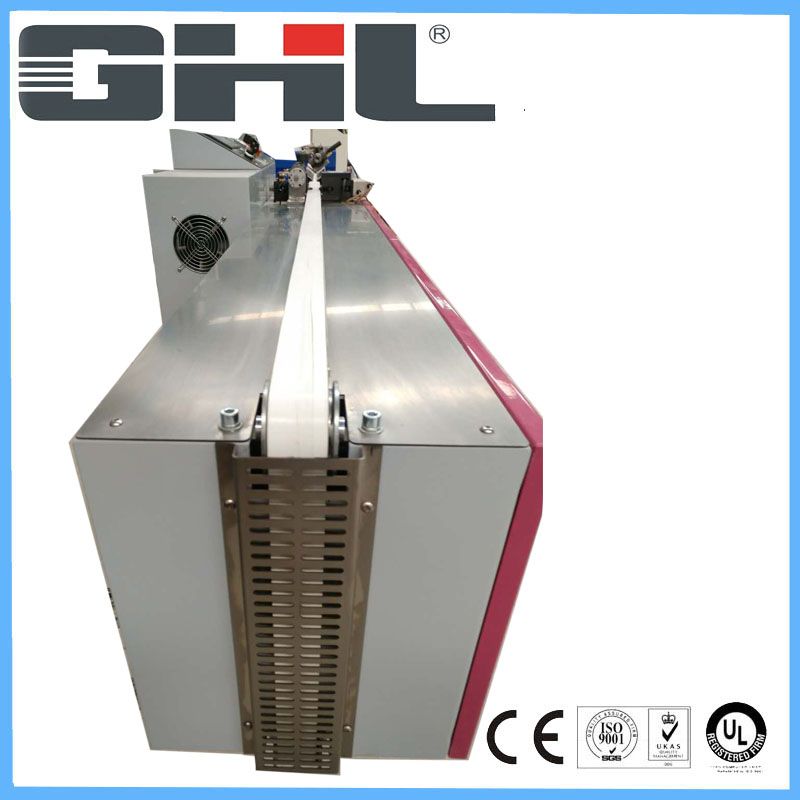

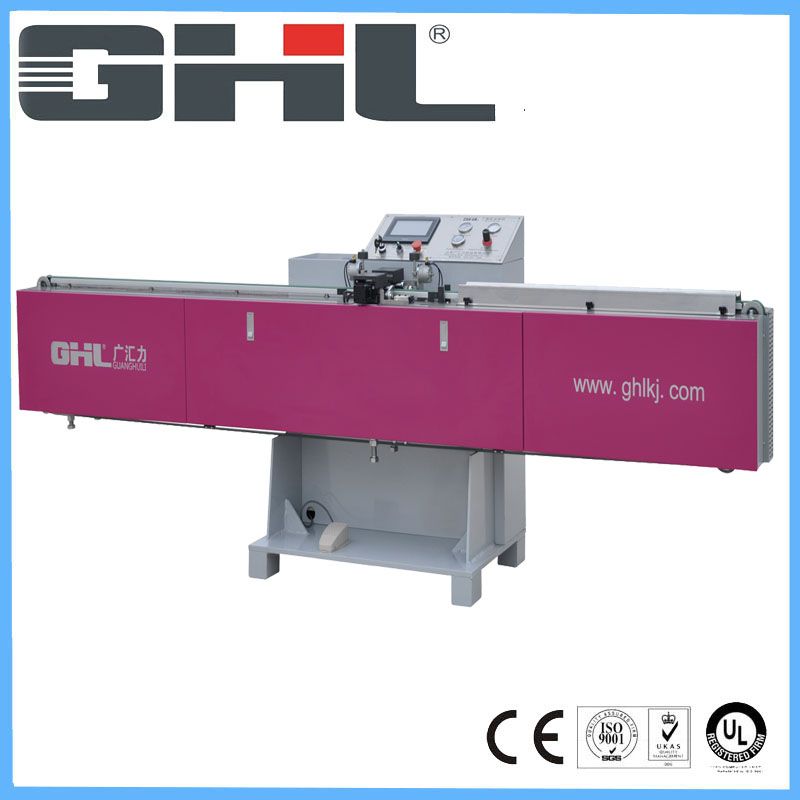

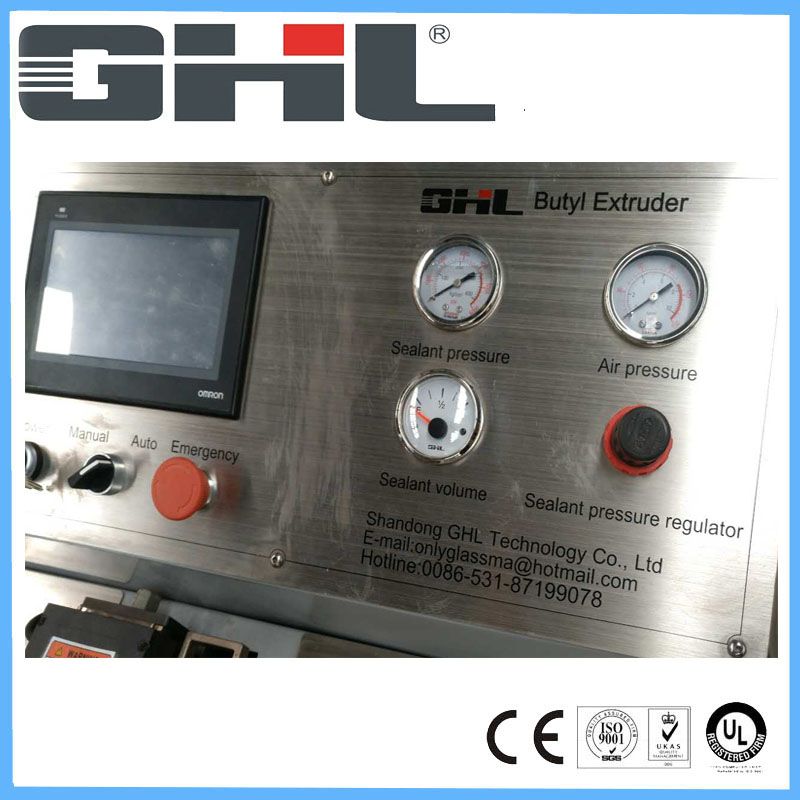

Product display
Main technical parameters
power supply |
380V.50Hz |
total power |
3.75 kw |
air resource pressure |
0.6-0.8 Mpa |
speed of conveyer belt |
4-40m/min |
Overall dimension |
3000*600*950mm |
total weight |
520kg |
