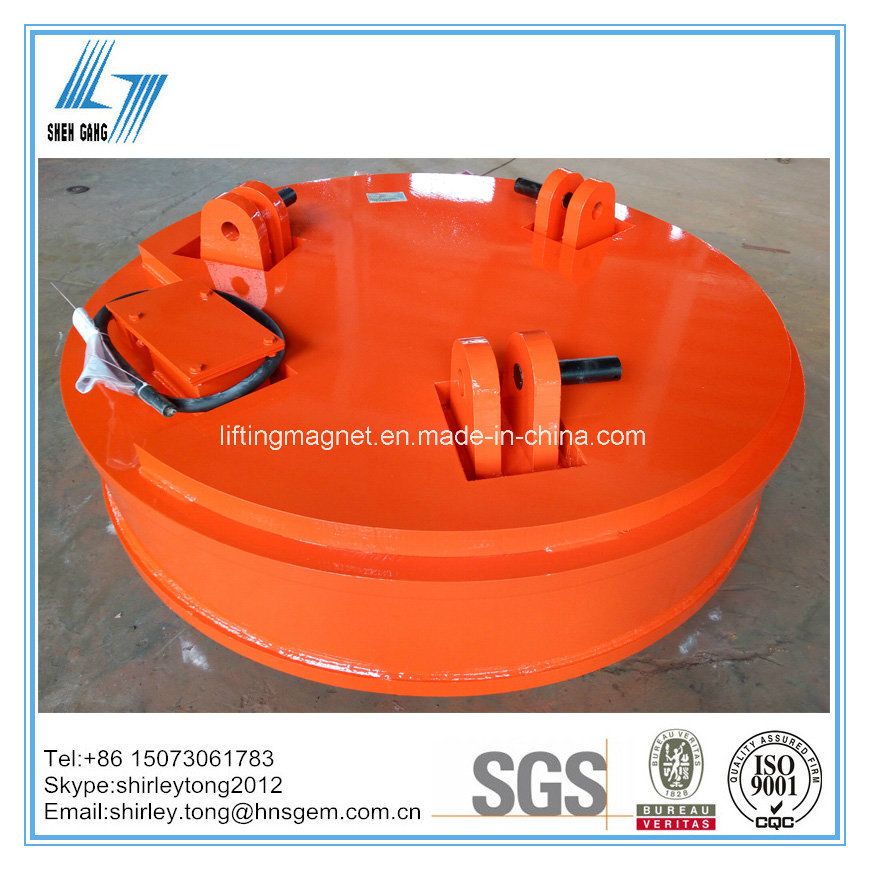

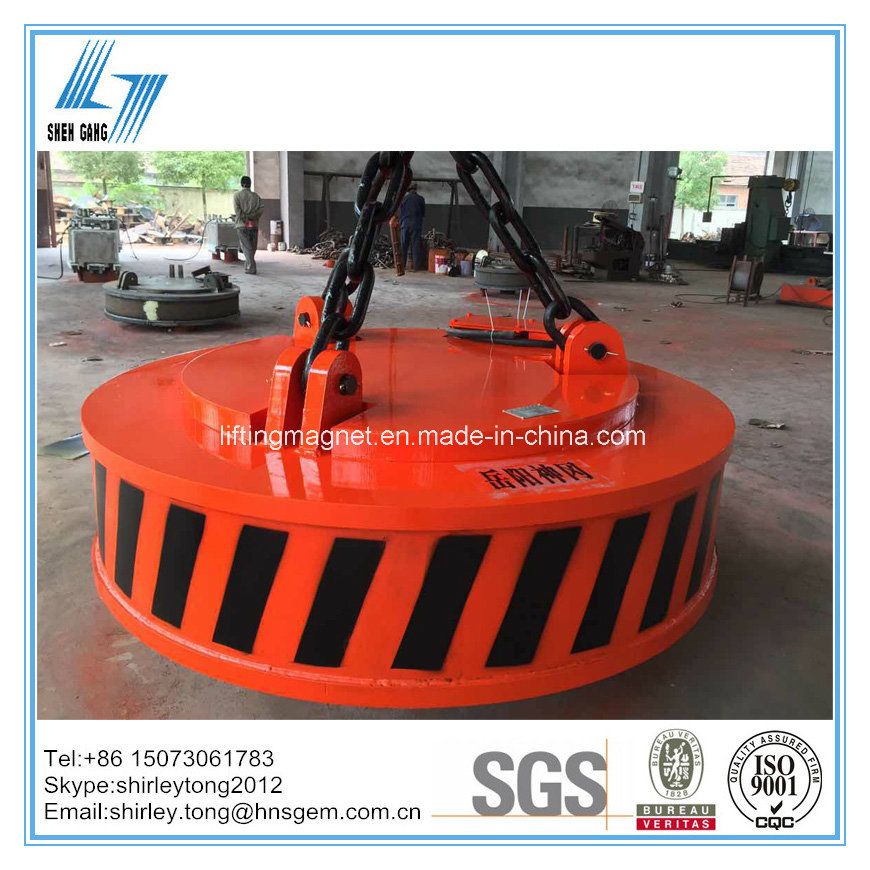

Industrial Circular Type Crane Lifting Electromagnet for Lifting Steel Scraps
$900.00 /piece
Product Details
Transaction Comments
Basic Info
- Model NO.: MW5-180L/1
- Rated Voltage: 220V
- Electric Current: 102A
- Weight: 2010kg
- Lifting Capacity for Steel Ball: 8500kg
- Application: Suitable for Transporting Steel Scraps
- Transport Package: Standard Export Package
- Origin: China
- Shape: Circular/Round
- Duty Cycle: 60%
- Cold-State Power: 22.5kw
- Lifting Capacity for Cast Iron: 2750/2100kg
- Lifting Capacity for Steel Scrap: 1600/1350kg
- Trademark: SHENGANG MAGNET
- Specification: ISO9001: 2008
- HS Code: 85059010
Product Description
Application:
Electromagnet is used for transporting iron scraps,ingots,steel chips,slabs,steel plates and steel sheets.Electromagnet is suitable for installing on excavator,crane;and electromagnet also can be submerged under water,can be used at very high temperature and normal temperature in metallurgical plants,scrap yards and ship-building plants.
Options:
Rated Voltage DC220V;Strong Excitation Type;Overexcitation type.Consists of Lifting Magnet, Cable Reel,Control Cabinet, Cable Connector.
· Lifting Magnet:MW5-130L/1
· Rectification Control Cabinet:DKP-4
· Cable Reel:JTA100-15-2
· Quick Coupling:DKL-50
Features:
75% or 60% Duty Cycle
All welded heavy duty construction
Class H insulation
Powerful deep magnetic field design
Aluminum Coil,Copper Coil optional
Overall dimension drawing and assembly diagram:
Complete set of equipment:
· Lifting magnet
· Spring type cable reel with cable
· Rectifier control cabinet (Normal type,Strong excitation type, Battery back-up type)
· Cable connector / Quick coupling

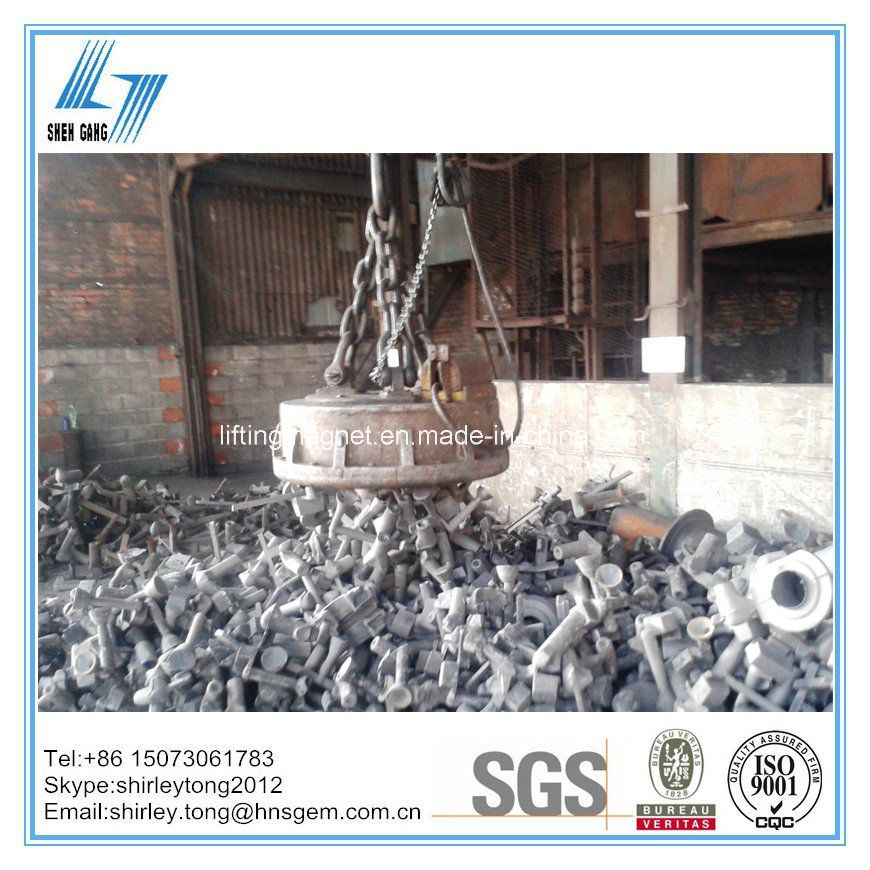

Application Pictures:
About Enquiry:
To help you get the best electro lifting magnet for your application, we should have the following information:
1. What are the materials you want to lift?
For example: Steel scraps, steel billet, ingot, plate, bar or ball. For steel plate, please let us know its dimension (Length×Width×Thickness mm)
2. What's the lifting capacity you expect?
3. What kind of working site does the magnet work? Indoor or outdoor?
4. Kindly provide your power supply information (__V, DC/AC,__Hz), and information for crane (single beam or double beam, single hook or double hook, how about the loading capacity).
(More details, please feel free to contact us directly.)
Technical data:
Customer Visit:
Factory View:
Standard Export Package:
Angle steel welded frame and are fixed with five-layer plywood around the outside to keep safety long-distance transportation;Don't need to be fumigated.
Quick Response:
We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 24 hours.
Please fell free to call us at any time if there is any questions.
Electromagnet is used for transporting iron scraps,ingots,steel chips,slabs,steel plates and steel sheets.Electromagnet is suitable for installing on excavator,crane;and electromagnet also can be submerged under water,can be used at very high temperature and normal temperature in metallurgical plants,scrap yards and ship-building plants.
Options:
Rated Voltage DC220V;Strong Excitation Type;Overexcitation type.Consists of Lifting Magnet, Cable Reel,Control Cabinet, Cable Connector.
· Lifting Magnet:MW5-130L/1
· Rectification Control Cabinet:DKP-4
· Cable Reel:JTA100-15-2
· Quick Coupling:DKL-50
Features:
75% or 60% Duty Cycle
All welded heavy duty construction
Class H insulation
Powerful deep magnetic field design
Aluminum Coil,Copper Coil optional
Overall dimension drawing and assembly diagram:
Complete set of equipment:
· Lifting magnet
· Spring type cable reel with cable
· Rectifier control cabinet (Normal type,Strong excitation type, Battery back-up type)
· Cable connector / Quick coupling
Application Pictures:
About Enquiry:
To help you get the best electro lifting magnet for your application, we should have the following information:
1. What are the materials you want to lift?
For example: Steel scraps, steel billet, ingot, plate, bar or ball. For steel plate, please let us know its dimension (Length×Width×Thickness mm)
2. What's the lifting capacity you expect?
3. What kind of working site does the magnet work? Indoor or outdoor?
4. Kindly provide your power supply information (__V, DC/AC,__Hz), and information for crane (single beam or double beam, single hook or double hook, how about the loading capacity).
(More details, please feel free to contact us directly.)
Technical data:
| Model | Electric current (A) | Cold-state power (kw) | lifting capacity (kg) cold/hot state | Mass (kg) | Overall dimension (mm) | ||||||
| steel ball | cast iron | steel scrap | A | B | C | D | E | ||||
| MW5-70L/1 | 15 | 3.3 | 2500 | 380/200 | 120/100 | 490 | 700 | 800 | 160 | 90 | 30 |
| MW5-80L/1 | 18 | 3.96 | 3000 | 480/250 | 150/300 | 620 | 800 | 800 | 160 | 90 | 30 |
| MW5-90L/1 | 26.6 | 5.9 | 4500 | 650/440 | 250/200 | 800 | 900 | 1090 | 200 | 125 | 40 |
| MW5-110L/1 | 35 | 7.7 | 6500 | 1000/800 | 450/400 | 1350 | 1100 | 1140 | 220 | 150 | 45 |
| MW5-120L/1 | 45.5 | 10 | 7500 | 1300/1000 | 600/500 | 1700 | 1200 | 1100 | 220 | 150 | 45 |
| MW5-130L/1 | 54 | 12 | 8500 | 1400/1100 | 700/600 | 2010 | 1300 | 1240 | 250 | 175 | 50 |
| MW5-150L/1 | 71.2 | 15.6 | 11000 | 1900/1500 | 1100/900 | 2830 | 1500 | 1250 | 350 | 210 | 60 |
| MW5-165L/1 | 75 | 16.5 | 12500 | 2300/1800 | 1300/1100 | 3200 | 1650 | 1590 | 370 | 230 | 75 |
| MW5-180L/1 | 102 | 22.5 | 14500 | 2750/2100 | 1600/1350 | 4230 | 1800 | 1490 | 370 | 230 | 75 |
| MW5-210L/1 | 129 | 28.4 | 21000 | 3500/2800 | 2200/1850 | 7000 | 2100 | 1860 | 400 | 250 | 80 |
| MW5-240L/1 | 154 | 33.9 | 28000 | 4800/3800 | 2850/2250 | 9000 | 2400 | 2020 | 450 | 280 | 90 |
Factory View:
Standard Export Package:
Angle steel welded frame and are fixed with five-layer plywood around the outside to keep safety long-distance transportation;Don't need to be fumigated.
Quick Response:
We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 24 hours.
Please fell free to call us at any time if there is any questions.
