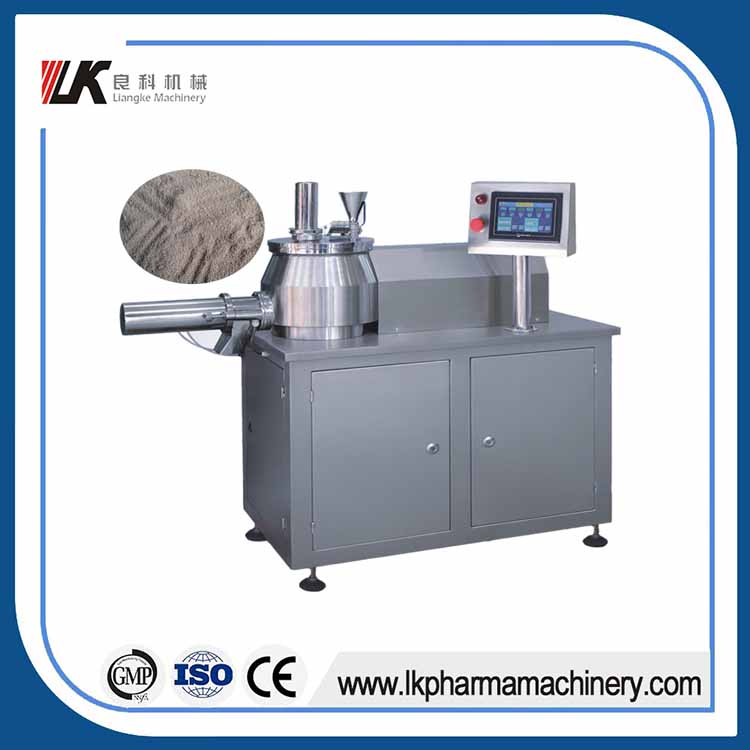

Working principle


1.The whole process consists of two procedures: mixing and granulating.

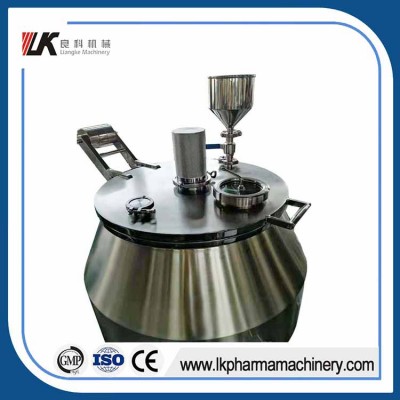

2.The adhesive is charged into the material pot from the conical hopper. Along with the filling of adhesive, the powder raw materials keep rotating in the pot under the action of stirring paddles once the hopper is closed. In the meanwhile, they grow up the shape of liquid bridge under continuous effects of conical wall. Under the action of extrusion, friction as well as kneading by paddles and conical pot wall, all materials gradually turn loose and soft. At last, open the material outlet and the wet granules will be pushed out under the centrifugal force of paddles.

3.The soft materials are granulated via the granulating cutters but not the forced extrusion, which will be cut into tiny and uniform granules under the semi-fluid state, realizing the mutual transformation between two different materials.

Solide Dosage Production Line Process Flow Diagram




Application Examples

1.Mixing powder with powder (high precision and uniform)
2.Granulating powder with adhesive (for dense granules)

Main technical parameters
