GC industrial boiler feed water pump

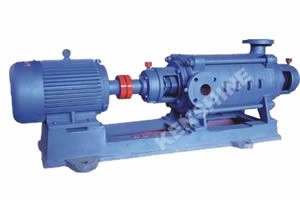

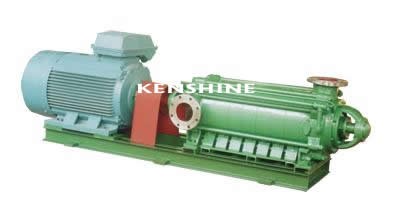

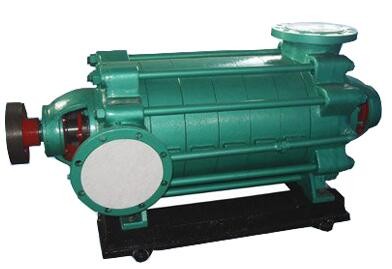

Horizontal multistage centrifugal boiler feed pump
1. GC boiler feed pump is single stage multistage sectional centrifugal pump.
2. It is a high efficiency pump and designed according to the standard JB/T8059 and advanced hydraulic model inland,
3. GC boiler feed pump can deliver clear water and chemical and physical properties liquids that are similar to clear water.
4. The head of the pump is 46-430m,the capacity is 6-55 m3/h.
5. The highest temperature of the liquids should be lower than 110 Celsius degrees.
6. It is applicable to the boiler feeding water and factories and cities water supplying.
Performance Scope:
Capacity:6~55m3/h
Head:46~430m
Motor Power:3~110kw
Standard:JB/T8059-96
| Model | Stage | Capacity | Total head | Speed | Power(KW) | Efficiency | NPSH | Impeller Dia. | Weight | ||
| m3/h | L/S | m | rpm | Shaft | motor | % | m | mm | kg | ||
| 2GC-5 | 2 | 10 | 3 | 64 | 2950 | 4.4 | 7.5 | 39.6 | 4.7 | 166 | 258 |
| 2GC-5 | 3 | 10 | 3 | 96 | 2950 | 6.6 | 11 | 39.6 | 4.7 | 166 | 309 |
| 2GC-5 | 4 | 10 | 3 | 128 | 2950 | 8.8 | 15 | 39.6 | 4.7 | 166 | 389 |
| 2GC-5 | 5 | 10 | 3 | 160 | 2950 | 11 | 15 | 39.6 | 4.7 | 166 | 414 |
| 2GC-5 | 6 | 10 | 3 | 192 | 2950 | 13.2 | 18.5 | 39.6 | 4.7 | 166 | 512 |
| 2GC-5 | 7 | 10 | 3 | 224 | 2950 | 15.4 | 22 | 39.6 | 4.7 | 166 | 531 |
| 2GC-5 | 8 | 10 | 3 | 256 | 2950 | 17.6 | 30 | 39.6 | 4.7 | 166 | 589 |
| 2GC-5 | 9 | 10 | 3 | 288 | 2950 | 19.8 | 30 | 39.6 | 4.7 | 166 |
609 |
