Flat Knitting Machine with Ce
$8000.00 /piece
Product Details
Transaction Comments
Basic Info
- Type: Jacquard
- Knitting Product Type: Sweater
- Knitting Method: Double
- Needle Bar Style: Flatbed Knitting Machine
- Certification: CE
- Product Name: Flat Knitting Machine with Ce
- Knitting Width: 52 Inches , 56 Inches
- Needle Bed: Replaceable Segment Needle Bed
- Yarn Carrier: 2X8 Yarn Carrier
- Transport Package: Wooden Case
- Origin: Zhejiang China
- Knitting Machine Cut: E28
- Knitting Style: Flat
- Needle Style: Compound Needle
- Computerized: Computerized
- Condition: New
- Gauge: 2.5g,3G,5g,7g,8g,9g,10g,12g,14G,16g
- Knitting Speed: Control by Servo Motor , Max 1.2m/S
- Stitch System: 24 Section Stitch Selectable
- Trademark: OPEK, SHNE STAR
- Specification: 2790*1100*500
- HS Code: 844720
Product Description

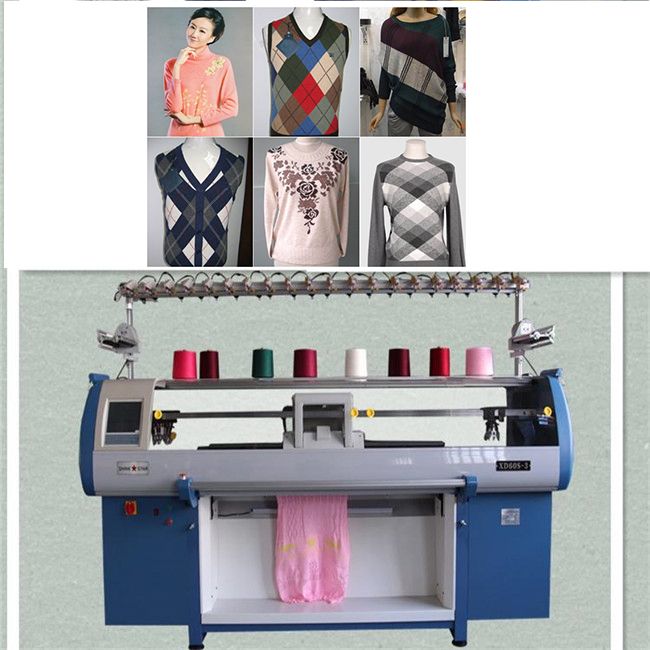

Flat knitting machine with CE
Main Characteristic :
Single Carriage with double cam system , this S-Series computerized flat knitting machine are used digital technology to achieve the patterns of knit ,transfer , tuck , pointel , intarsia , jacquard ,apparent shape, hidden shape , and other regular or irregular patterns knitting functions , can knit basic single or double jersey plain fabric , irregular multi-color jacquard , intarsia , cable and pointel structure patterns , which suitable to knit by yarns of pure silk ,mixed silk , synthetic , wool ,acrylic ,mixed fiber material etc. knitted for shaping fabric and accessories of collar , cardigan ,rib, cuff, scarf ,pocket and trousers etc.
MAIN PARAMETER
Main Characteristic :
Single Carriage with double cam system , this S-Series computerized flat knitting machine are used digital technology to achieve the patterns of knit ,transfer , tuck , pointel , intarsia , jacquard ,apparent shape, hidden shape , and other regular or irregular patterns knitting functions , can knit basic single or double jersey plain fabric , irregular multi-color jacquard , intarsia , cable and pointel structure patterns , which suitable to knit by yarns of pure silk ,mixed silk , synthetic , wool ,acrylic ,mixed fiber material etc. knitted for shaping fabric and accessories of collar , cardigan ,rib, cuff, scarf ,pocket and trousers etc.
MAIN PARAMETER
| Gauge | 2.5G ,3G ,5G, 7G, 8G ,9G ,10G ,12G, 14G, MULTI GAUGE 3-5-7G |
| Knitting width | 52,56 ,60(inches) |
| Knitting function | Knit ,miss,tuck,transfer, pointel, intarsia,jacquard,hide,or apparent shaping and other regular or irregular patterns. |
| Knitting speed | Controlled by servo motor, 24 sections speed optional, max 1.2M/S.varies according to gauge and knitting condition . |
| Knitting system | Single carriage with double system |
| Needle bed | Replaceable segment needle bed |
| Take down roller | Programmed instruction,controlled by marching motor, changeable 24 levels and selectable scope: 0-99. |
| Transfer | Combined cam box single or double system can work independently and one system can transfer the stitch While the other system keeps knitting. |
| Racking | Controlled by servo motor racking within 2 inches and with fine adjusting function. |
| Protection | The machine will automatically alarm if yarn-breaking knots floating yarn rewind end of knitting, fail of racking needle breakage error programming occur. |
| Stitch system | Controlled by stepping motor, 24 section stitch selectable, adjustable scope supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled. |
| Encoder | Advanced encoder adopted. |
| Yam carrier | 2×8 Yarn carriers on each side of 4 guide rails, shiftable on any needle position(special instarsia carriers available). |
| Sinker system | Controlled by stepping motor, adjustable to different knitwear, have various results of shaping and patterns. |
| Power | Singe-phase 220V, adopts advanced CMOS technology, having memorizing function at power shock stop. |

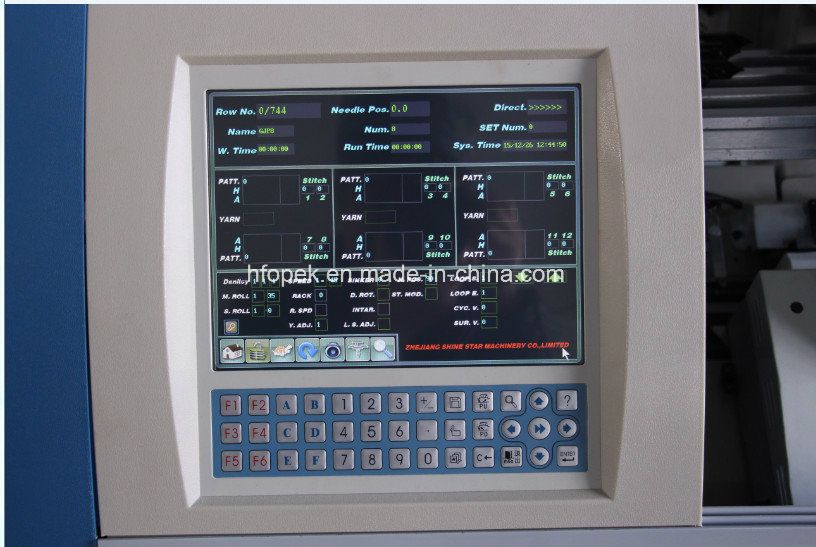

| Controller | 1. Screen:Adopt LCD industrial screen and figure interface,input device:USB. Internal storage 32M.The latest system 1G. A great amount of design files can be stored at the same time and they can be fetched out for using at any time as per production requirements. |
| 2. Monitoring menu,each kind of operating parameter can be shown, and they can be adjusted at any time when the machine is running is visual and easy to understand and upgrade. | |
| 3. Free design is visual and easy to understand and upgrade | |
|
4.Multi language version :there are Chinese .English and Arabic etc. languages version ,the other language version set up shall according to customers requirement . | |
| Volume and weight | Length×width×height: 2790×1100×1500mm Net weight :1280kg |
